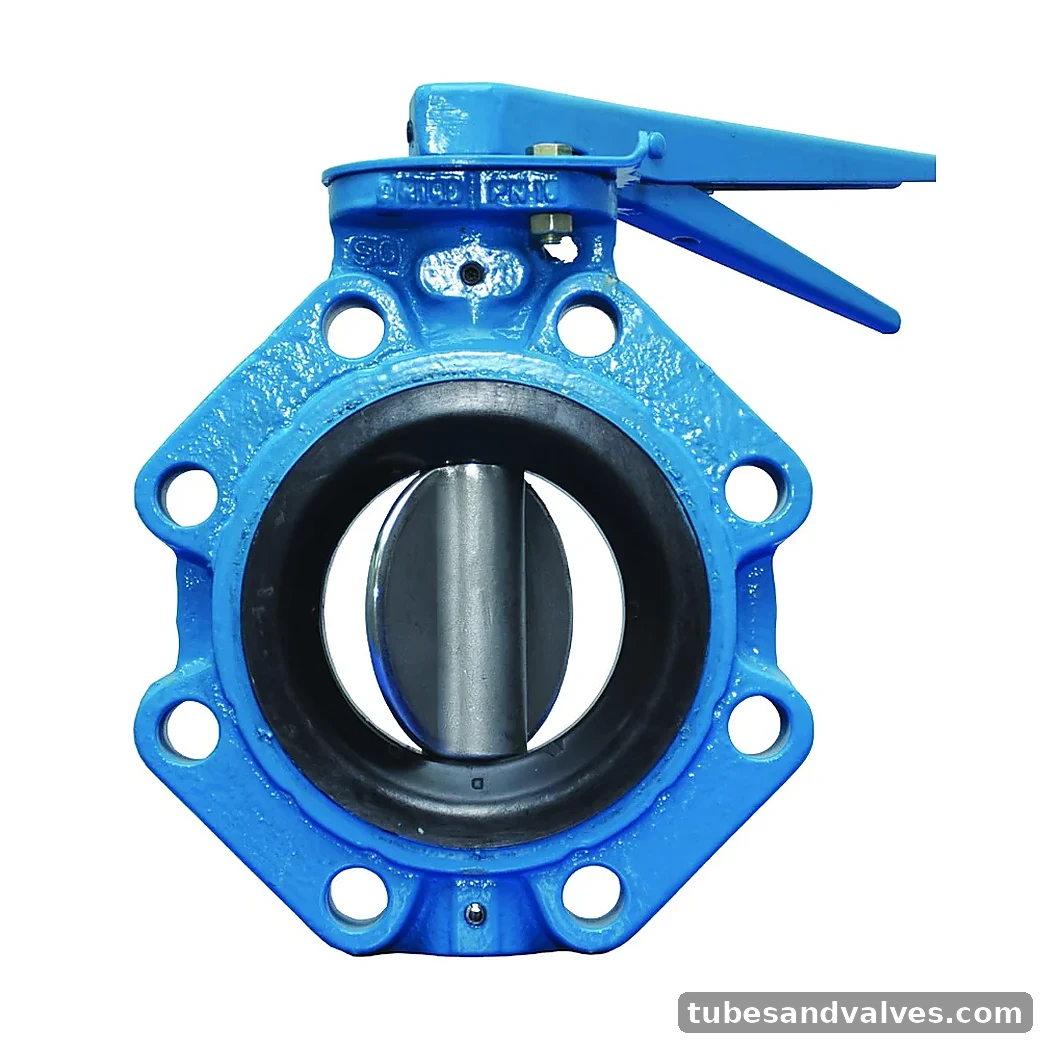

AUDCO PN20 Butterfly Valve - SG Iron, EPDM, SG Iron coated with nylon, Gear unit
AUDCO PN20 wafer butterfly valve with an integrally moulded elastomer body liner, vulcanised in-situ and bonded directly to the body. The catalogue describes integral gasket sealing, secondary moulded O-ring shaft sealing and a weatherseal. Catalogue code GBG3JS decodes to a SG Iron body, wafer flangeless, gear unit, EPDM liner, SG Iron coated with nylon disc and Stainless Steel 410 with PTFE coating shaft. Please confirm current availability and final quoted specification before ordering.
Available Size / Variant
DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300, DN350, DN400, DN450, DN500, DN600
Brand / MakeAUDCO
Product FamilyButterfly Valve
MaterialSG Iron
AUDCO Catalogue Technical Data
Technical data below is carried from the supplied manufacturer catalogue file. Please confirm current availability and final quoted specification before ordering.
Catalogue ModelGBG3JS
Pressure classPN20
Body materialSG Iron
Body styleWafer flangeless
OperationGear unit
Body linerEPDM
Disc materialSG Iron coated with nylon
Shaft materialStainless Steel 410 with PTFE coating
Valve design standardsEN 593
SpecificationAPI 609
SpecificationMSS SP-67
Pressure testing standardEN 12266-1
Available sizesDN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300, DN350, DN400, DN450, DN500, DN600
