FORGED STEEL Gate valve Class 800 (FULL BORE) — All Sizes & Price Enquiry

You opened 1/2" · original catalogue SKU TV-04781-S03. The same product model is available in 6 size variants below.

Open the main grouped product URL · All product models

FORGED STEEL Gate valve Class 800 (FULL BORE)
TVM-GRP-F916CD87 · VS

FORGED STEEL Gate valve Class 800 (FULL BORE)

Gate Valve · 6 sizes in this product model

Body Material: Carbon / Forged SteelStandard: API 602 / BS EN ISO 15761 (BS 5352)Pressure Class: Class 800Connection: BSPT / NPT female; Socket Weld to ANSI B16.11
Price update: quotation on request · Confirm availability and applicable trade discount
Size (mm / Inch)Price / Rate (₹)QtyEnquiry
15mm (1/2")Request Quote
20mm (3/4")Request Quote
32mm (1 1/4")Request Quote
40mm (1 1/2")Request Quote
1/2"Request Quote
3/8"Request Quote

Select any size. Each original SKU is retained for accurate enquiries.

★★★★☆ 4.44 / 5 · 18 approved reviews

“Replaced an older fitting with 2 inch Forged Steel Gate Valve in our cooling tower circuit — delivery and proforma billing were smooth; component meets catalogue specs well.”

— Subhash Karunakaran

Buying Guide — FORGED STEEL Gate valve Class 800 (FULL BORE)

Material, standard, class and certification

Confirm the exact manufacturer grade, rating and end connection before purchase. IBR/MTC documentation is supplied only if applicable and verified.

Dimensions and commercial terms

Actual OD, thickness, PCD and testing pressure are subject to verified technical drawings. Request quotation for price, GST, packing, freight and delivery.

Original SKU TV-04781-S03 — original specifications, individual reviews and tools

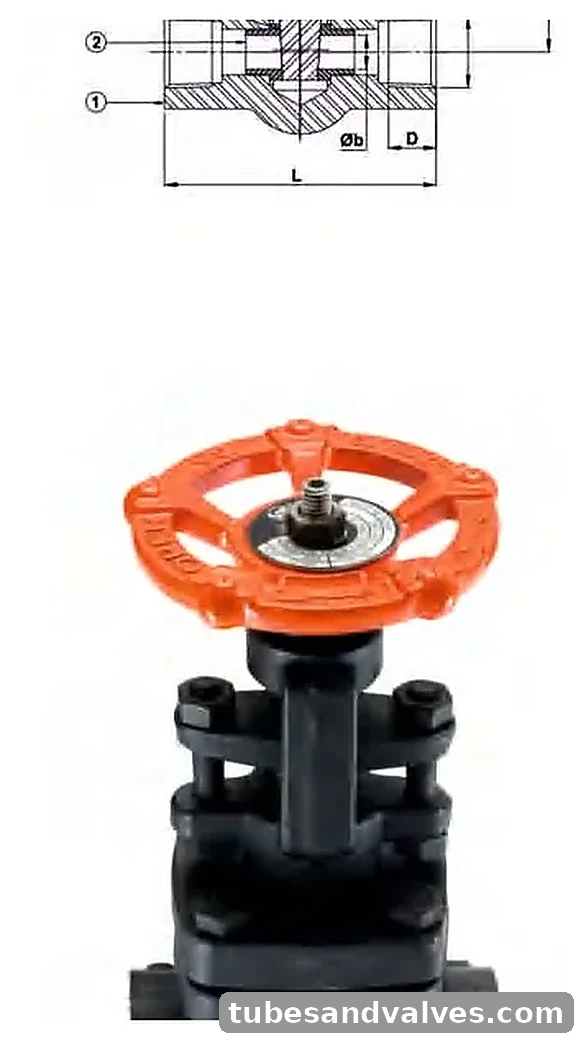

FORGED STEEL Gate valve Class 800 (FULL BORE) product image
Industrial Valves / Gate Valve

FORGED STEEL Gate valve Class 800 (FULL BORE) - 1/2"

About this exact size

FORGED STEEL Gate valve Class 800 (FULL BORE) - 1/2" is listed in our Gate Valve catalogue with Carbon / Forged Steel, API 602 / BS EN ISO 15761 (BS 5352), Class 800, BSPT / NPT female; Socket Weld to ANSI B16.11. Please confirm current availability and the final applicable specification in our quotation before ordering.

Published catalogue record

FORGED STEEL Gate valve Class 800 (FULL BORE) - 1/2" is listed in our Gate Valve catalogue with Carbon / Forged Steel, API 602 / BS EN ISO 15761 (BS 5352), Class 800, BSPT / NPT female; Socket Weld to ANSI B16.11. Please confirm current availability and the final applicable specification in our quotation before ordering.

Brand / MakeVS
Product TypeGate Valve
Size1/2"
MaterialCarbon / Forged Steel
Standard / SpecificationAPI 602 / BS EN ISO 15761 (BS 5352)
Pressure / RatingClass 800
End ConnectionBSPT / NPT female; Socket Weld to ANSI B16.11

FORGED STEEL Gate valve Class 800 (FULL BORE) is listed in the Gate Valve family under Industrial Valves. Brand / make: VS. Material: Carbon / Forged Steel. Rating: Class 800. Please confirm current availability, final technical specification and commercial terms in the quotation before ordering.

Available Size / Variant

1/2"15mm (1/2")20mm (3/4")3/8"32mm (1 1/4")40mm (1 1/2")Confirm size with quotation

Size1/2"
Brand / MakeVS
Catalogue ModelVSV-1003
Product FamilyGate Valve
MaterialCarbon / Forged Steel
Pressure / RatingClass 800

VS Catalogue Technical Data

Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.

Catalogue ModelVSV-1003
Design StandardAPI 602 / BS EN ISO 15761 (BS 5352)
Pressure ClassClass 800
BoreFull Bore
End ConnectionsBSPT / NPT female; Socket Weld to ANSI B16.11
Test PressureShell hydrostatic 207 bar (3000 psig); Seat & Back Seat hydrostatic 152 bar (2200 psig); Seat pneumatic 6.9 bar (100 psig)
Maximum Working Temperature425°C
Suitable ForSteam; Water; Oil; Air; Gas
MaterialsBody: ASTM A105; Seat Ring: F6a 13% Cr / Stainless Steel ASTM A276 Type 410; Gasket: Spiral Wound Stainless Steel Type 316, graphite filled; Bonnet: ASTM A105; Studs: ASTM A193 Gr B7; Packing: Graphite moulded rings with braided top/bottom rings; Gland: A182 F6a 13% Cr / Stainless Steel Type 410 ASTM A276; Gland Flange: ASTM A105; Nuts: ASTM A194 Gr 2H; Stem: ASTM A276 Type 410; Yoke Sleeve: ASTM A582 Type 416; Hand Wheel: SG Iron / Steel; Hand Wheel Retaining Nut: Carbon Steel; Identification Plate: Aluminium (anodised); Wedge: F6a 13% Cr / Stainless Steel ASTM A276 Type 410
Source Page75

View Product / Model Overview

Quotation Status: Price & availability on request for this exact specification.
Since 1980Industrial supply experience10,000+ CustomersServed across industriesPAN IndiaDispatch support

1/2" Product & Ordering Details

Exact Size1/2"
Brand / MakeVS
Model / ReferenceVSV-1003
MaterialCarbon / Forged Steel
Pressure / RatingClass 800
StandardAPI 602 / BS EN ISO 15761 (BS 5352)
End ConnectionBSPT / NPT female; Socket Weld to ANSI B16.11

This page is specifically for the 1/2" variant. Confirm quantity and delivery PIN code in your enquiry so the quotation is matched to this exact size, model, material and pressure specification.

View VS products · View Industrial Valves

Related Sizes

Find in Product Finder WhatsApp Enquiry

CUSTOMER FEEDBACK

Customer Reviews

Customer-submitted reviews approved for publication.

4.3/5★★★★☆3 approved customer reviews
Reliable Gate Valve (TV-04781) matching catalogue specs★★★★☆

Replaced an older fitting with 2 inch Forged Steel Gate Valve in our cooling tower circuit — delivery and proforma billing were smooth; component meets catalogue specs well.

Subhash Karunakaran ·

Reliable Gate Valve (TV-04781) matching catalogue specs★★★★☆

Sourced 2 inch Forged Steel Gate Valve for our boiler feedwater circuit and fair dealer pricing and timely dispatch from Chennai without follow-up hassles.

Rajeev Kapoor ·

Excellent Gate Valve (TV-04781) quality and prompt dispatch★★★★★

Used 2 inch Forged Steel Gate Valve in our fire hydrant network — dimensionally accurate face-to-face and thread/flange fit made installation effortless.

Alok Grover ·

Submit a Product Review Review Policy

Reviews are associated with this specific product listing. Approval indicates editorial moderation, not independent purchase verification.
