About this exact size
This page is for the 3/8" variant of VS FORGED STEEL GLOBE VALVE Class 800 (FULL BORE). Confirm model, material, pressure/rating, end connection, standard, quantity and delivery location in your RFQ so the quotation matches this exact size.

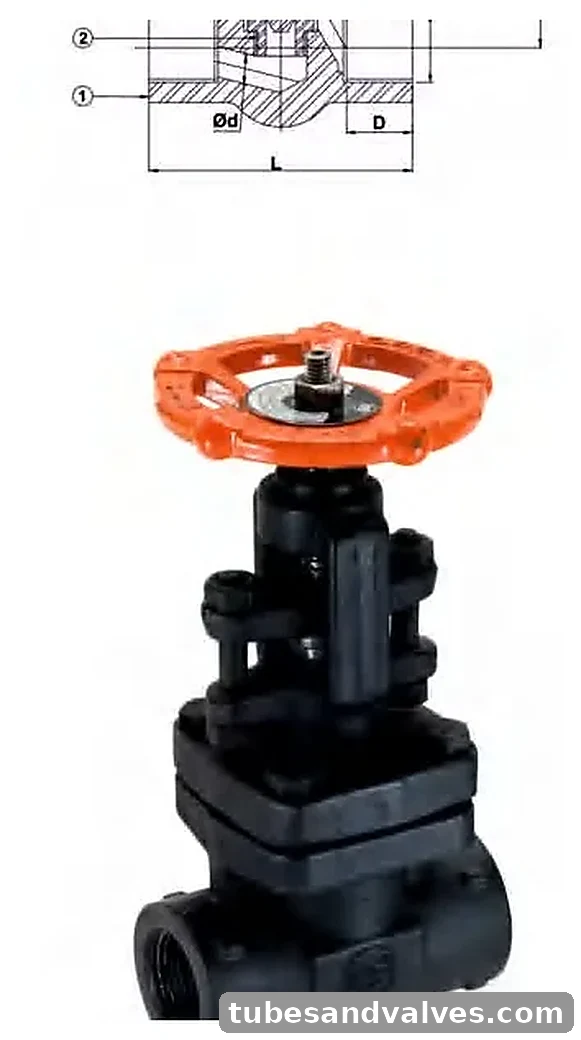

FORGED STEEL GLOBE VALVE Class 800 (FULL BORE) is listed in the Globe Valve family under Industrial Valves. Brand / make: VS. Material: Carbon / Forged Steel. Rating: Class 800. Please confirm current availability, final technical specification and commercial terms in the quotation before ordering.
Size3/8"
Brand / MakeVS
Catalogue ModelVSV-1001
Product FamilyGlobe Valve
MaterialCarbon / Forged Steel
Pressure / RatingClass 800
VS Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Catalogue ModelVSV-1001
Design StandardAPI 602 / BS EN ISO 15761 (BS 5352)
Pressure ClassClass 800
BoreFull Bore
End ConnectionsBSPT / NPT female; Socket Weld to ANSI B16.11
Test PressureShell hydrostatic 207 bar (3000 psig); Seat & Back Seat hydrostatic 152 bar (2200 psig); Seat pneumatic 6.9 bar (100 psig)
Maximum Working Temperature425°C
Suitable ForSteam; Water; Oil; Air; Gas
MaterialsBody: ASTM A105; Seat Ring: F6a 13% Cr / Stainless Steel ASTM A276 Type 410; Gasket: Spiral Wound Stainless Steel Type 316, graphite filled; Bonnet: ASTM A105; Studs: ASTM A193 Gr B7; Packing: Graphite moulded rings with braided top/bottom rings; Gland: A182 F6a 13% Cr / Stainless Steel Type 410 ASTM A276; Gland Flange: ASTM A105; Nuts: ASTM A194 Gr 2H; Stem: ASTM A276 Type 410; Yoke Sleeve: ASTM A582 Type 416; Hand Wheel: SG Iron / Steel; Hand Wheel Retaining Nut: Carbon Steel; Identification Plate: Aluminium (anodised); Plug Disc: F6a 13% Cr / Stainless Steel ASTM A276 Type 410
Source Page73
3/8" Product & Ordering Details
Exact Size3/8"
Brand / MakeVS
Model / ReferenceVSV-1001
MaterialCarbon / Forged Steel
Pressure / RatingClass 800
StandardAPI 602 / BS EN ISO 15761 (BS 5352)
End ConnectionBSPT / NPT female; Socket Weld to ANSI B16.11
This page is specifically for the 3/8" variant. Confirm quantity and delivery PIN code in your enquiry so the quotation is matched to this exact size, model, material and pressure specification.
