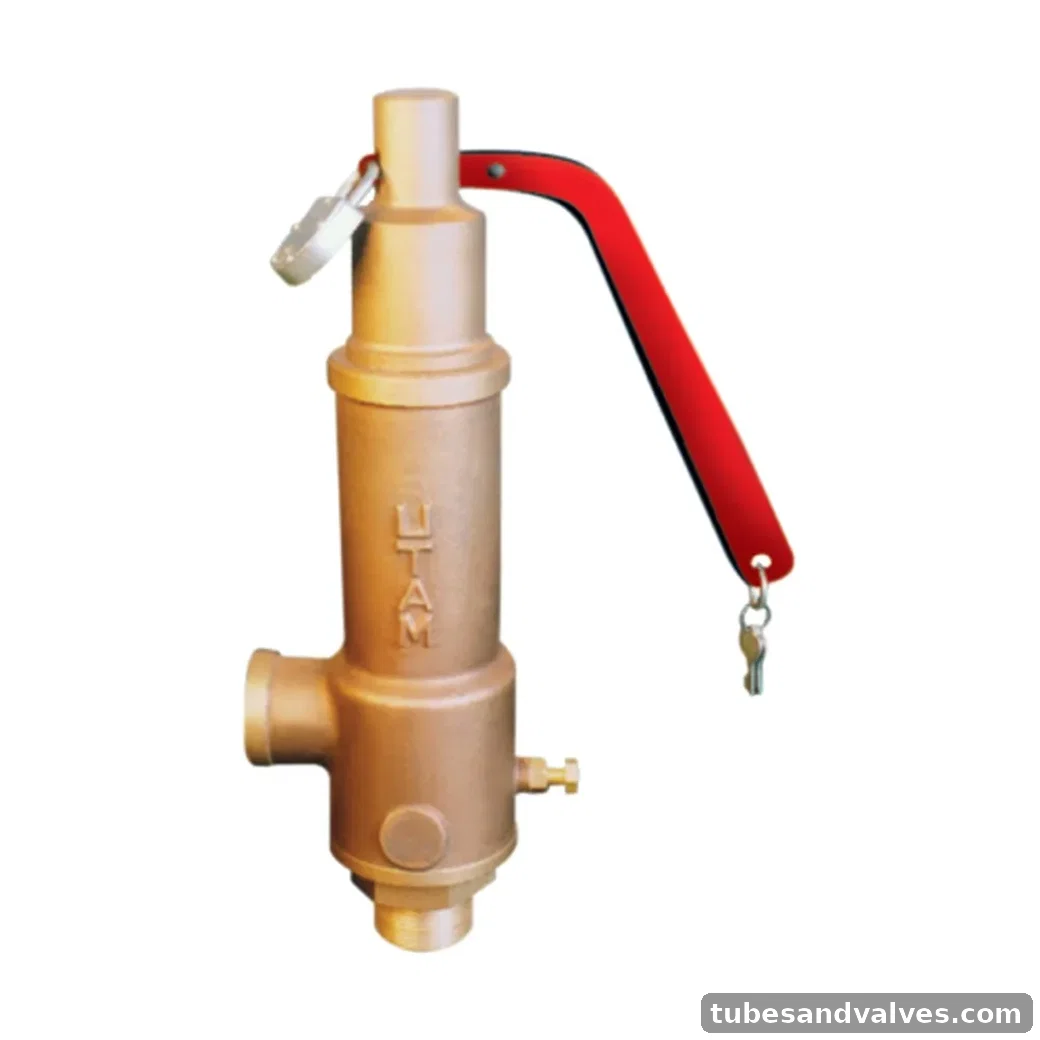

UTAM UV-139-S SAFETY VALVE
UTAM UV-139-S SAFETY VALVE. SAFETY VALVE. Pop Type, Spring Loaded, Enclosed Discharge. Rating: Max. BOP 17.24 Bar at 225°C.. Body/material: Bronze. End connection: Screwed.
Available Size / Variant
Confirm size with quotation
Brand / MakeUTAM
Catalogue ModelUV-139-S
Product FamilySafety / Relief Valve
MaterialBronze
Pressure / RatingMax. BOP 17.24 Bar at 225°C.
End ConnectionScrewed
UTAM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Type of PatternRight Angle Pattern
Body Material / StandardBronze (IBR Clause 282 (a) (IV) Gr.B)
Type of SeatRenewable Seat
Type of DiscRenewable Disc
TrimCu-Alloy
End DetailsInlet End: Screwed Male BSP Parallel Threads to BS:21 Outlet: Screwed Female BSP Parallel Threads to BS:21
Working PressureMax. BOP 17.24 Bar at 225°C.
Test PressureShell Test Pressure 34.5 Bar Hyd.
CertificationIBR Certified
