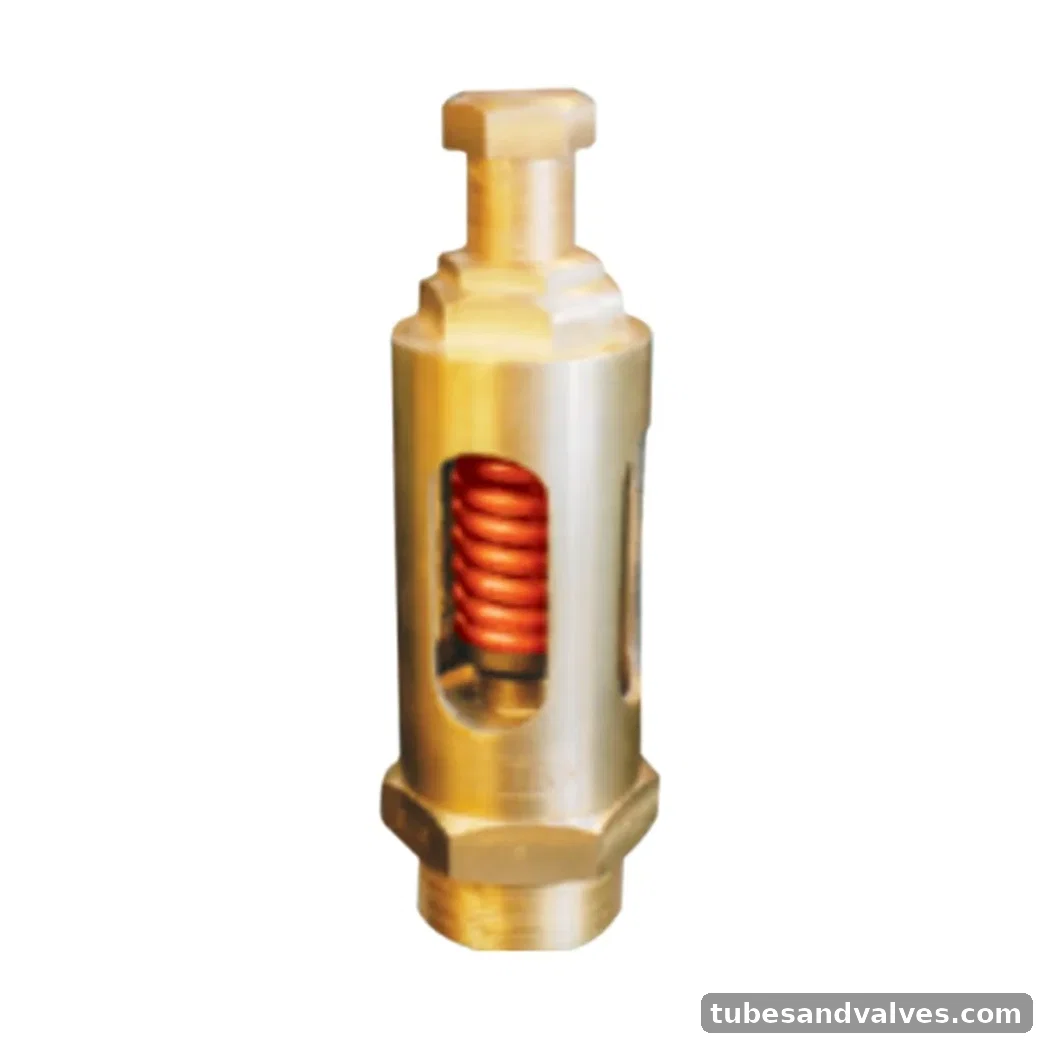

UTAM UV-36-S RELIEF VALVE
UTAM UV-36-S RELIEF VALVE. RELIEF VALVE. Spring Loaded, Open Discharge. Rating: Max. 150 Psig (10.34 Bar) Water or Air. Body/material: Gun Metal. End connection: Screwed.
Available Size / Variant
Confirm size with quotation
Brand / MakeUTAM
Catalogue ModelUV-36-S
Product FamilySafety / Relief Valve
MaterialGun Metal
Pressure / RatingMax. 150 Psig (10.34 Bar) Water or Air
End ConnectionScrewed
UTAM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Type of PatternStraight Type
Body Material / StandardGM (BS:1400 LG2)
Product DescriptionSpring Loaded, Open Discharge
Type of SeatIntegral Seat
Type of DiscRenewable Disc
TrimCu-Alloy
End DetailsScrewed Male BSP Parallel Threads to BS:21
Working PressureMax. 150 Psig (10.34 Bar) Water or Air
Test PressureShell test 300 Psig (20.7 Bar) Hyd.
