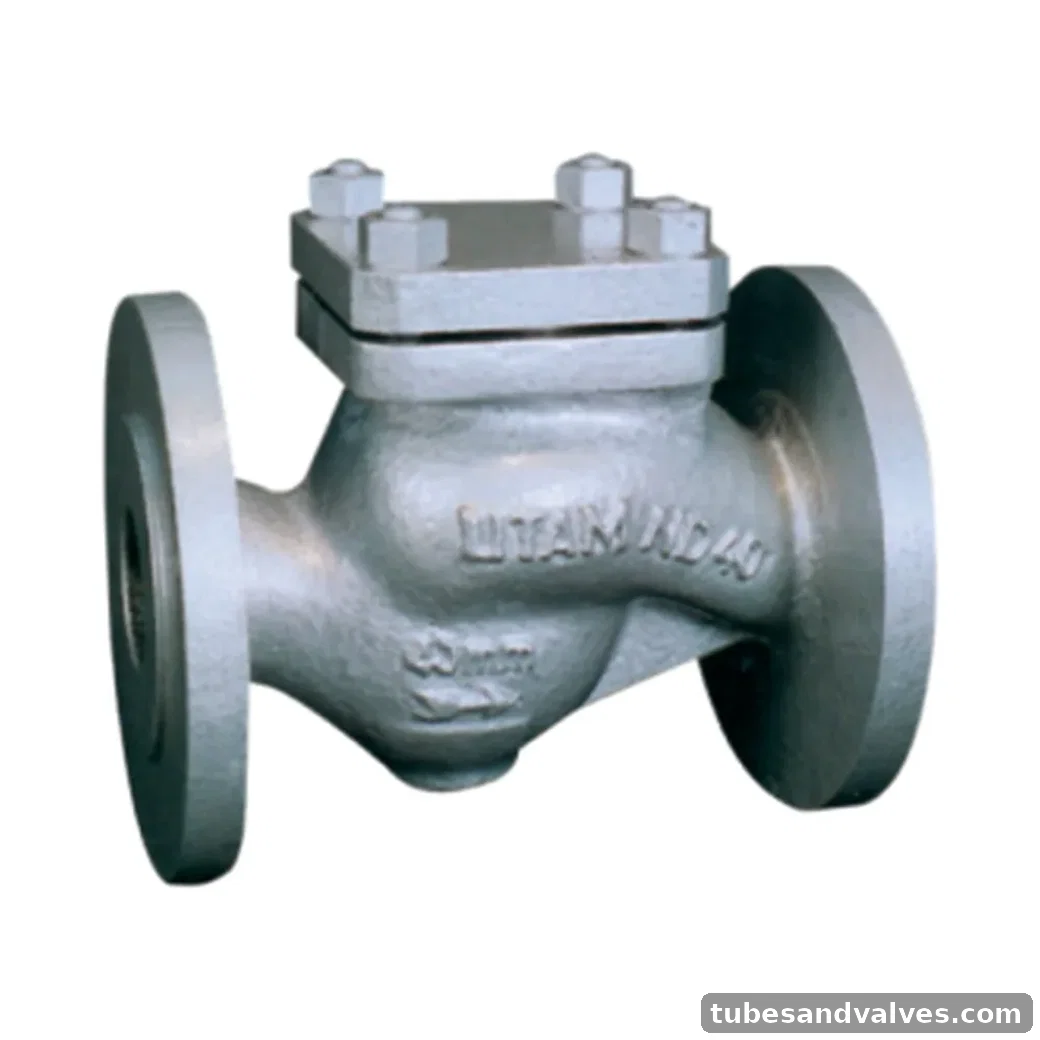

UTAM UV-252-S HORIZONTAL LIFT CHECK VALVE
UTAM UV-252-S HORIZONTAL LIFT CHECK VALVE. HORIZONTAL LIFT CHECK VALVE. Bolted Cover. Rating: PN-40 Body Material cum Standard,- Cast Carbon Steel (IBR Clause 73 to 80 Gr.B) (ASTM A216 Gr.WCB). End connection: Flanged.
Available Size / Variant
Confirm size with quotation
Brand / MakeUTAM
Catalogue ModelUV-252-S
Product FamilyCheck Valve / NRV
Pressure / RatingPN-40 Body Material cum Standard,- Cast Carbon Steel (IBR Clause 73 to 80 Gr.B) (ASTM A216 Gr.WCB)
StandardBS:5160/DIN:2401
End ConnectionFlanged
UTAM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Type of PatternStraight Pattern
Product StandardBS:5160/DIN:2401
Pressure/Class RatingPN-40 Body Material cum Standard,- Cast Carbon Steel (IBR Clause 73 to 80 Gr.B) (ASTM A216 Gr.WCB)
Type of SeatRenewable Seat
TrimSS (ASTM A216 Type 410)
End DetailsFlanges as per DIN:2445 PN-40 RF (Undrilled)
Test PressureB.T.P. 60 Bar Hyd. S.T.P. 40 Bar Hyd.
Maximum Working Temperature425° C
CertificationIBR Certified
