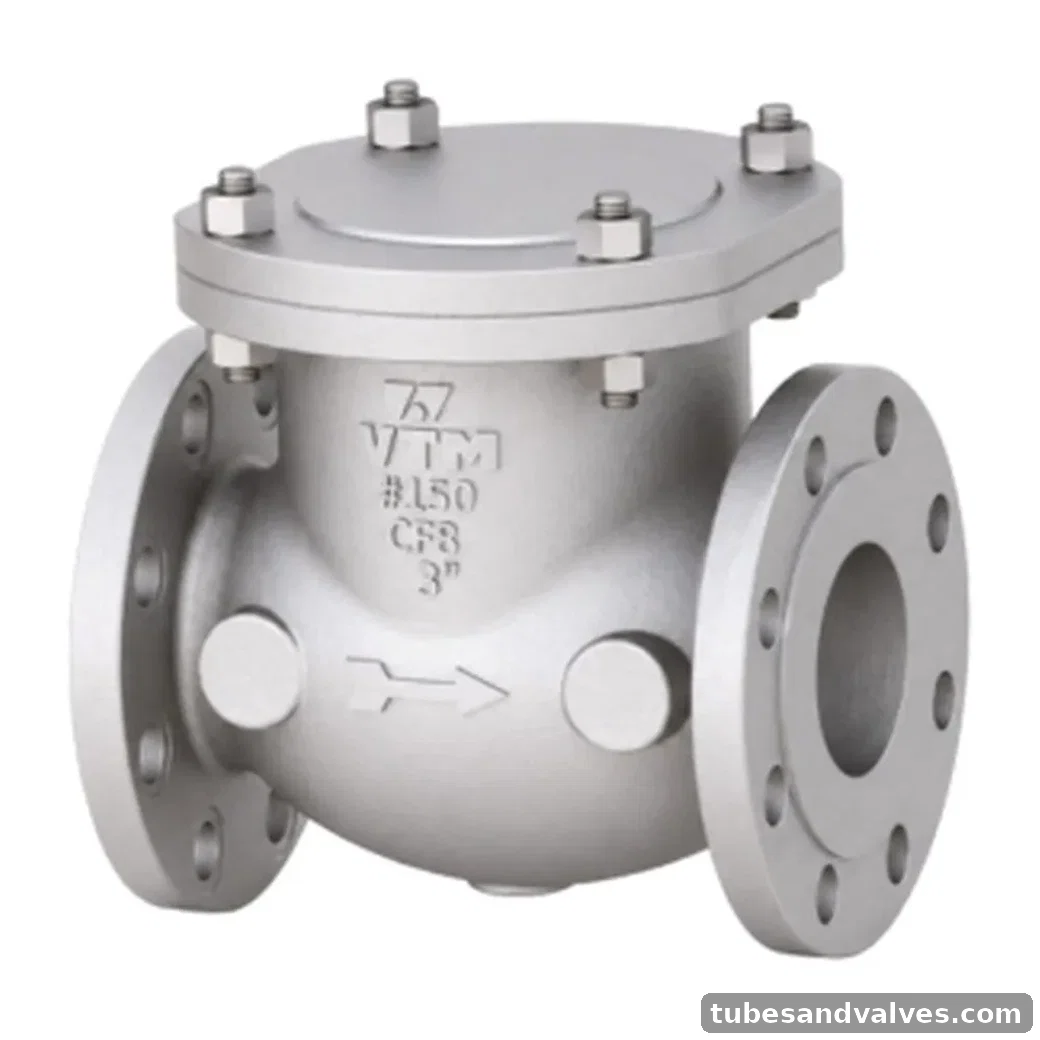

VTM VA-13002 CF8M (SS 316) SWING CHECK VALVE F/E
VTM VA-13002 CF8M (SS 316) SWING CHECK VALVE F/E. CF8M (SS 316) SWING CHECK VALVE F/E. Rating: Class 150. Body/material: Stainless Steel 316 / CF8M. End connection: Flanged.
Available Size / Variant
Confirm size with quotation
Brand / MakeVTM
Catalogue ModelVA-13002
Product FamilyCheck Valve / NRV
MaterialStainless Steel 316 / CF8M
Pressure / RatingClass 150
StandardAPI 6D / BS 1868
End ConnectionFlanged
VTM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Product StandardAPI 6D / BS 1868
Pressure/Class RatingClass 150
Body Material / StandardCast Stainless Steel (ASTM A351 Gr. CF8M)
TrimStainless Steel (ASTM A276 Gr. 316)
End DetailsFlanges Drilled to ASME B16.5 #150
Test PressureShell: 30.0 Kg/cm² Hyd.
Seat22.0 Kg/cm² Hyd.
