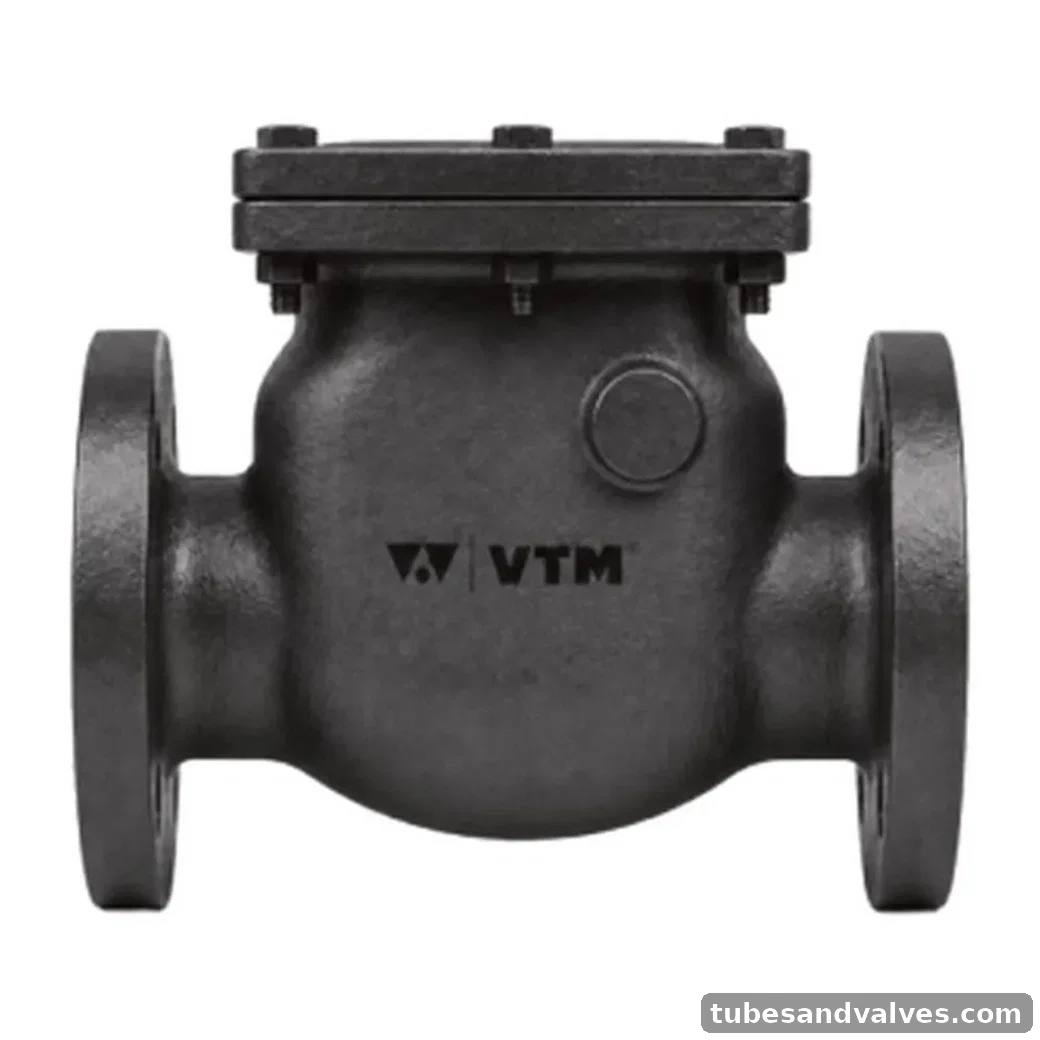

VTM VA-25 C.I. REFLUX TYPE SWING CHECK VALVE F/E
VTM VA-25 C.I. REFLUX TYPE SWING CHECK VALVE F/E. C.I. REFLUX TYPE SWING CHECK VALVE F/E. Rating: PN16. Body/material: Cast Iron. End connection: Flanged.
Available Size / Variant
Confirm size with quotation
Brand / MakeVTM
Catalogue ModelVA-25
Product FamilyCheck Valve / NRV
MaterialCast Iron
Pressure / RatingPN16
Standard1S 5312
End ConnectionFlanged
VTM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Product Standard1S 5312
Pressure/Class RatingPN16
Body Material / StandardCast Iron (IS 210 Gr. FG220)
Type of DiscCast Iron (IS 210 Gr. FG220) with Rubber Lining
TrimStainless Steel (ASTM A276 Gr. 410)
SeatRing Bronze (IS318 Gr. LTB2/BS1400 Gr. LG2) / 18.0 Kg/cm² Hyd. 7 Kg/cm² Air.
End DetailsFlanges Drilled as per ASME B16.5 #150 / BS 10 Table D/E / BS 1092 PN10/16
Test PressureShell: 24.5 Kg/cm² Hyd.
