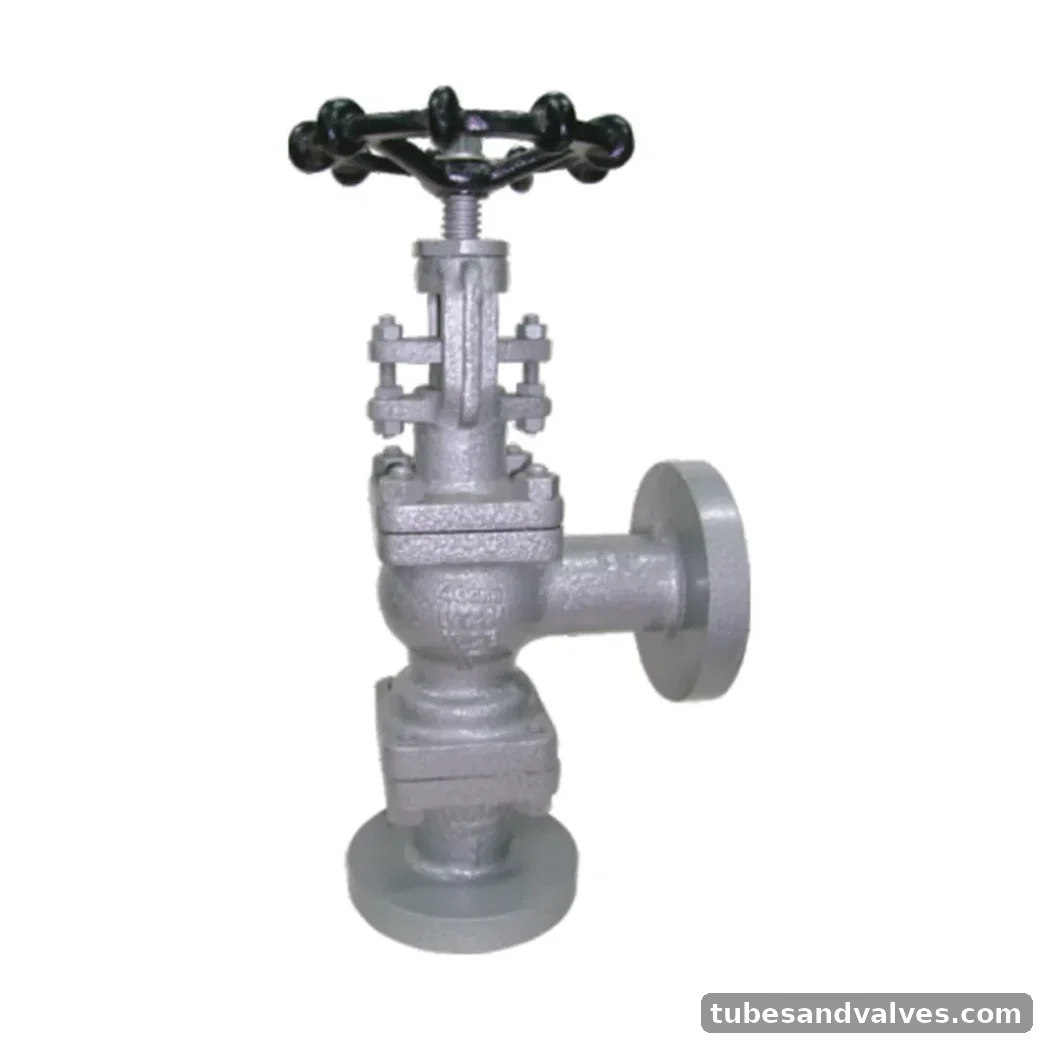

UTAM UV-276-S ACCESSIBLE FEED CHECK VALVE
UTAM UV-276-S ACCESSIBLE FEED CHECK VALVE. ACCESSIBLE FEED CHECK VALVE. Without Inspection Branch,Straight Inlet. Rating: Max. BOP 24.61 Bar at 425°C. Body/material: Cast Steel / WCB. End connection: Flanged.
Available Size / Variant
Confirm size with quotation
Brand / MakeUTAM
Catalogue ModelUV-276-S
Product FamilyCheck Valve / NRV
MaterialCast Steel / WCB
Pressure / RatingMax. BOP 24.61 Bar at 425°C
End ConnectionFlanged
UTAM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Type of PatternAngle Pattern
Body Material / StandardCast Carbon Steel (IBR Clause 73 to 80 Gr.B) (ASTM A 216 Gr.WCB)
Type of SeatRenewable Seat
Type of DiscRenewable Disc
TrimSS(ASTM A 276 Type 410)
End DetailsFlanges as per BS:10 Table-J (Undrilled)
Working PressureMax. BOP 24.61 Bar at 425°C
Test PressureTest to 48.3 Bar Hyd.
CertificationIBR Certified
