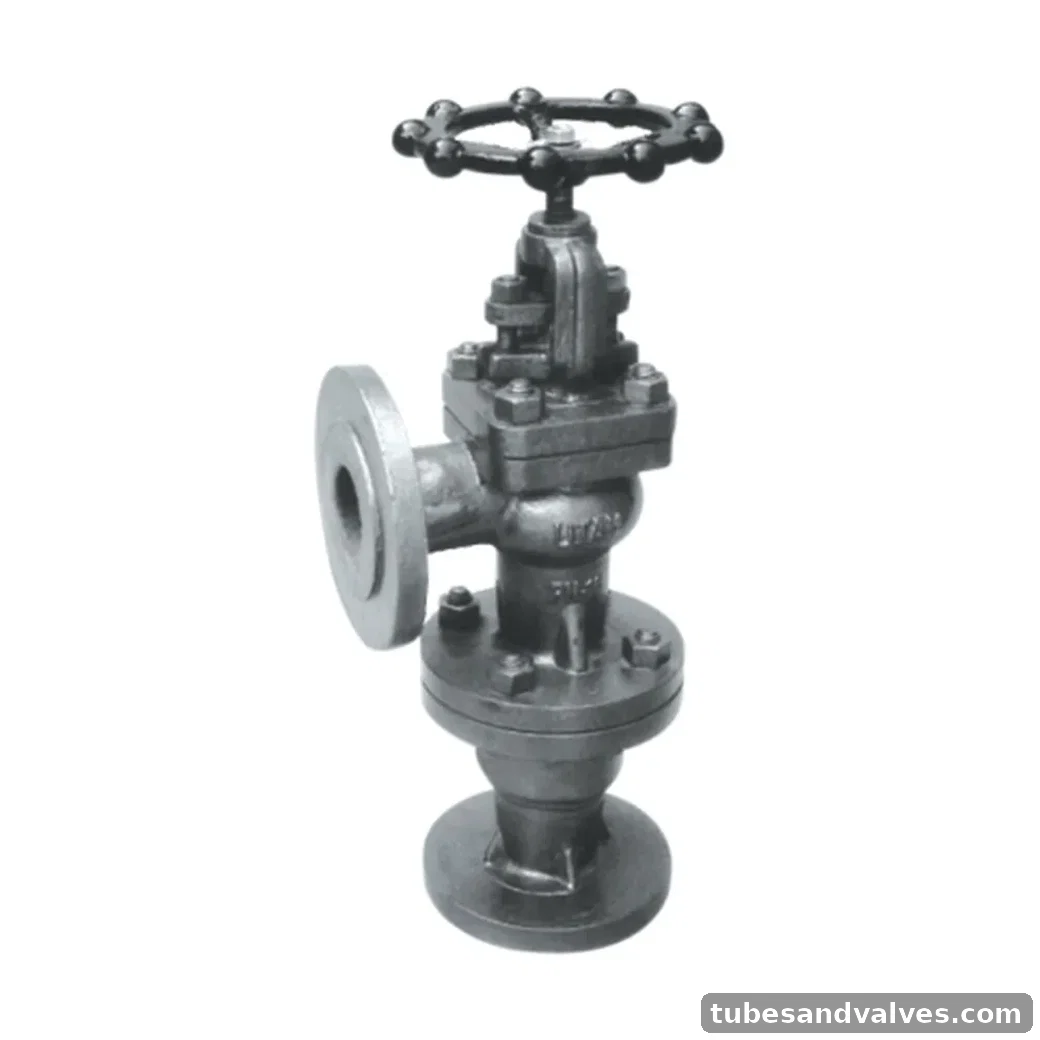

UTAM UV-208-S ACCESSIBLE FEED CHECK VALVE
UTAM UV-208-S ACCESSIBLE FEED CHECK VALVE. ACCESSIBLE FEED CHECK VALVE. Without Inspection Branch, Straight Inlet. Rating: Max. BOP 10.34 Bar. Body/material: $.G. Iron (ASTM A536-1980). End connection: Flanged.
Available Size / Variant
Confirm size with quotation
Brand / MakeUTAM
Catalogue ModelUV-208-S
Product FamilyCheck Valve / NRV
Material$.G. Iron (ASTM A536-1980)
Pressure / RatingMax. BOP 10.34 Bar
End ConnectionFlanged
UTAM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Type of PatternRight Angle Pattern
Body Material / Standard$.G. Iron (ASTM A536-1980)
Type of SeatRenewable Seat
Type of DiscRenewable Disc
TrimSS (ASTM A276 Type 410) \
FastenerCarbon Steel (BS:916) )
GasketCompressed Asbestos Fiber
Gland PackingGraphited Asbestos
End DetailsFlanges as per BS:10 Table-F (Undrilled)
Working PressureMax. BOP 10.34 Bar
Test PressureTested to 20.7 Bar Hyd.
Maximum Working Temperature225° C
CertificationIBR Certified
