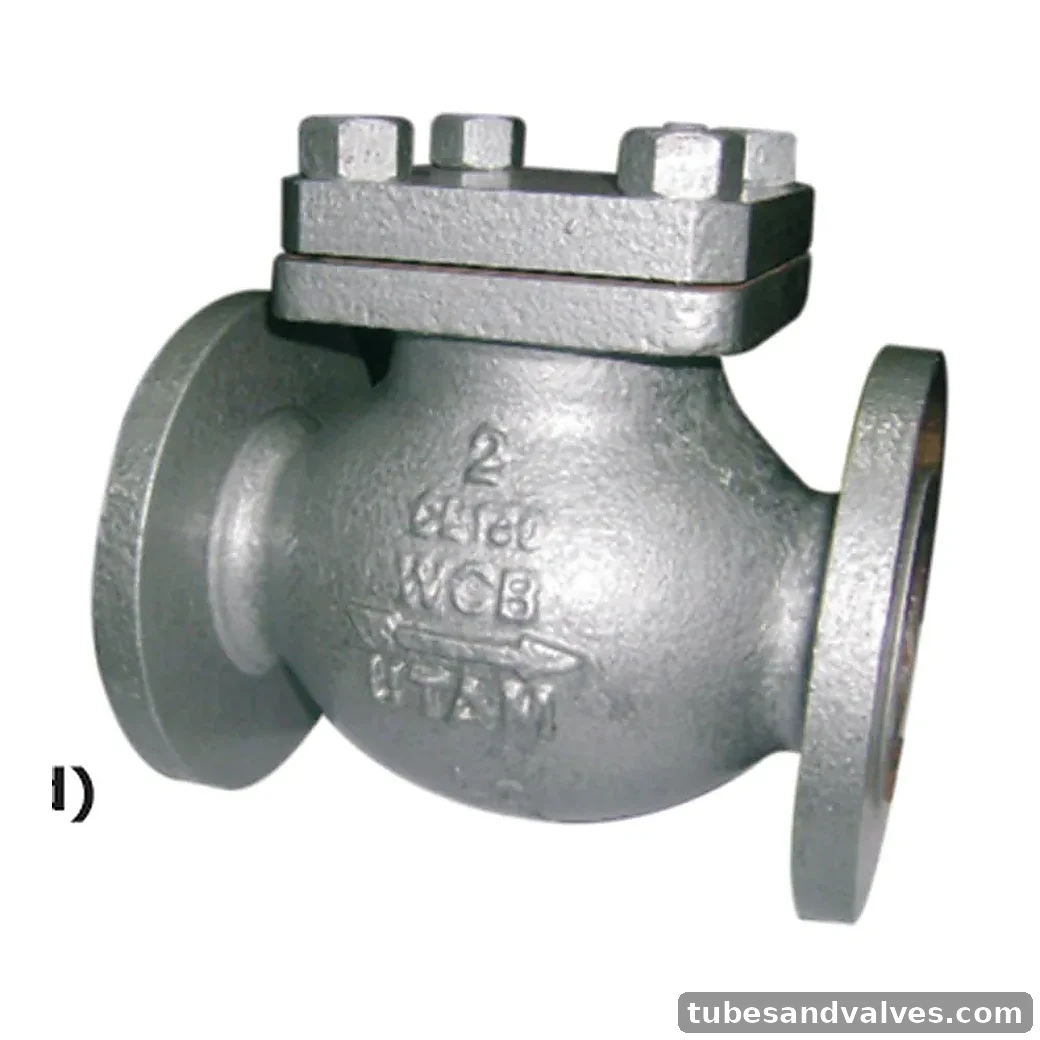

UTAM UV-282 HORIZONTAL LIFT CHECK VALVE
UTAM UV-282 HORIZONTAL LIFT CHECK VALVE. HORIZONTAL LIFT CHECK VALVE. Bolted Cover. Rating: Class-300. Body/material: Cast Steel / WCB. End connection: Flanged.
Available Size / Variant
Confirm size with quotation
Brand / MakeUTAM
Catalogue ModelUV-282
Product FamilyCheck Valve / NRV
MaterialCast Steel / WCB
Pressure / RatingClass-300
StandardBS:1873
End ConnectionFlanged
UTAM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Product StandardBS:1873
Pressure/Class RatingClass-300
Body Material / StandardCast Carbon Steel (IBR Clause 73 to 80 Gr.B) (ASTM A:216 Gr. WCB)
Type of SeatRenewable Seat
TrimSS (ASTM A216 Type 410)
End DetailsFlanges as per ASME B16.5 CL-300 R.F. (Undrilled)
Test PressureB.T.P. 76 Bar Hyd. S.T.P. 55 Bar Hyd. 6.9 Bar Air
Maximum Working Temperature425°C
CertificationIBR Certified
