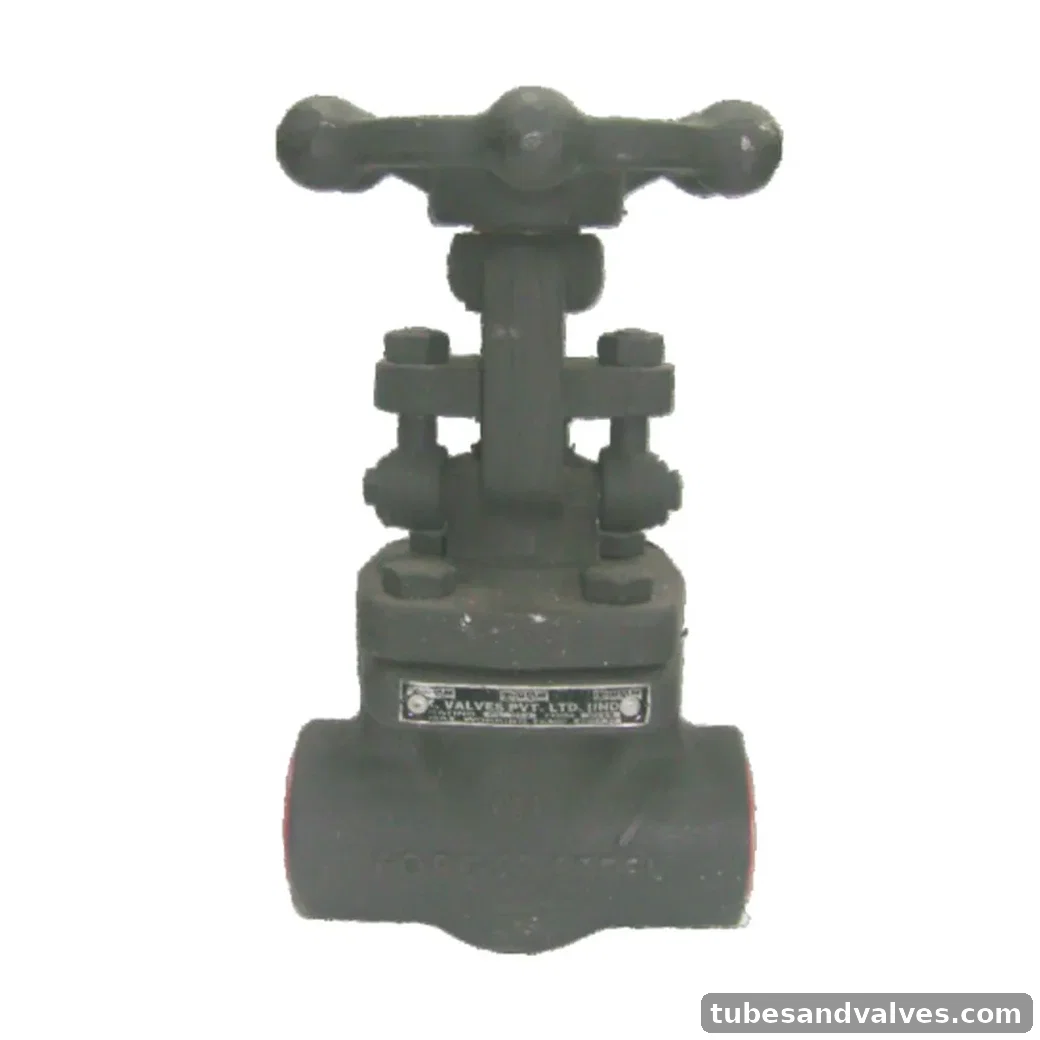

UTAM UV-351-S GATE VALVE
UTAM UV-351-S GATE VALVE. GATE VALVE. Bolted Bonnet, O/S & Yoke Type, Rising Stem. Rating: Class-800. Body/material: Carbon Steel. End connection: Screwed, Socket Weld.
Available Size / Variant
Confirm size with quotation
Brand / MakeUTAM
Catalogue ModelUV-351-S
Product FamilyGate Valve
MaterialCarbon Steel
Pressure / RatingClass-800
StandardBS:5352/API:602
End ConnectionScrewed, Socket Weld
UTAM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Type of PatternStraight Pattern
Product StandardBS:5352/API:602
Pressure/Class RatingClass-800
Body Material / StandardForged Carbon Steel (A105)
Port OpeningReduced Bore
Type of SeatRenewable Seat
Type of WedgeSolid Wedge
TrimSS (A276 Type 410)
Gland PackingGraphoil
FastenerAlloy Steel (Gr.87 / Gr.2H)
GasketSS (304) Spiral Wound graphite filled
End DetailsScrewed Female NPT Threads to ANSI B1.20.1 1983 or Socket Welded Ends as per ASME B 16.11
Test PressureB.T.P.-207 Bar Hyd.
S.T.P.152 Bar Hyd.
Maximum Working Temperature425°C.
CertificationIBR Certified
