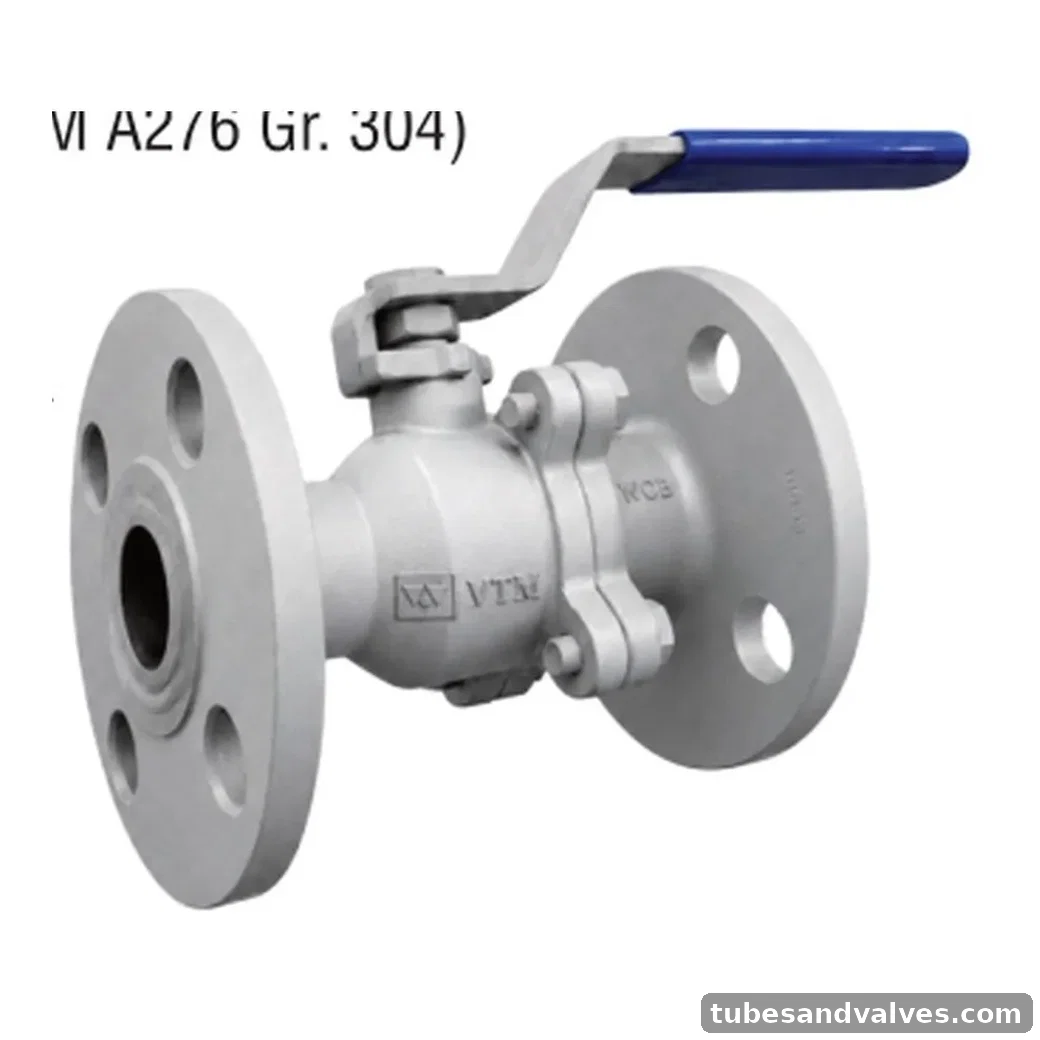

VTM VA-120 WCB BALL VALVE 2 PC DESIGN F/E
VTM VA-120 WCB BALL VALVE 2 PC DESIGN F/E. WCB BALL VALVE 2 PC DESIGN F/E. Rating: Class 150. Body/material: Cast Steel / WCB. End connection: Flanged, Butt Weld.
Available Size / Variant
Confirm size with quotation
Brand / MakeVTM
Catalogue ModelVA-120
Product FamilyBall Valve
MaterialCast Steel / WCB
Pressure / RatingClass 150
Standard{API 6D / BS EN ISO 17292
End ConnectionFlanged, Butt Weld
VTM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Product Standard{API 6D / BS EN ISO 17292
Pressure/Class RatingClass 150
Body Material / StandardCast Carbon Steel (ASTM A216 Gr. WCB)
BallStainless Steel (ASTM A351 Gr. CF8 / ASTM A276 Gr. 304)
StemStainless Steel (ASTM A276 Gr. 304) ——
Seat Ring & Gland PackingVirgin PTFE 4 ao
End DetailsFlanges Drilled as per ASME B16.5 #150 & 5 Butt-Weld Ends to Suit ASME B16.25
Test PressureShell: 30.0 Kg/cm² Hyd. 2 \
Seat22.0 Kg/cm² Hyd. 7.1 Kg/cm² Air.
