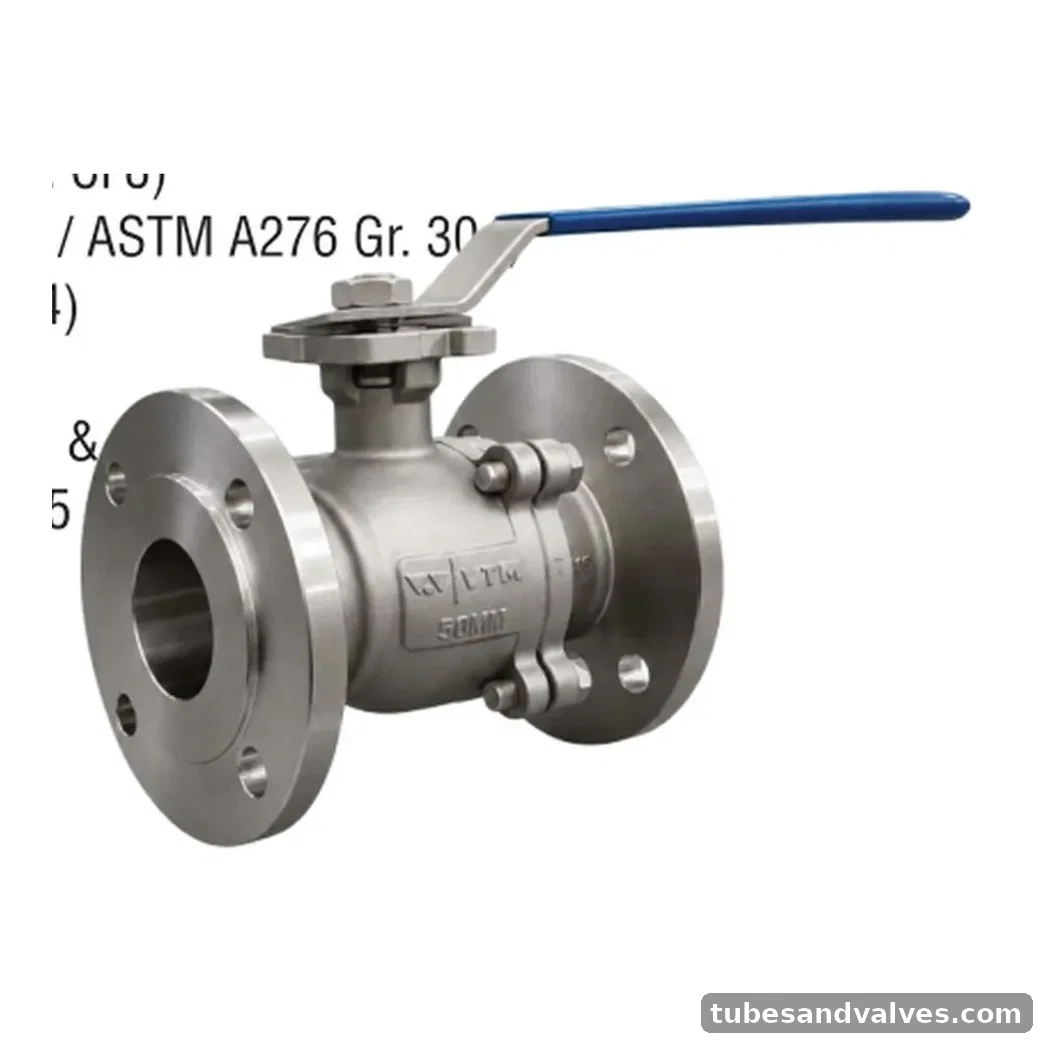

VTM VA-12001 CF8 (SS304) BALL VALVE 2 PC DESIGN F/E
VTM VA-12001 CF8 (SS304) BALL VALVE 2 PC DESIGN F/E. CF8 (SS304) BALL VALVE 2 PC DESIGN F/E. Rating: Class 150. Body/material: Stainless Steel 304 / CF8. End connection: Flanged, Butt Weld.
Available Size / Variant
Confirm size with quotation
Brand / MakeVTM
Catalogue ModelVA-12001
Product FamilyBall Valve
MaterialStainless Steel 304 / CF8
Pressure / RatingClass 150
StandardAPI 6D / BS EN ISO 17292
End ConnectionFlanged, Butt Weld
VTM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Product StandardAPI 6D / BS EN ISO 17292
Pressure/Class RatingClass 150
Body Material / StandardCast Stainless Steel (ASTM A351 Gr. CF8)
BallStainless Steel (ASTM A351 Gr. CF8 / ASTM A276 Gr. 3097
StemStainless Steel (ASTM A276 Gr. 304)
Seat Ring & Gland PackingVirgin PTFE
End DetailsFlanges Drilled to ASME B16.5 #150 Butt-Weld Ends to Suit ASME B16.25
Test PressureShell: 30.0 Kg/cm² Hyd.
Seat22.0 Kg/cm² Hyd. 7.1 Kg/cm² Air.
