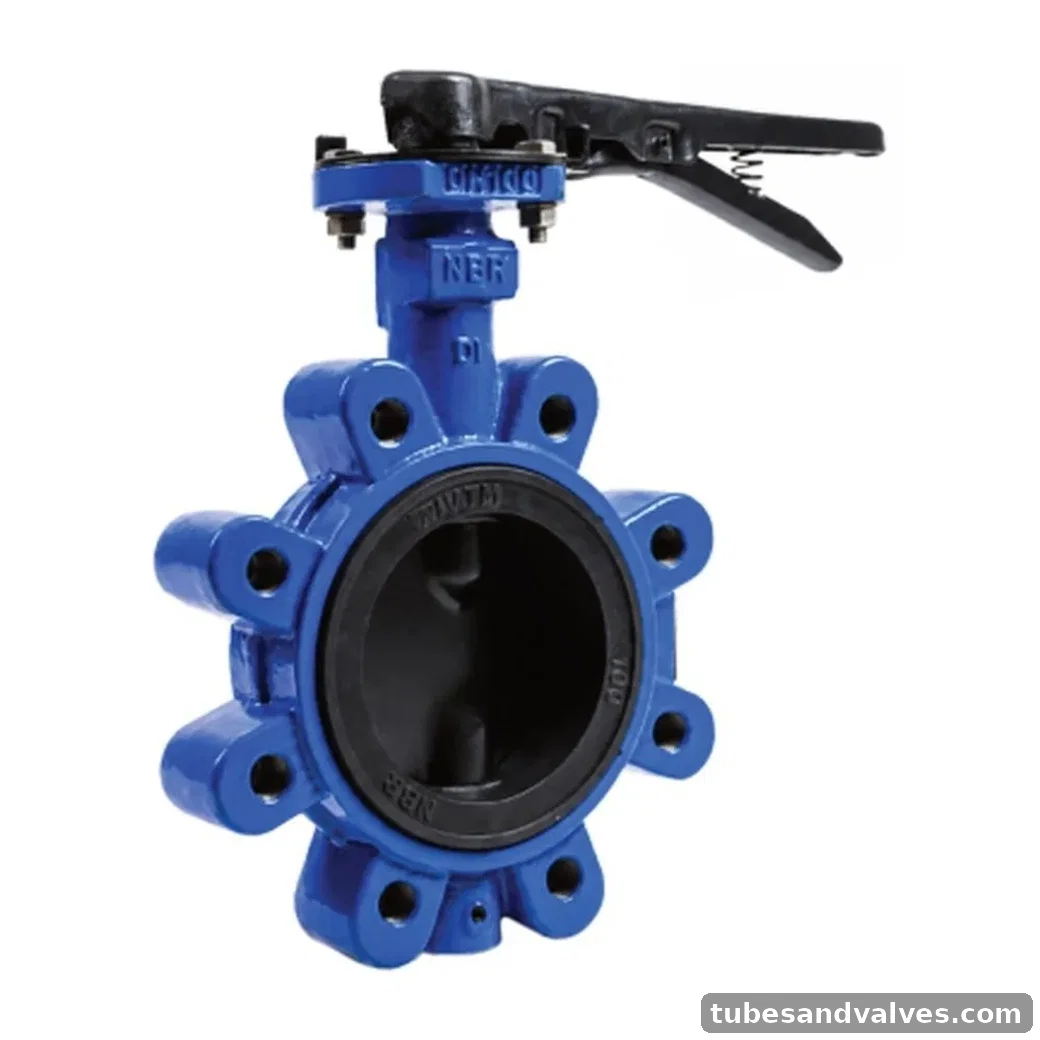

VTM VA-1300 C.I. LUGGED TYPE BUTTERFLY VALVE
VTM VA-1300 C.I. LUGGED TYPE BUTTERFLY VALVE. C.I. LUGGED TYPE BUTTERFLY VALVE. Rating: PN16. Body/material: Cast Iron. End connection: Lugged.
Available Size / Variant
Confirm size with quotation
Brand / MakeVTM
Catalogue ModelVA-1300
Product FamilyButterfly Valve
MaterialCast Iron
Pressure / RatingPN16
StandardAPI 609/ BS EN 593/ 1S 13095
End ConnectionLugged
VTM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Product StandardAPI 609/ BS EN 593/ 1S 13095
Pressure/Class RatingPN16
Body Material / StandardEpoxy Coated Cast Iron (IS 210 Gr. FG260)
Type of DiscDuctile Iron (ASTM A395 Gr. 65-45-15) with Protective Coating of Nylon
StemStainless Steel (ASTM A479 Gr. 410)
Type of SeatReplaceable NBR
BearingSelf Lubricated Sliding Bearings
End DetailsDrilling/Tapping as per ASME B16.5 #150 BS 10 Table D/E & BS 1092 PN10/16
Test PressureShell: 24.5 Kg/cm² Hyd.
Seat18 Kg/cm² Hyd. 7.1 Kg/cm² Air
