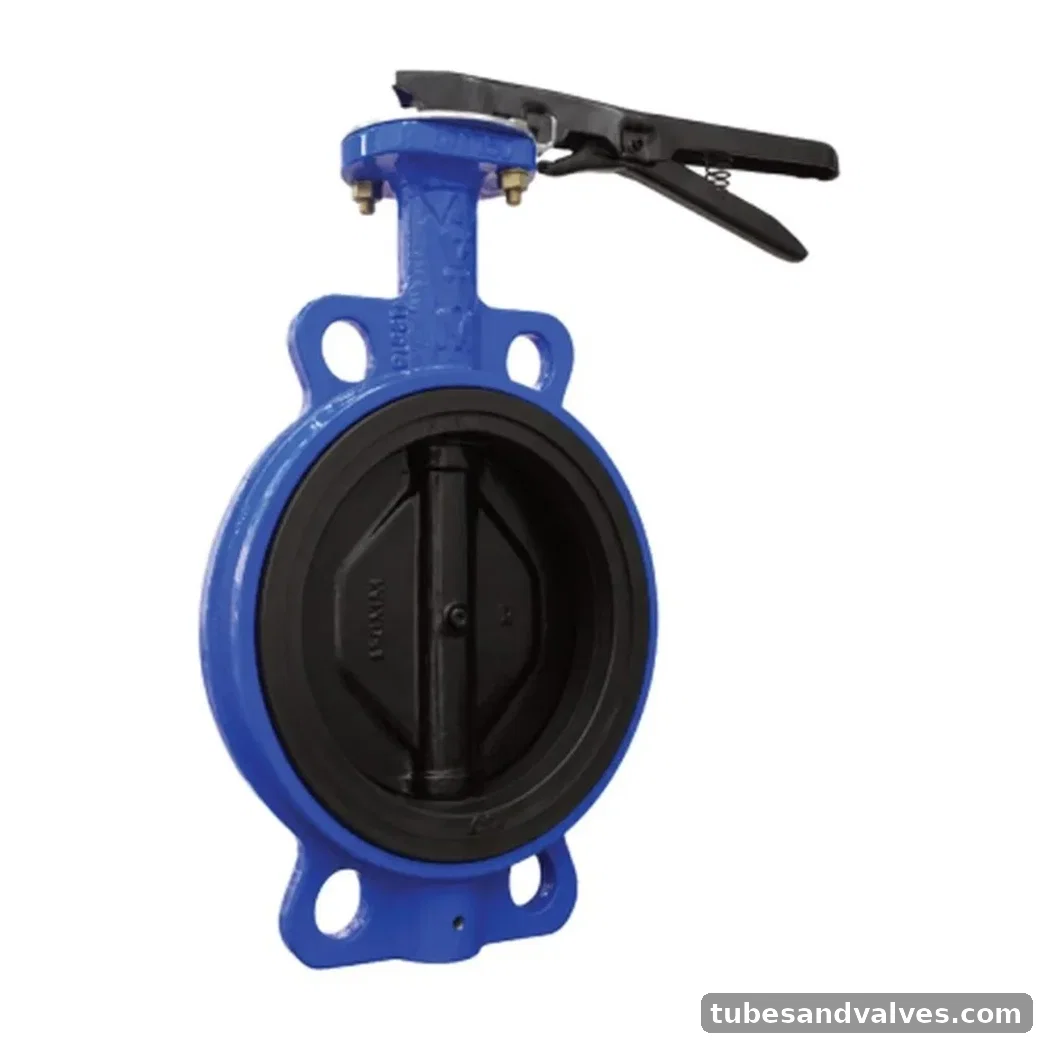

VTM VA-1800 C.I. WAFER TYPE BUTTERFLY VALVE (ISI)
VTM VA-1800 C.I. WAFER TYPE BUTTERFLY VALVE (ISI). C.I. WAFER TYPE BUTTERFLY VALVE (ISI). Rating: PN16. Body/material: Cast Iron. End connection: Wafer.
Available Size / Variant
Confirm size with quotation
Brand / MakeVTM
Catalogue ModelVA-1800
Product FamilyButterfly Valve
MaterialCast Iron
Pressure / RatingPN16
StandardAPI 609 / BS EN 593 / IS 13095
End ConnectionWafer
VTM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Product StandardAPI 609 / BS EN 593 / IS 13095
Pressure/Class RatingPN16
Body Material / StandardEpoxy Coated Cast Iron (IS 210 Gr. FG260) ‘yearns mth roetve cotngcvon.
StemStainless Steel (ASTM AAT Gr. 410)
Type of SeatReplaceable Nitrile Rubber Liner
BearingSelf Lubricated Sliding Bearings
End DetailsSuitable for Insertion B/W ASME B16.5 #150 BS 10 Table D/E & BS 1092 PN10/16
Test PressureShell: 24.5 Kg/cm² Hyd.
Seat18 Kg/cm² Hyd. 71 Kglom? Air.
