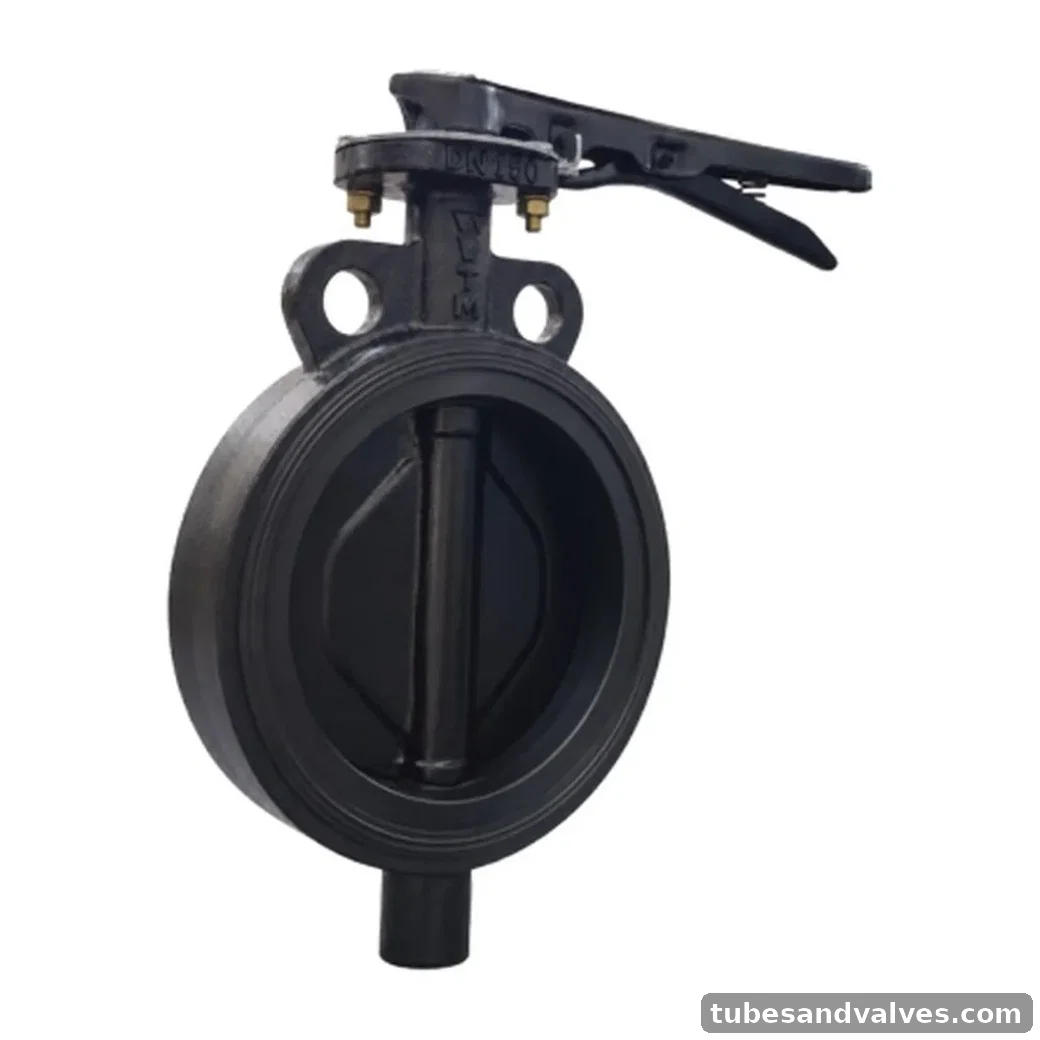

VTM VA-1000 C.I. WAFER TYPE BUTTERFLY VALVE (ISI)
VTM VA-1000 C.I. WAFER TYPE BUTTERFLY VALVE (ISI). C.I. WAFER TYPE BUTTERFLY VALVE (ISI). Rating: PN10/16. Body/material: Cast Iron. End connection: Wafer.
Available Size / Variant
Confirm size with quotation
Brand / MakeVTM
Catalogue ModelVA-1000
Product FamilyButterfly Valve
MaterialCast Iron
Pressure / RatingPN10/16
StandardAPI 609 / BS EN 593 / IS 13095
End ConnectionWafer
VTM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Product StandardAPI 609 / BS EN 593 / IS 13095
Pressure/Class RatingPN10/16
Body Material / StandardCast Iron (IS 210 Gr.FG260)
Type of DiscDuctile Iron (ASTM A395 Gr. 65-45-15) with Protective Coating of Nylon
StemStainless Steel (ASTM A479 Gr. 410)
Type of SeatBonded Nitrile Rubber Liner
BearingPTFE/Nylon
End DetailsWater for Insertion b/w ASME B16.5 #150 BS 10 Table D/E & BS 1092 PN10/16
Test PressureShell: 24.5 Kg/cm² Hyd.
Seat18.0 Kg/cm² Hyd. 7.4 Kg/cm² Air
