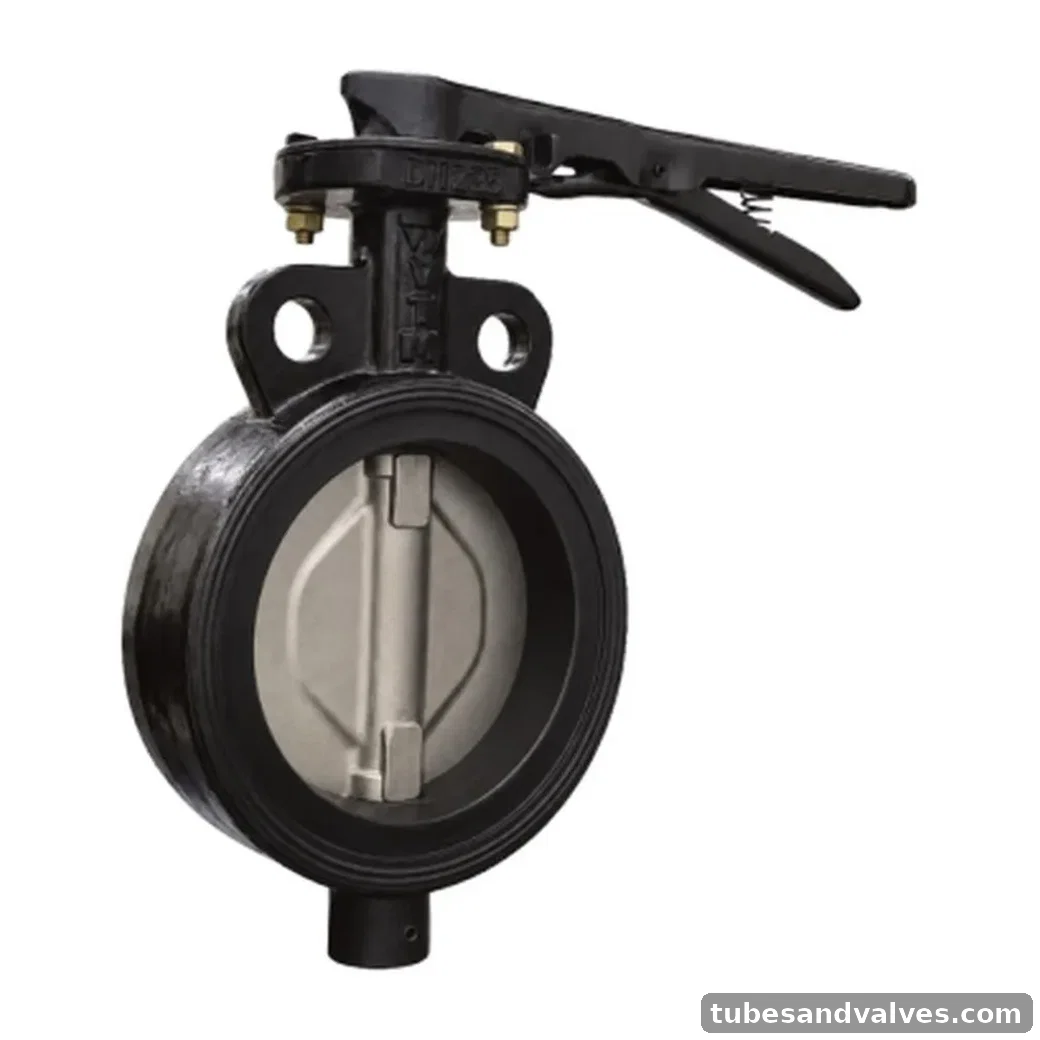

VTM VA-1003 C.I. WAFER TYPE BUTTERFLY VALVE
VTM VA-1003 C.I. WAFER TYPE BUTTERFLY VALVE. C.I. WAFER TYPE BUTTERFLY VALVE. Rating: PN10/16. Body/material: Cast Iron. End connection: Wafer.
Available Size / Variant
Confirm size with quotation
Brand / MakeVTM
Catalogue ModelVA-1003
Product FamilyButterfly Valve
MaterialCast Iron
Pressure / RatingPN10/16
StandardAPI 609 / BS EN 593 / 1S 13095
End ConnectionWafer
VTM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Product StandardAPI 609 / BS EN 593 / 1S 13095
Pressure/Class RatingPN10/16
Body Material / StandardCast Iron (1S 210 Gr.FG260)
Type of DiscStainless Steel (ASTM A351 Gr. CF8)
StemStainless Steel (ASTM A479 Gr. 410)
Type of SeatBonded EPDM
BearingPTFE/Nylon
End DetailsWafer for Insertion b/w ASME B16.5 #150 Test P ie heen ce hea 092 PN1ONG fest Pressure el 9 Kg/cm* hy
Seat18.0 Kg/om Hyd 7.1 Kg/cm² Air
