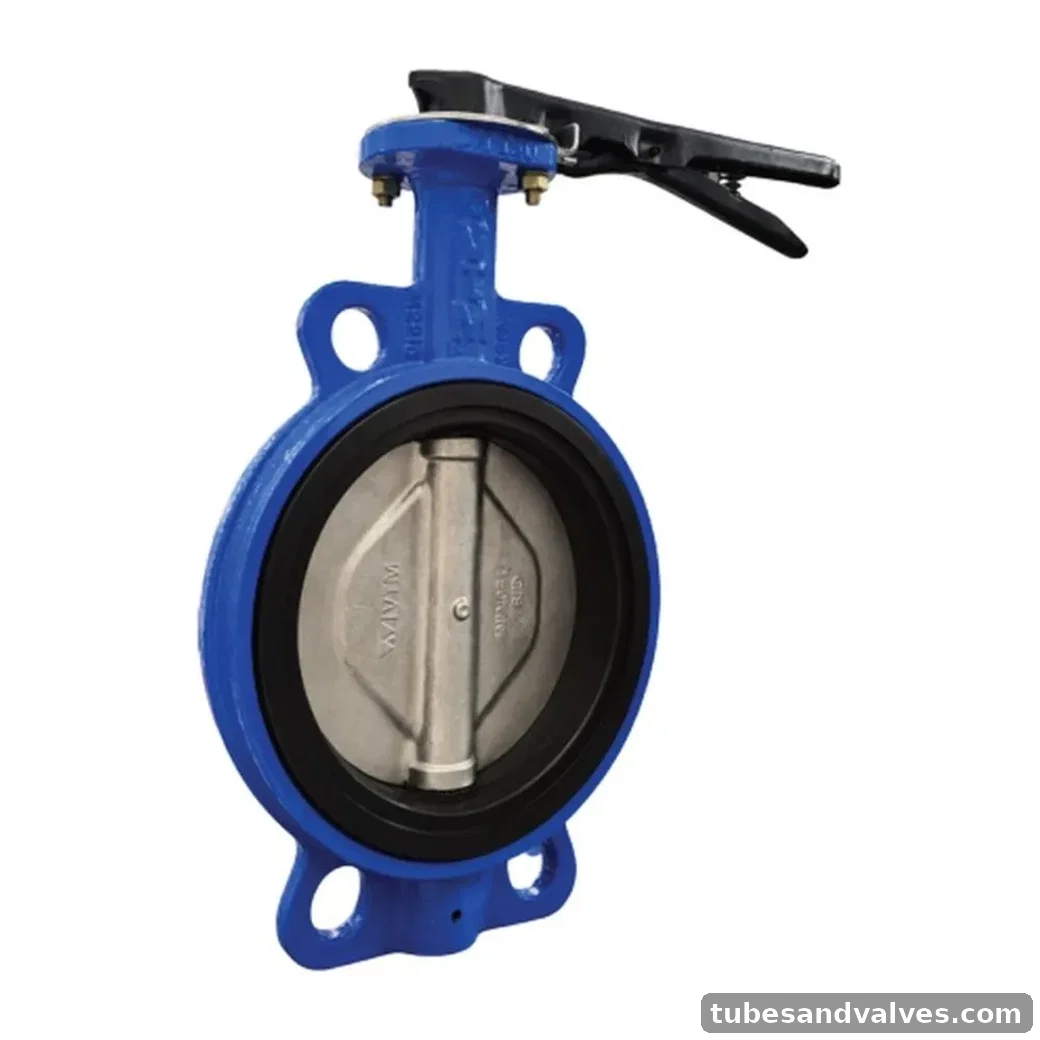

VTM VA-1803 C.I. WAFER TYPE BUTTERFLY VALVE
VTM VA-1803 C.I. WAFER TYPE BUTTERFLY VALVE. C.I. WAFER TYPE BUTTERFLY VALVE. Body/material: Cast Iron. End connection: Wafer.
Available Size / Variant
Confirm size with quotation
Brand / MakeVTM
Catalogue ModelVA-1803
Product FamilyButterfly Valve
MaterialCast Iron
StandardAPI 609 / BS EN 593/ IS 13095 Pressure/Class Ratin PN16
End ConnectionWafer
VTM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Product StandardAPI 609 / BS EN 593/ IS 13095 Pressure/Class Ratin PN16
Body Material / StandardEpoxy Coated Cast Iron (IS 210 Gr. FG260)
Type of DiscStainless Steel (ASTM A351 Gr. CF8)
StemStainless Steel (ASTM A479 Gr. 410)
Type of SeatReplaceable EPDM Liner
PackingSelf Lubricated Sliding Bearings
End DetailsSuitable for Insertion B/W ASME B16.5 #150 BS 10 Table D/E & BS 1092 PN10/16
Test PressureShell: 24.5 Kg/cm² Hyd.
Seat18 Kg/cm² Hyd. 7.1 Kg/cm² Air.
