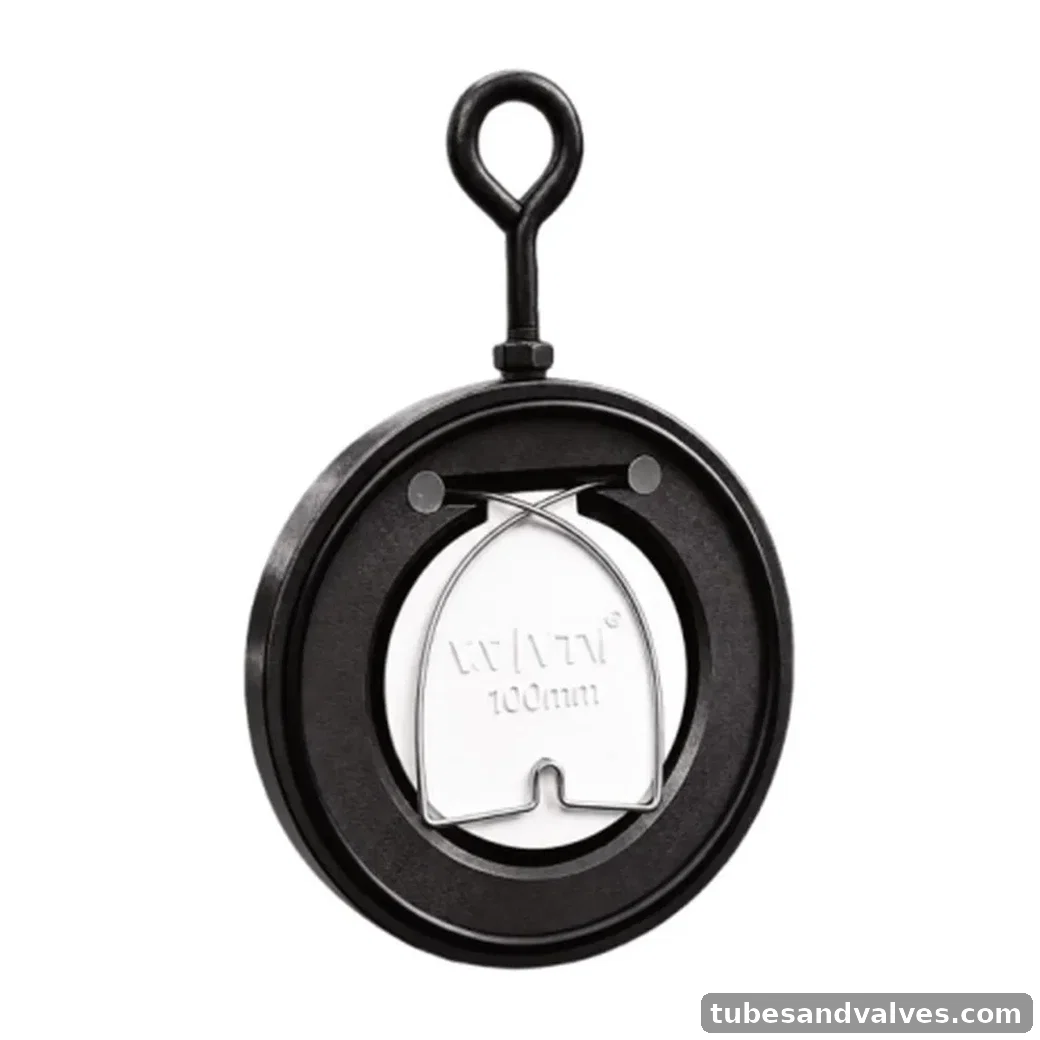

VTM VA-1702 D.I. SINGLE PLATE SWING CHECK VALVE
VTM VA-1702 D.I. SINGLE PLATE SWING CHECK VALVE. D.I. SINGLE PLATE SWING CHECK VALVE. Rating: PN1G. Body/material: Ductile Iron. End connection: Suitable for Insertion B/W ASME B16.5 #150 BS 10 Table D/E & BS 1092 PN10/16.
Available Size / Variant
Confirm size with quotation
Brand / MakeVTM
Catalogue ModelVA-1702
Product FamilyCheck Valve / NRV
MaterialDuctile Iron
Pressure / RatingPN1G
StandardAPI 6D.
End ConnectionSuitable for Insertion B/W ASME B16.5 #150 BS 10 Table D/E & BS 1092 PN10/16
VTM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Product StandardAPI 6D.
Pressure/Class RatingPN1G
Body Material / StandardDuctile Iron (ASTM A395 Gr. 65-45-15)
Type of DiscCast Stainless Steel (ASTM A351 Gr. CF8M)
SpringAISI 304
SeatNBR/EPDM / 18 Kg/cm² Hyd. 7.1 Kg/cm² Air.
End DetailsSuitable for Insertion B/W ASME B16.5 #150 BS 10 Table D/E & BS 1092 PN10/16
Test PressureShell: 24.5 Kg/cm² Hyd.
