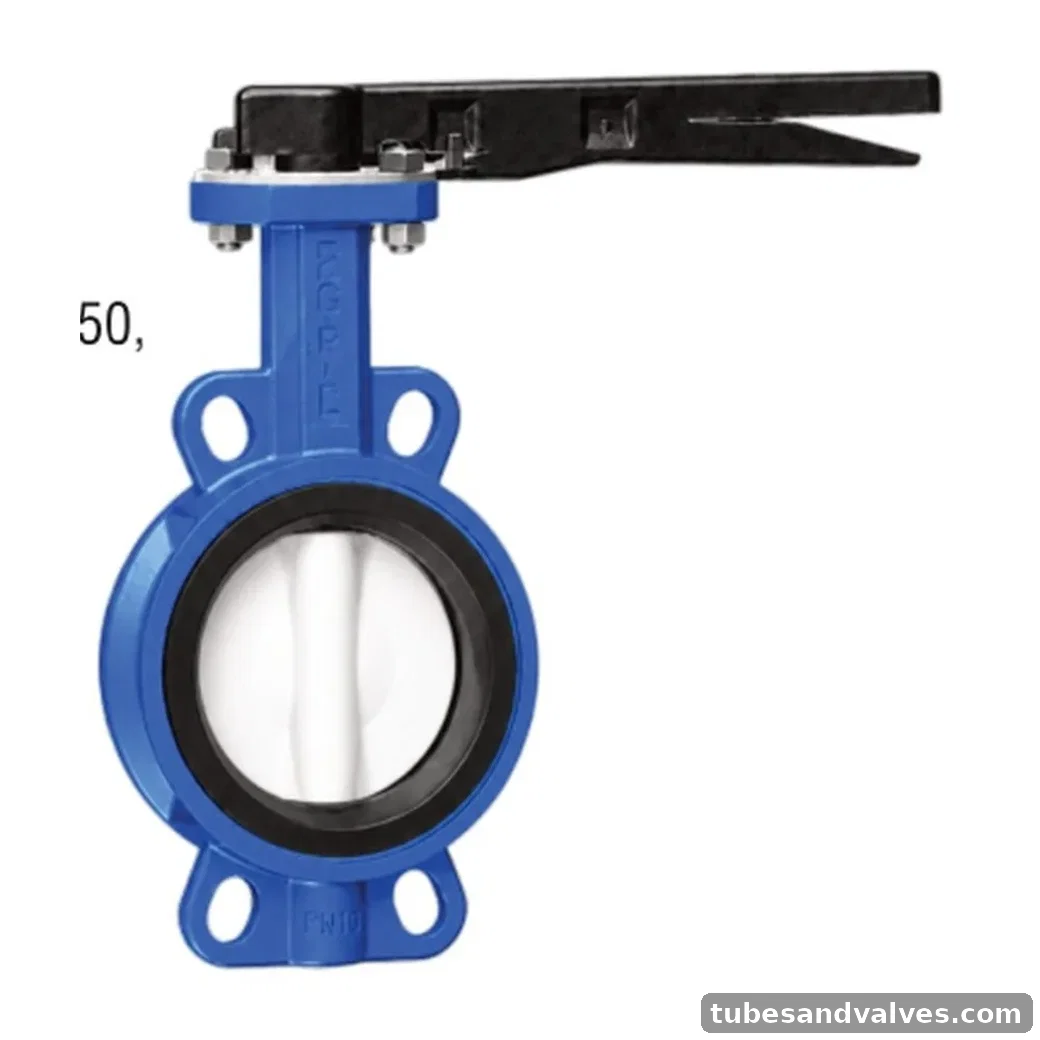

VTM VA-2022 D.I. WAFER TYPE BUTTERFLY VALVE
VTM VA-2022 D.I. WAFER TYPE BUTTERFLY VALVE. D.I. WAFER TYPE BUTTERFLY VALVE. Rating: PN20. Body/material: Ductile Iron. End connection: Wafer.
Available Size / Variant
Confirm size with quotation
Brand / MakeVTM
Catalogue ModelVA-2022
Product FamilyButterfly Valve
MaterialDuctile Iron
Pressure / RatingPN20
StandardAPI 609 / BS EN 593/ IS 13095
End ConnectionWafer
VTM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Product StandardAPI 609 / BS EN 593/ IS 13095
Pressure/Class RatingPN20
Body Material / StandardDuctile Iron (ASTM A395 Gr. 65-45-15)
Type of DiscStainless Steel (ASTM A351 Gr. CF8)
StemStainless Steel (ASTM A479 Gr. 410)
Type of SeatBonded EPDM
BearingSelf Lubricated Sliding Bearings
End DetailsSuitable for Insertion B/W ASME B16.5 #150 BS 10 Table D/E & BS 1092 PN10/16
Test PressureShell: 31.0 Kg/cm² Hyd.
Seat22.5 Kg/cm² Hyd. 7.1 Kg/cm² Air.
