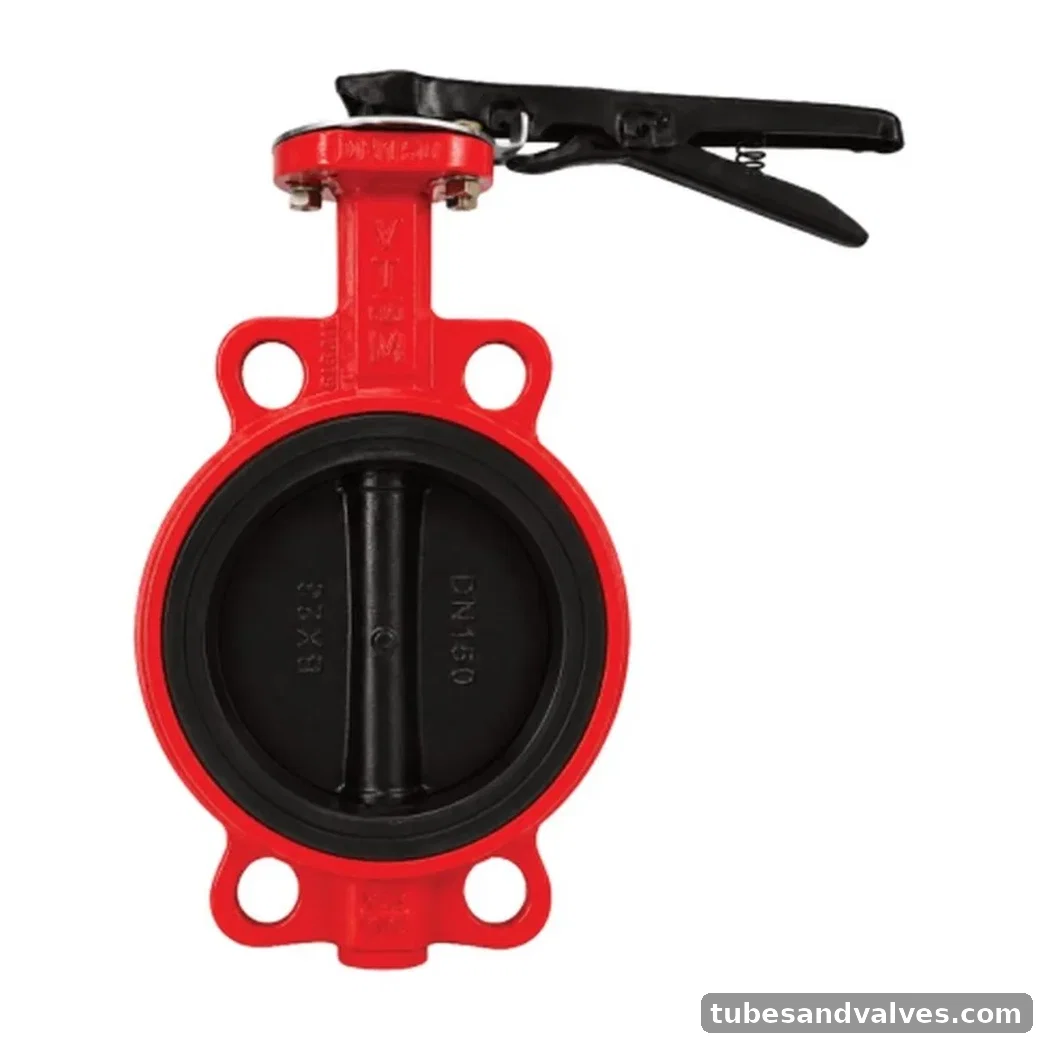

VTM VA-2755 D.I. WAFER TYPE BUTTERFLY VALVE (ISI)
VTM VA-2755 D.I. WAFER TYPE BUTTERFLY VALVE (ISI). D.I. WAFER TYPE BUTTERFLY VALVE (ISI). Rating: PN25. Body/material: Ductile Iron. End connection: Wafer.
Available Size / Variant
Confirm size with quotation
Brand / MakeVTM
Catalogue ModelVA-2755
Product FamilyButterfly Valve
MaterialDuctile Iron
Pressure / RatingPN25
StandardAPI 609 / BS EN 593 / IS 13095
End ConnectionWafer
VTM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Product StandardAPI 609 / BS EN 593 / IS 13095
Pressure/Class RatingPN25
Body Material / StandardDuctile Iron (ASTM A395 Gr. 65-45-15)
Type of DiscDuctile Iron (ASTM A395 Gr. 65-45-15) with Protective Coating of Nylon
StemStainless Steel (ASTM A479 Gr. 410)
Type of SeatBonded NBR Liner
BearingSelf Lubricated Sliding Bearings
End DetailsSuitable for Insertion B/W ASME B16.5 #150 & BS 1092 PN25
Test PressureShell: 38.5 Kg/cm² Hyd.
Seat28.5 Kg/cm² Hyd. 7.1 Kg/orm? Air.
