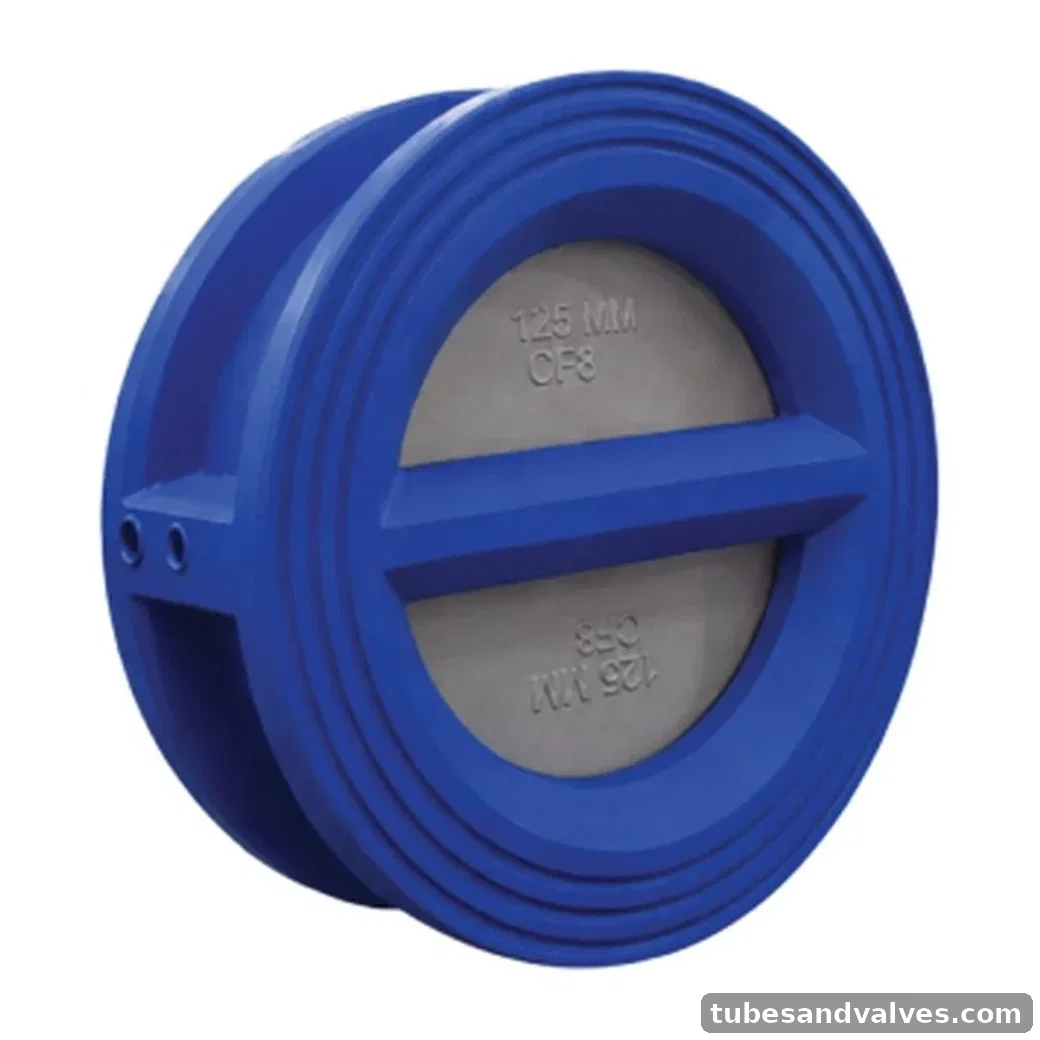

VTM VA-2103 D.I. DUAL PLATE CHECK VALVE
VTM VA-2103 D.I. DUAL PLATE CHECK VALVE. D.I. DUAL PLATE CHECK VALVE. Rating: PN16. Body/material: Ductile Iron. End connection: Suitable for Insertion B/W ASME B16.5 #150 BS 10 Table D/E & BS 1092 PN10/16.
Available Size / Variant
Confirm size with quotation
Brand / MakeVTM
Catalogue ModelVA-2103
Product FamilyCheck Valve / NRV
MaterialDuctile Iron
Pressure / RatingPN16
StandardAPI 594
End ConnectionSuitable for Insertion B/W ASME B16.5 #150 BS 10 Table D/E & BS 1092 PN10/16
VTM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Product StandardAPI 594
Pressure/Class RatingPN16
Body Material / StandardDuctile Iron (ASTM A395 Gr. 65-45-15)
Type of DiscStainless Steel (ASTM A351 Gr. CF8)
Type of SeatBonded EPDM
SpringSS (AISI 316)
End DetailsSuitable for Insertion B/W ASME B16.5 #150 BS 10 Table D/E & BS 1092 PN10/16
Test PressureShell: 24.5 Kg/cm² Hyd.
Seat18.0 Kg/cm² Hyd. 7.1 Kg/em? Air.
