About this exact size

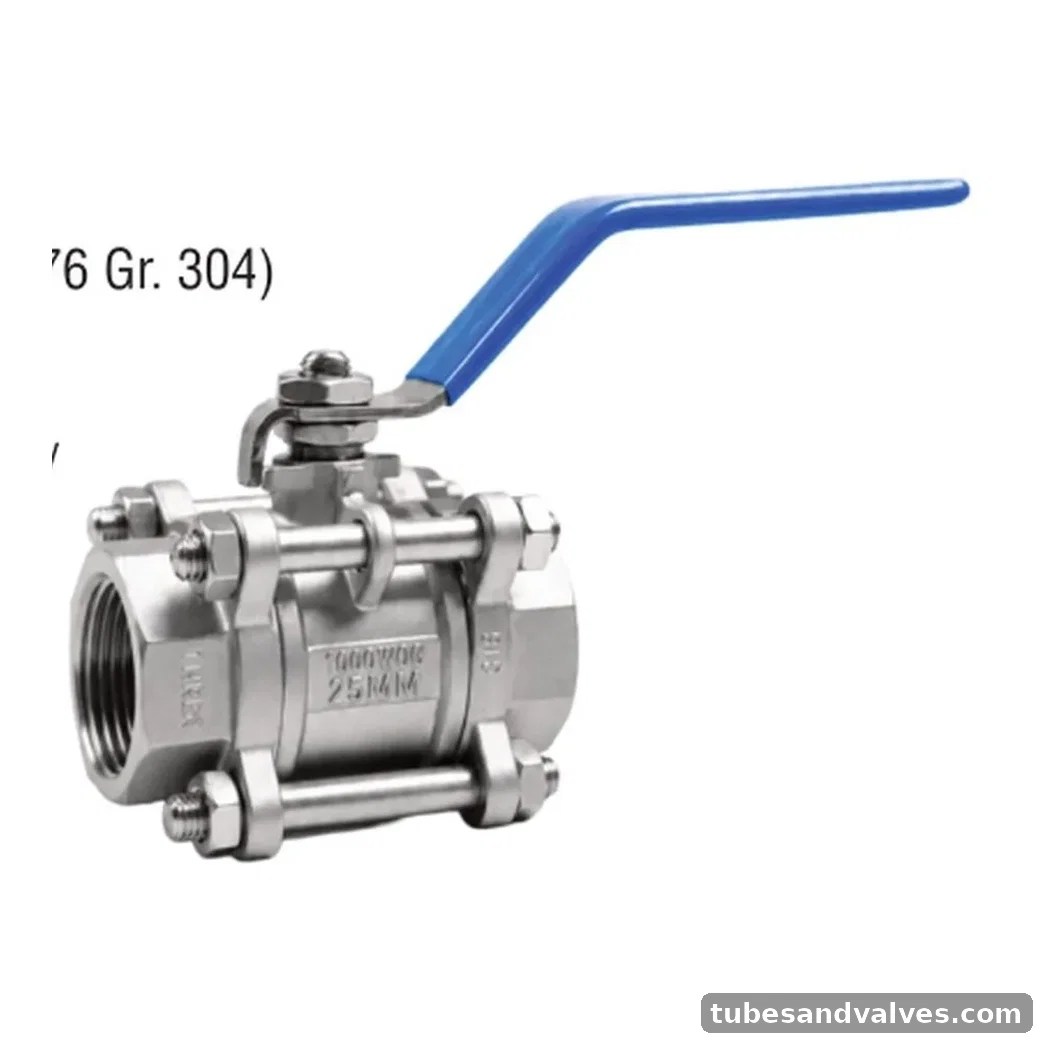

VTM VA-264 CF8 (SS304) BALL VALVE 3PC. DESIGN S/E is listed in our Ball Valve catalogue with Stainless Steel 304 / CF8, BS EN ISO 17292, PN40, Screwed, Socket Weld. Please confirm current availability and the final applicable specification in our quotation before ordering.
Published catalogue recordVTM VA-264 CF8 (SS304) BALL VALVE 3PC. DESIGN S/E is listed in our Ball Valve catalogue with Stainless Steel 304 / CF8, BS EN ISO 17292, PN40, Screwed, Socket Weld. Please confirm current availability and the final applicable specification in our quotation before ordering.
Brand / MakeVTM
Product TypeBall Valve
Size15mm (1/2")
MaterialStainless Steel 304 / CF8
Standard / SpecificationBS EN ISO 17292
Pressure / RatingPN40
End ConnectionScrewed, Socket Weld
Available Sizes / Variants
VTM VA-264 CF8 (SS304) BALL VALVE 3PC. DESIGN S/E. CF8 (SS304) BALL VALVE 3PC. DESIGN S/E. Rating: PN40. Body/material: Stainless Steel 304 / CF8. End connection: Screwed, Socket Weld.
Size15mm (1/2")
Brand / MakeVTM
Catalogue ModelVA-264
Product FamilyBall Valve
MaterialStainless Steel 304 / CF8
Pressure / RatingPN40
StandardBS EN ISO 17292
End ConnectionScrewed, Socket Weld
VTM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Product StandardBS EN ISO 17292
Pressure/Class RatingPN40
Port OpeningFull Bore
Body Material / StandardCast Stainless Steel (ASTM A351 Gr. CF8)
BallStainless Steel (ASTM A351 Gr. CF8 / ASTM A276 Gr. 304)
StemStainless Steel (ASTM A276 Gr. 304)
Seat Ring & Gland PackingVirgin PTFE
End DetailsScrewed Female BSP Parallel Threads to BS:21 / Socket Weld Ends to ASME B16.11
Test PressureShell: 61.5 Kg/cm² Hyd.
Seat45.0 Kg/cm² Hyd 7.1 Kg/cm² Air
Design StandardISO 17292
Testing StandardAPI 598
Socket Weld End StandardASME B16.11
Available Sizes15-50 mm
CertificationIBR
Socket Weld StandardASME B16.11
RatingPN40
Size Range15-50 mm
GA DrawingVA-264-265-IBR-GA-00
