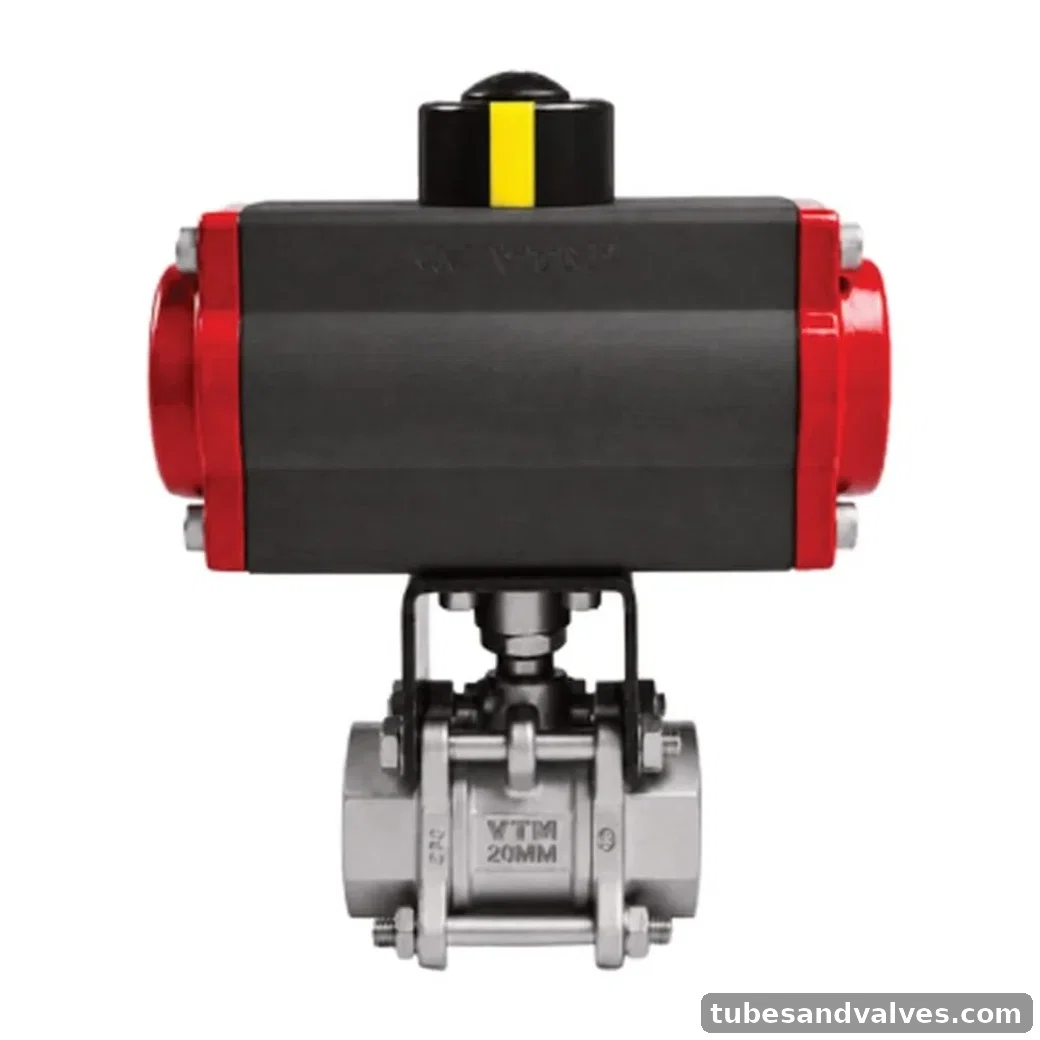

VTM VA-265DP CF8M (SS316) BALL VALVE 3PC. DESIGN S/E WITH PNEUMATIC ACTUATOR
VTM VA-265DP CF8M (SS316) BALL VALVE 3PC. DESIGN S/E WITH PNEUMATIC ACTUATOR. CF8M (SS316) BALL VALVE 3PC. DESIGN S/E WITH PNEUMATIC ACTUATOR. Double Acting Type with Air pressure of 8 Bar (Maximum). Rating: PN40. Body/material: Stainless Steel 316 / CF8M. End connection: Screwed, Socket Weld.
Available Size / Variant
Confirm size with quotation
Brand / MakeVTM
Catalogue ModelVA-265DP
Product FamilyPneumatic Actuated Ball Valve
MaterialStainless Steel 316 / CF8M
Pressure / RatingPN40
StandardBS EN ISO 17292
End ConnectionScrewed, Socket Weld
VTM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Product StandardBS EN ISO 17292
Pressure/Class RatingPN40
Port OpeningFull Bore
Body Material / StandardCast Stainless Steel (ASTM A351 Gr. CF8M)
BallStainless Steel (ASTM A351 Gr. CF8M / ASTM A276 Gr. 316)
StemStainless Steel (ASTM A276 Gr. 316)
Seat Ring & Gland PackingVirgin PTFE
ActuatorDouble Acting Type with Air pressure of 8 Bar (Maximum)
End DetailsScrewed Female BSP Parallel Threads to BS:21 / Socket Weld Ends to ASME B16.11
Test PressureShell: 61.5 Kg/cm2 Hyd.
Seat45.0 Kg/cm² Hyd. 7.1 Kg/cm² Air
