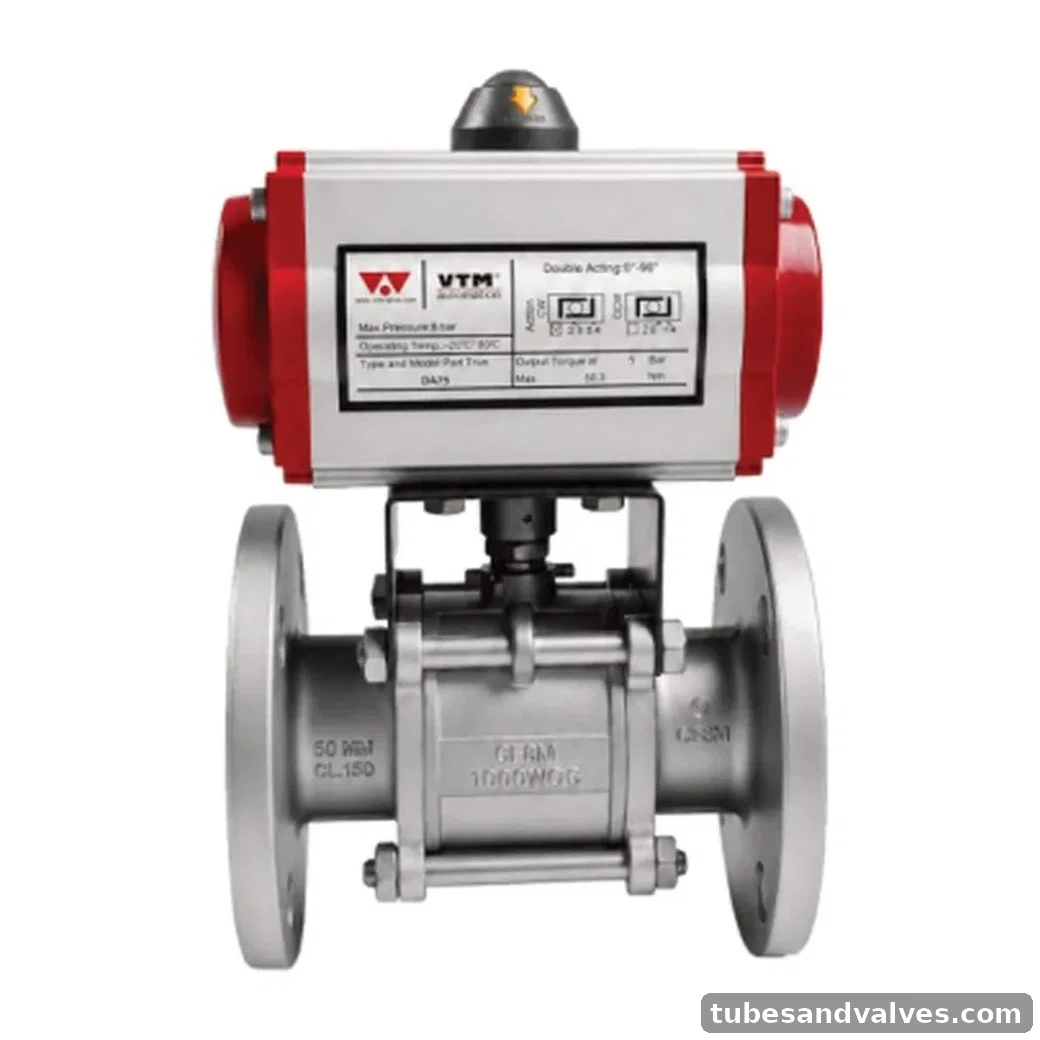

VTM VA-267DP CF8M (SS316) BALL VALVE 3PC. DESIGN F/E WITH PNEUMATIC ACTUATOR
VTM VA-267DP CF8M (SS316) BALL VALVE 3PC. DESIGN F/E WITH PNEUMATIC ACTUATOR. CF8M (SS316) BALL VALVE 3PC. DESIGN F/E WITH PNEUMATIC ACTUATOR. Double Acting Type with Air pressure of 8 Bar (Maximum). Rating: Class 150. Body/material: Stainless Steel 316 / CF8M. End connection: Flanged.
Available Size / Variant
Confirm size with quotation
Brand / MakeVTM
Catalogue ModelVA-267DP
Product FamilyPneumatic Actuated Ball Valve
MaterialStainless Steel 316 / CF8M
Pressure / RatingClass 150
StandardBS EN ISO 17292
End ConnectionFlanged
VTM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Product StandardBS EN ISO 17292
Pressure/Class RatingClass 150
Port OpeningFull Bore
Body Material / StandardCast Stainless Steel (ASTM A351 Gr. CF8M)
BallStainless Steel (ASTM A351 Gr. CF8M / ASTM A276 Gr. 316)
StemStainless Steel (ASTM A276 Gr. 316)
Seat Ring & Gland PackingVirgin PTFE
ActuatorDouble Acting Type with Air pressure of 8 Bar (Maximum)
End DetailsFlanged Ends to Suit ASME B16.5 #150
Test PressureShell: 30 Kg/cm² Hyd
Seat22 Kg/cm² Hyd. 7.1 Kg/cm² Air
