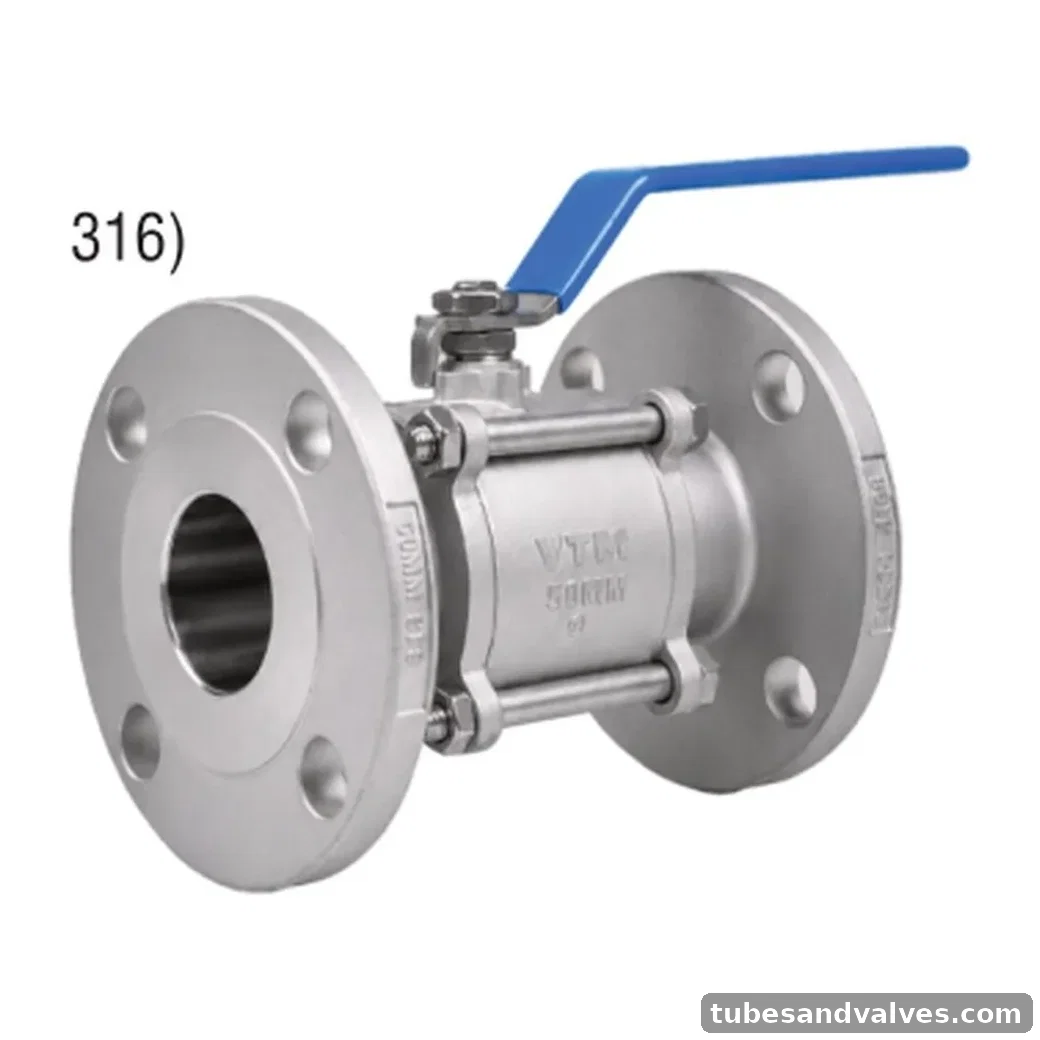

VTM VA-267 CF8M (SS316) BALL VALVE 3PC. DESIGN F/E - 100mm (4")
VTM VA-267 CF8M (SS316) BALL VALVE 3PC. DESIGN F/E. CF8M (SS316) BALL VALVE 3PC. DESIGN F/E. Rating: Class 150. Body/material: Stainless Steel 316 / CF8M. End connection: Flanged.
Available Size / Variant
100mm (4")
Size100mm (4")
Brand / MakeVTM
Catalogue ModelVA-267
Product FamilyBall Valve
MaterialStainless Steel 316 / CF8M
Pressure / RatingClass 150
StandardBS EN ISO 17292 Aperoess
End ConnectionFlanged
VTM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Product StandardBS EN ISO 17292 Aperoess
Pressure/Class RatingClass 150
Port OpeningFull Bore
Body Material / StandardCast Stainless Steel (ASTM A351 Gr. CF8M)
BallStainless Steel (ASTM A351 Gr. CF8M / ASTM A276 Gr. 316)
StemStainless Steel (ASTM A276 Gr. 316) ‘
Seat Ring & Gland PackingVirgin PTFE
End DetailsFlanged Ends to Suit ASME B16.5 #150
Test PressureShell: 30 Kg/cm² Hyd.
Seat22 Kg/cm² Hyd. 7.1 Kg/cm² Air
Design StandardBS EN ISO 17292
Face-to-Face StandardASME/ANSI B16.10
Flange StandardASME/ANSI B16.5
Testing StandardAPI 598
Available Sizes15-100 mm
CertificationIBR
Face-to-FaceASME/ANSI B16.10
RatingClass 150
Size Range15-100 mm
GA DrawingVA-266-267-IBR-GA-00
Quotation Status: Price & availability on request for this exact specification.
Since 1980Industrial supply experience10,000+ CustomersServed across industriesPAN IndiaDispatch support
100mm (4") Product & Ordering Details
Exact Size100mm (4")
Brand / MakeVTM
Model / ReferenceVA-267
MaterialStainless Steel 316 / CF8M
Pressure / RatingClass 150
StandardBS EN ISO 17292 Aperoess
End ConnectionFlanged
Use this page when enquiring for the 100mm (4") version of VTM VTM VA-267 CF8M (SS316) BALL VALVE 3PC. DESIGN F/E. Mention the exact model, quantity and delivery PIN code so we can confirm the appropriate technical and commercial offer.
