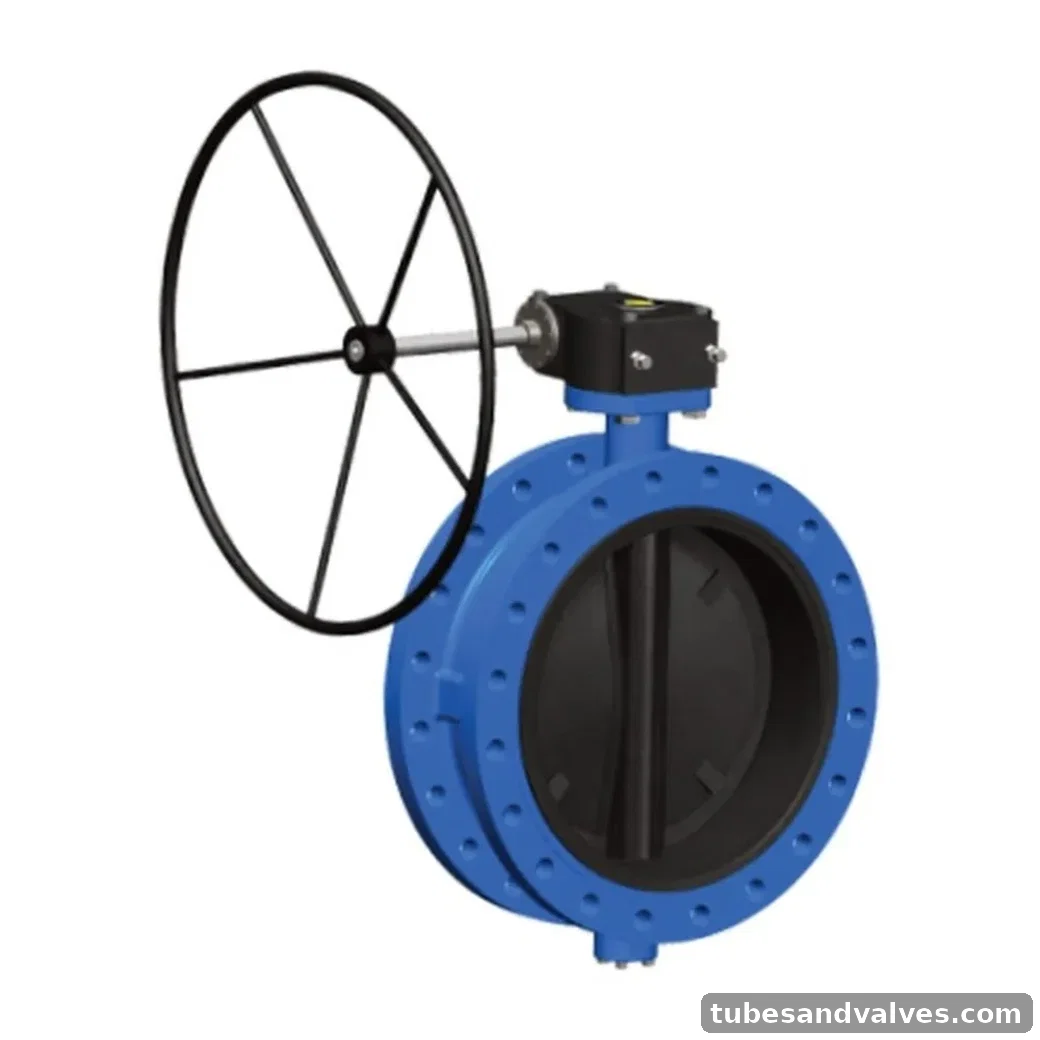

VTM VA-2955 D.I. BUTTERFLY VALVE F/E
VTM VA-2955 D.I. BUTTERFLY VALVE F/E. D.I. BUTTERFLY VALVE F/E. Rating: PN16. Body/material: Ductile Iron. End connection: Flanged.
Available Size / Variant
Confirm size with quotation
Brand / MakeVTM
Catalogue ModelVA-2955
Product FamilyButterfly Valve
MaterialDuctile Iron
Pressure / RatingPN16
StandardAPI 609/ BS 5155 / IS 13095
End ConnectionFlanged
VTM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Product StandardAPI 609/ BS 5155 / IS 13095
Pressure/Class RatingPN16
Body Material / StandardDuctile Iron (ASTM A395 Gr. 65-45-15)
Type of DiscDuctile Iron (ASTM A395 Gr. 65-45-15)
StemStainless Steel (ASTM A479 Gr. 410)
Type of SeatBonded NBR Liner
BearingSelf Lubricated Sliding Bearings
End DetailsFlanges Drilled as per ASME B16.5 #150 BS 10 Table D/E & BS 1092 PN10/16
Test PressureShell: 24.5 Kg/em? Hyd.
Seat18.0 Kg/cm² Hyd. 7.1 Kg/cm² Air.
