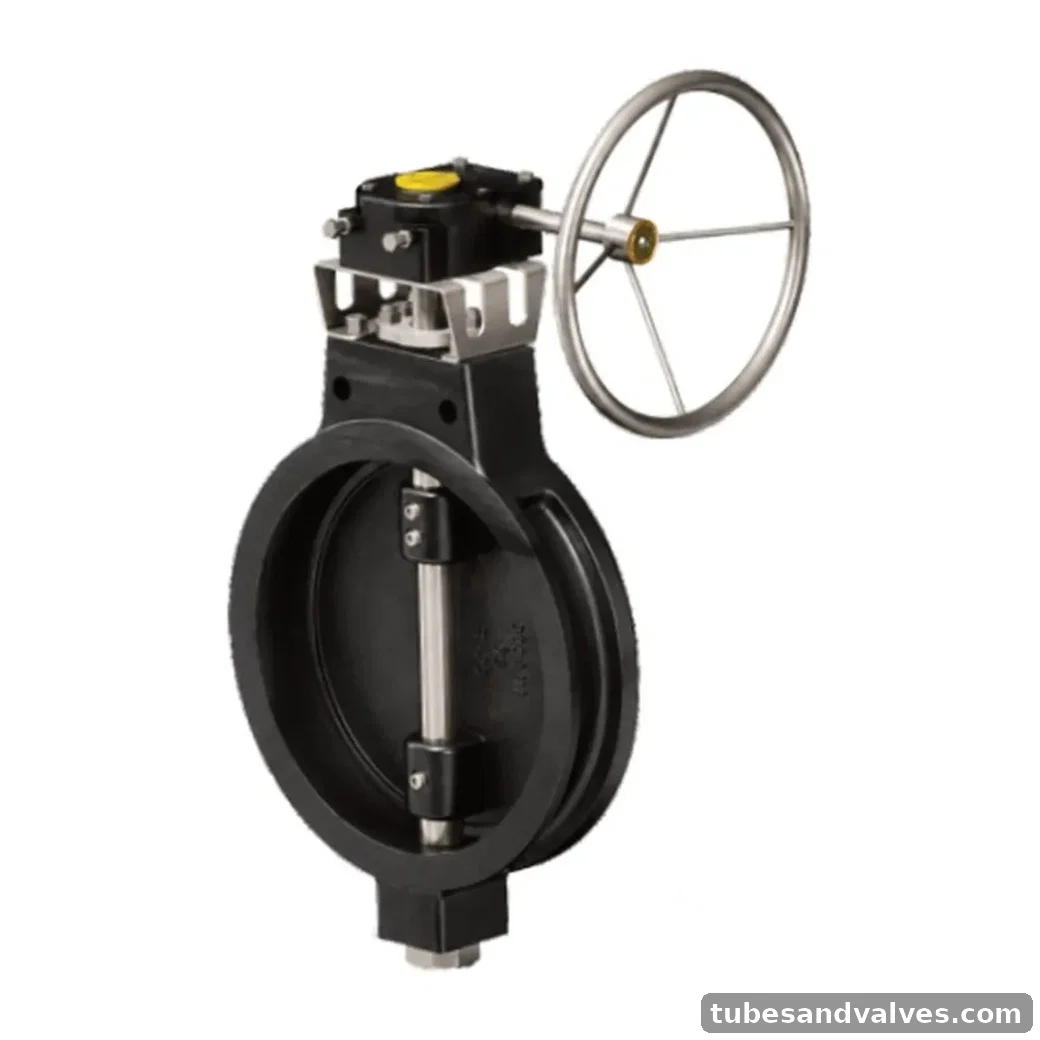

VTM VA-40 HIGH PERFORMANCE WCB BUTTERFLY VALVE WAFER END
VTM VA-40 HIGH PERFORMANCE WCB BUTTERFLY VALVE WAFER END. HIGH PERFORMANCE WCB BUTTERFLY VALVE WAFER END. Rating: Class 150. Body/material: Cast Steel / WCB. End connection: Wafer.
Available Size / Variant
Confirm size with quotation
Brand / MakeVTM
Catalogue ModelVA-40
Product FamilyButterfly Valve
MaterialCast Steel / WCB
Pressure / RatingClass 150
StandardBS EN 593/API 609
End ConnectionWafer
VTM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Product StandardBS EN 593/API 609
Pressure/Class RatingClass 150
Body Material / StandardCast Carbon Steel (ASTM A216 Gr. WCB)
Type of DiscCast Carbon Steel (ASTM A216 Gr. WCB)
SeatPTFE / 22.0 Kg/cm² Hyd. 7.4 Kg/cm² Air.
Seat Ring RetainerSS-304
OperationLever / Gear operated
End DetailsSuitable for Insertion B/W ASME B16.5 #150 & BS 1092 PN10/16
Test PressureShell: 30.0 Kg/cm² Hyd.
