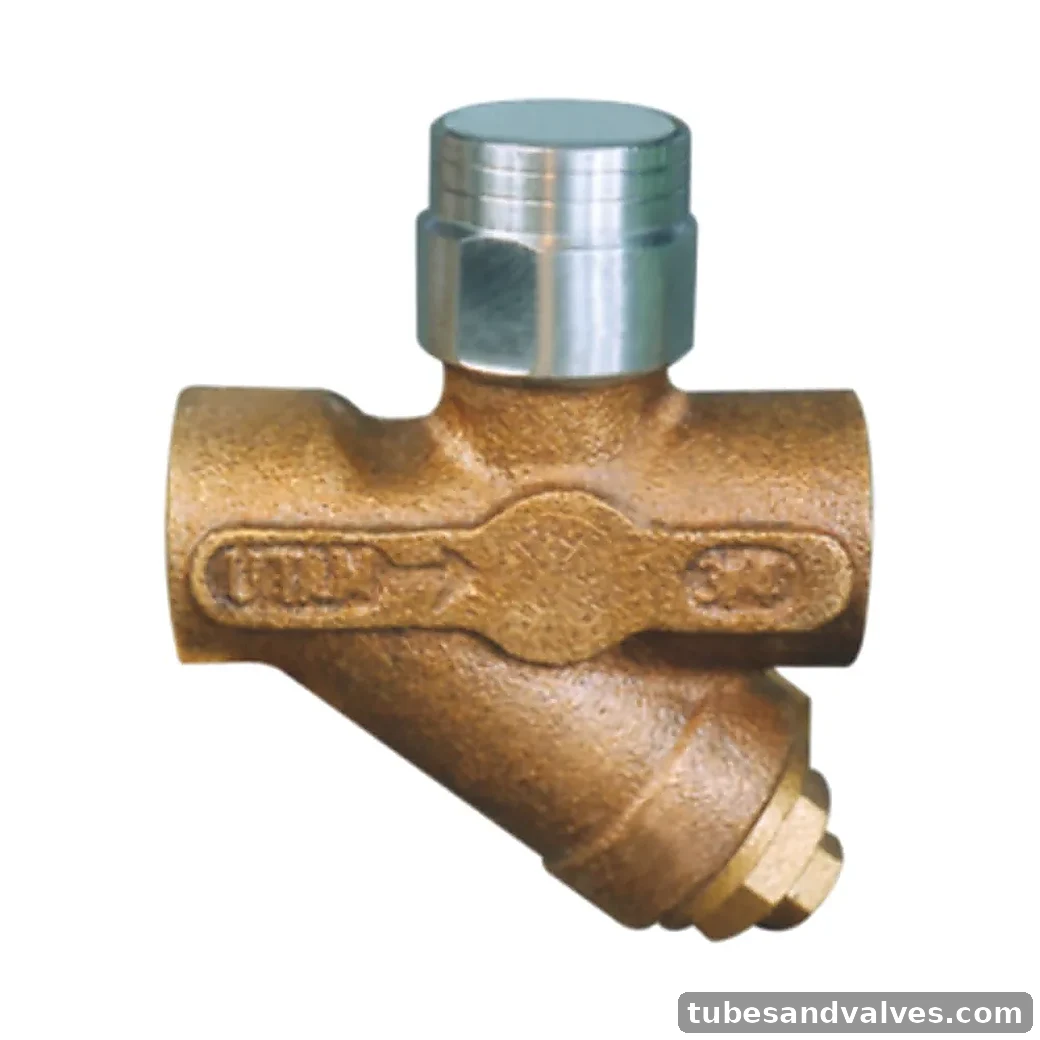

UTAM UV-13-S THERMODYNAMIC STEAM TRAP
UTAM UV-13-S THERMODYNAMIC STEAM TRAP. THERMODYNAMIC STEAM TRAP. Thermodynamic Type with Inbuilt Strainer. Rating: Max. BOP 17.24 Bar at 225°C.. Body/material: Bronze. End connection: Screwed.
Available Size / Variant
Confirm size with quotation
Brand / MakeUTAM
Catalogue ModelUV-13-S
Product FamilySteam Trap
MaterialBronze
Pressure / RatingMax. BOP 17.24 Bar at 225°C.
End ConnectionScrewed
UTAM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Body Material / StandardBronze (IBR Clause 282 (a) (IV) Gr.B)
TrimSS (ASTM A276 Type 410)
End DetailsScrewed Female BSP Taper Threads to BS:21
Working PressureMax. BOP 17.24 Bar at 225°C.
Test PressureShell Test Pressure 34.5 Bar Hyd.
CertificationIBR Certified
