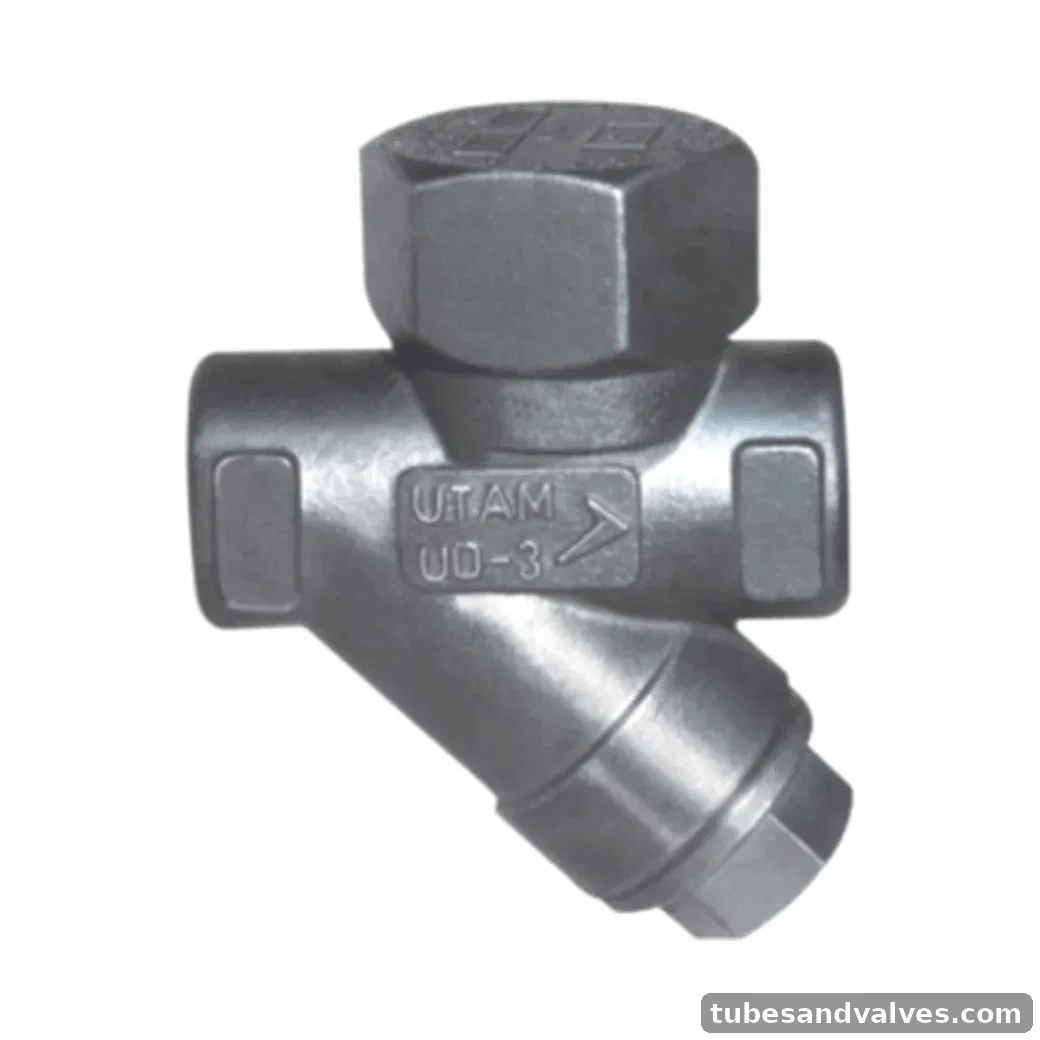

UTAM UV-156-S THERMODYNAMIC STEAM TRAP
UTAM UV-156-S THERMODYNAMIC STEAM TRAP. THERMODYNAMIC STEAM TRAP. Thermodynamic Type with Inbuilt Strainer. Rating: Suitable for Max. B.O.P. 31 Bar at 425°C. Body/material: SS (AISI 420). End connection: Screwed.
Available Size / Variant
Confirm size with quotation
Brand / MakeUTAM
Catalogue ModelUV-156-S
Product FamilySteam Trap
MaterialSS (AISI 420)
Pressure / RatingSuitable for Max. B.O.P. 31 Bar at 425°C
End ConnectionScrewed
UTAM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Body Material / StandardSS (AISI 420)
TrimDisc (ASTM A276 Type 410)
End DetailsScrewed Female BSP Parallel Threads to BS:21
Working PressureSuitable for Max. B.O.P. 31 Bar at 425°C
Test PressureShell Test Pressure 62 Bar Hyd.
CertificationIBR Certified
