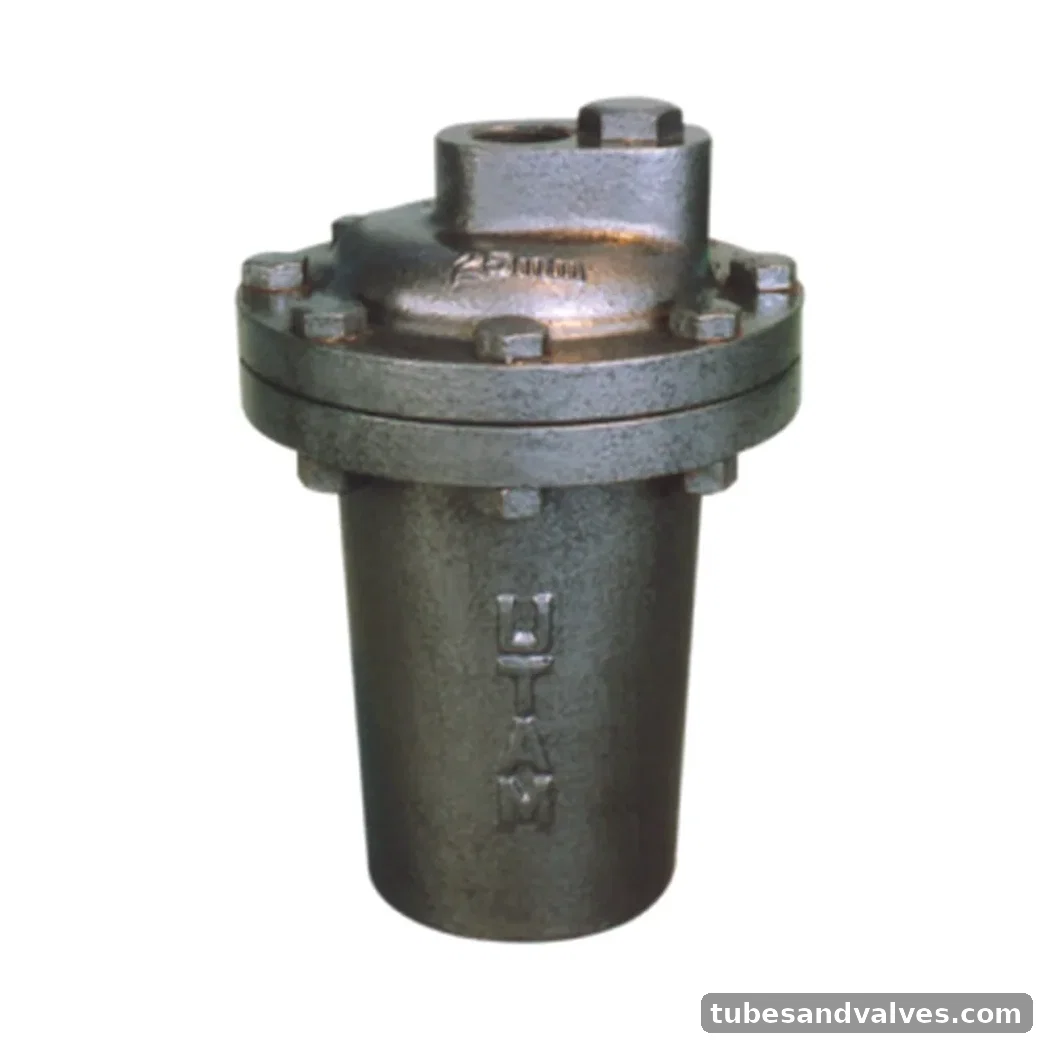

UTAM UV-206-S INVERTED BUCKET STEAM TRAP VERTICAL TYPE
UTAM UV-206-S INVERTED BUCKET STEAM TRAP VERTICAL TYPE. INVERTED BUCKET STEAM TRAP VERTICAL TYPE. Inverted Bucket Type. Rating: Max. BOP 13 Bar. Body/material: Ductile Iron. End connection: Screwed.
Available Size / Variant
Confirm size with quotation
Brand / MakeUTAM
Catalogue ModelUV-206-S
Product FamilySteam Trap
MaterialDuctile Iron
Pressure / RatingMax. BOP 13 Bar
End ConnectionScrewed
UTAM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Body Material / StandardS.G. Iron (ASTM A536-1980)
TrimBUCKET:SS (Type304)
End DetailsScrewed Female BSP Parallel Threads to BS:21
Working PressureMax. BOP 13 Bar
Test PressureShell Test Pressure 26 Bar Hyd.
Maximum Working Temperature225° C
CertificationIBR Certified
