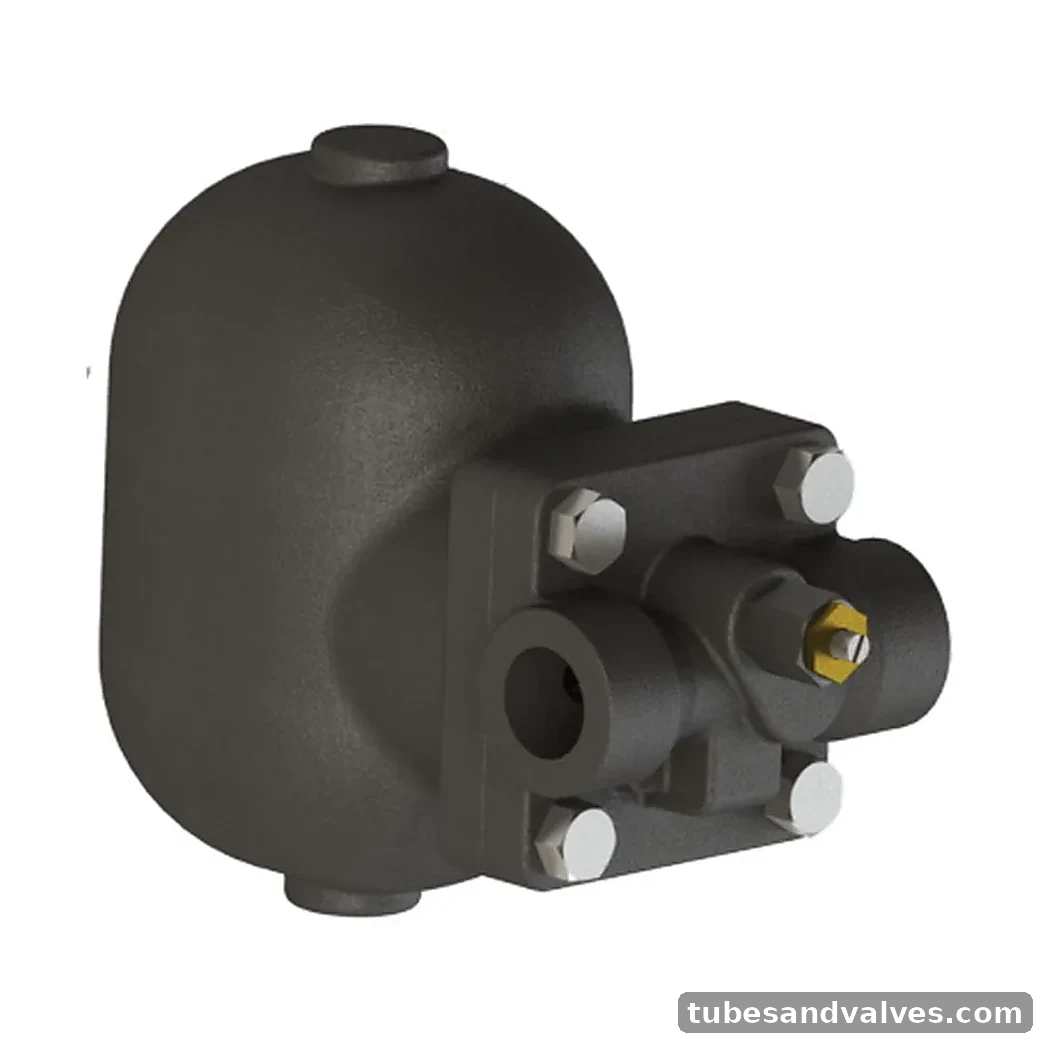

UTAM UV-221-S BALL FLOAT STEAM TRAP (IBR CERTIFIED)
UTAM UV-221-S BALL FLOAT STEAM TRAP (IBR CERTIFIED). BALL FLOAT STEAM TRAP (IBR CERTIFIED). Float Type. Rating: PN-16. Body/material: S.G iron (ASTM A536-1980). End connection: Screwed.
Available Size / Variant
Confirm size with quotation
Brand / MakeUTAM
Catalogue ModelUV-221-S
Product FamilySteam Trap
MaterialS.G iron (ASTM A536-1980)
Pressure / RatingPN-16
StandardISO-6704, ISO-6948
End ConnectionScrewed
UTAM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Product StandardISO-6704, ISO-6948
Type of PatternStraight Pattern
Pressure/Class RatingPN-16
Body Material / StandardS.G iron (ASTM A536-1980)
FloatSS-316
TrimSS-316
End DetailsScrewed Female BSP Parallel Threads to BS:21
Working Pressure10 Bar @ 180
CertificationIBR Certified
