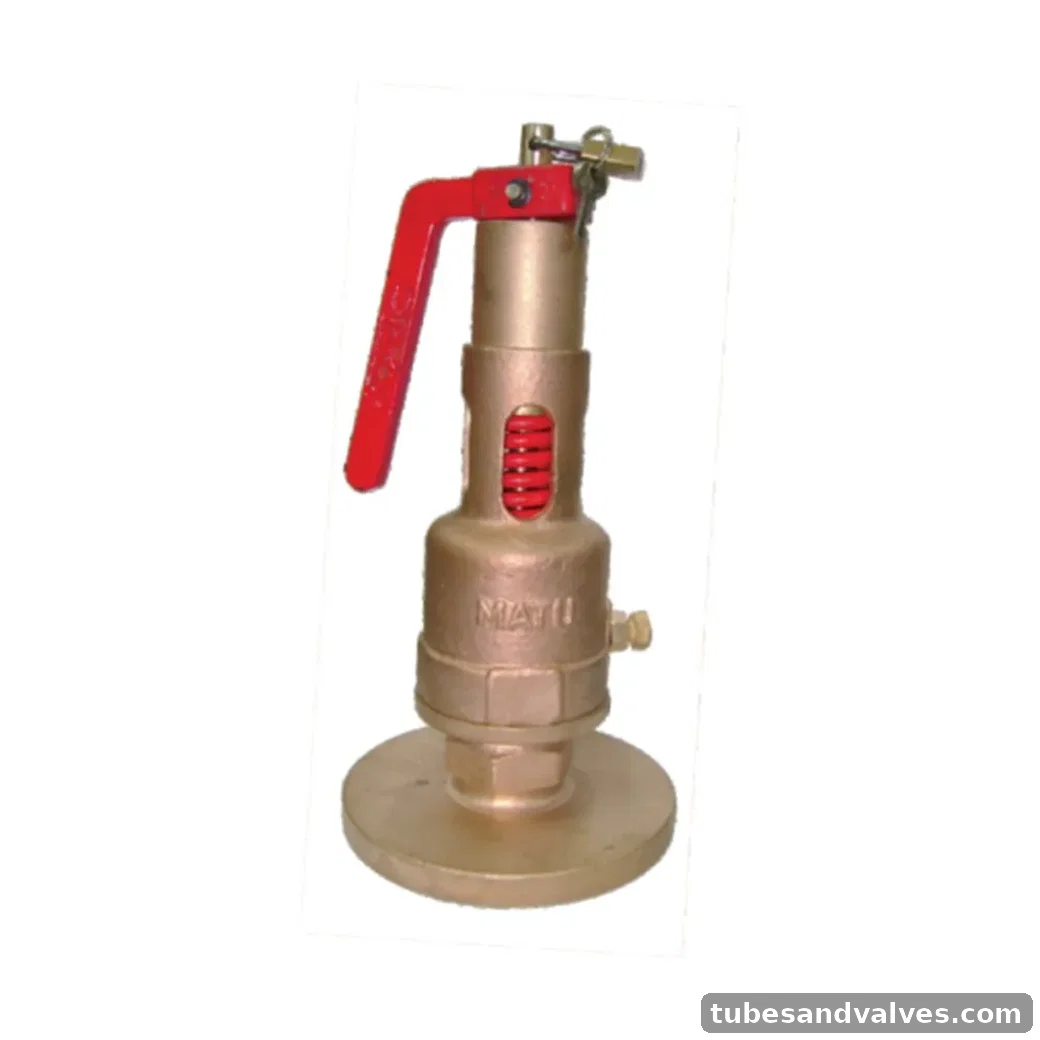

UTAM UV-146-S SAFETY VALVE
UTAM UV-146-S SAFETY VALVE. SAFETY VALVE. Spring Loaded, Open Discharge. Rating: Max. 10.34 Bar at 225°C.. Body/material: Bronze. End connection: Flanged.
Available Size / Variant
Confirm size with quotation
Brand / MakeUTAM
Catalogue ModelUV-146-S
Product FamilySafety / Relief Valve
MaterialBronze
Pressure / RatingMax. 10.34 Bar at 225°C.
End ConnectionFlanged
UTAM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Body Material / StandardBronze (IBR Clause 282 (a) (IV) Gr.B)
Type of SeatIntegral Seat
Type of DiscRenewable Disc
TrimCu-Alloy
End DetailsFlanges as per BS:10 Table-F (Undrilled)
Working PressureMax. 10.34 Bar at 225°C.
Test PressureShell Test Pressure 20.7 Bar Hyd.
CertificationIBR Certified
