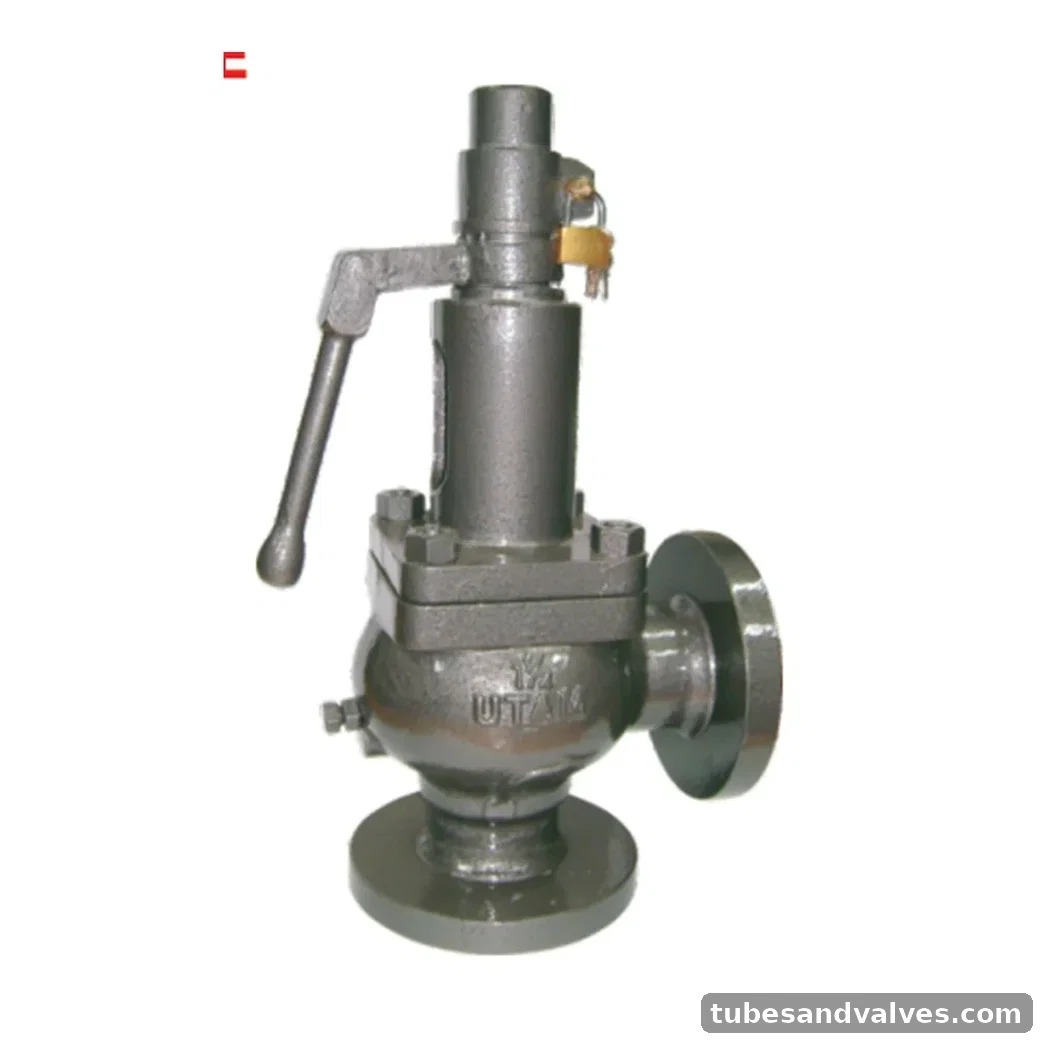

UTAM UV-212-S SINGLE POST HIGH LIFT SAFETY VALVE
UTAM UV-212-S SINGLE POST HIGH LIFT SAFETY VALVE. NGLE POST HIGH LIFT SAFETY VALVE. Spring Loaded, High Lift. Rating: Max. BOP 10.34 Bar. Body/material: Ductile Iron. End connection: Flanged.
Available Size / Variant
Confirm size with quotation
Brand / MakeUTAM
Catalogue ModelUV-212-S
Product FamilySafety / Relief Valve
MaterialDuctile Iron
Pressure / RatingMax. BOP 10.34 Bar
End ConnectionFlanged
UTAM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Type of PatternRight AnglePattern
Body Material / StandardS.G. Iron (ASTM A536-1980)
Type of SeatRenewable Seat f
Type of DiscRenewable Disc
TrimSeat:SS (ASTM A276 Type 410), Stem SS (ASTM A276 Type 410)
FastenerCarbon Steel (BS:916)
GasketCompressed Asbestos
End DetailsInlet Flanges to BS:10 Table-F (Undrilled) Outlet Flanges to BS:10 Table-D
Working PressureMax. BOP 10.34 Bar
Test PressureShell Test Pressure 20.7 Bar Hyd.
Maximum Working Temperature225° C
CertificationIBR Certified
