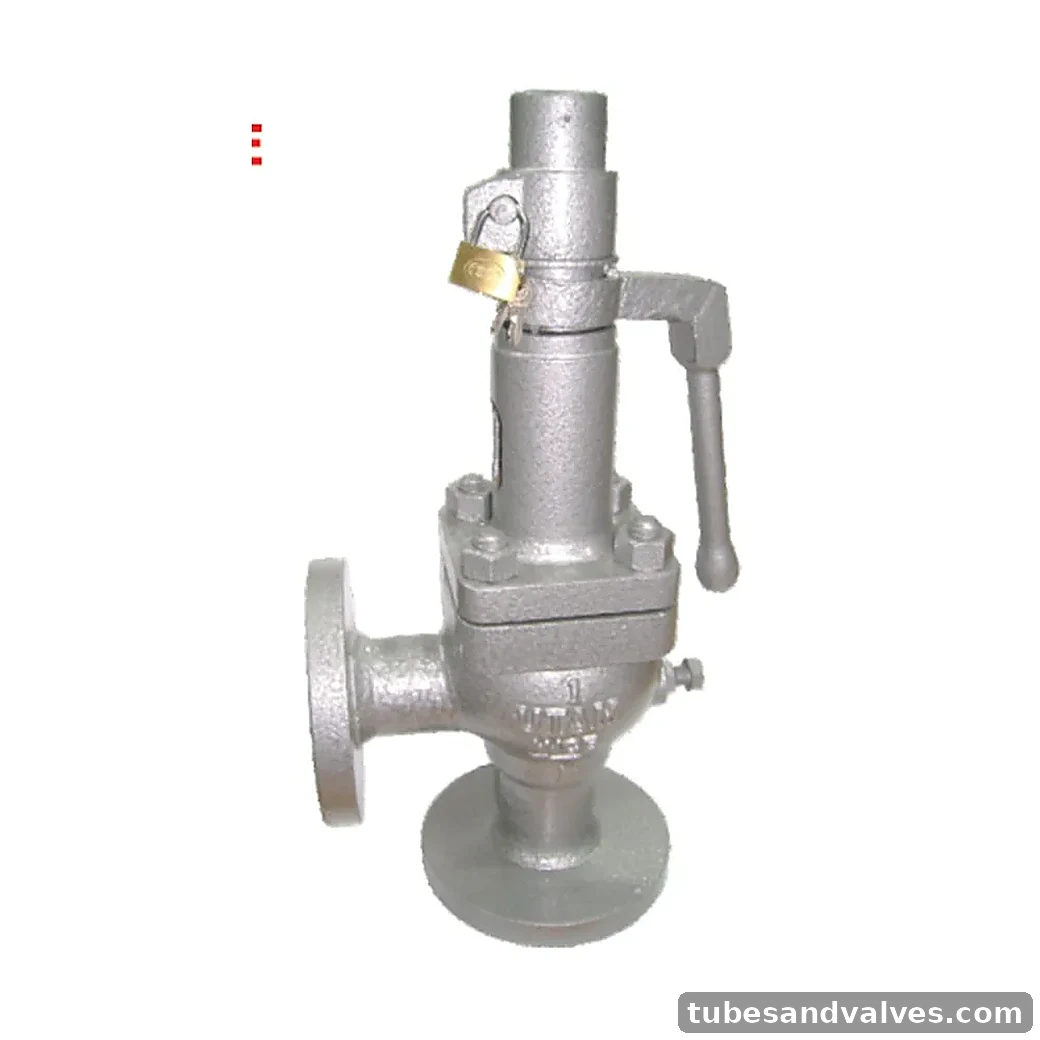

UTAM UV-274-S SINGLE POST HIGH LIFT SAFETY VALVE
UTAM UV-274-S SINGLE POST HIGH LIFT SAFETY VALVE. NGLE POST HIGH LIFT SAFETY VALVE. Spring Loaded, High lift. Rating: Max. BOP 17.24 Bar at 425°C. Body/material: Cast Steel / WCB. End connection: Flanged.
Available Size / Variant
Confirm size with quotation
Brand / MakeUTAM
Catalogue ModelUV-274-S
Product FamilySafety / Relief Valve
MaterialCast Steel / WCB
Pressure / RatingMax. BOP 17.24 Bar at 425°C
End ConnectionFlanged
UTAM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Type of PatternRight Angle Pattern
Body Material / StandardCast Carbon Steel (IBR Clause 73 to 80 Gr.B) (ASTM A216 Gr. WCB)
Type of SeatRenewable Seat
Type of DiscRenewable Disc
TrimSeat SS(ASTM A276 Type 410) Stem SS(ASTM A276 Type 410)
FastenerCarbon Steel (BS:916)
GasketCompressed Asbestos
End DetailsInlet Flanges to BS:10 Table-H (Undrilled) Outlet Flanges to BS:10 Table-D
Working PressureMax. BOP 17.24 Bar at 425°C
Test PressureShell Test Pressure 34.5 Bar Hyd.
CertificationIBR Certified
