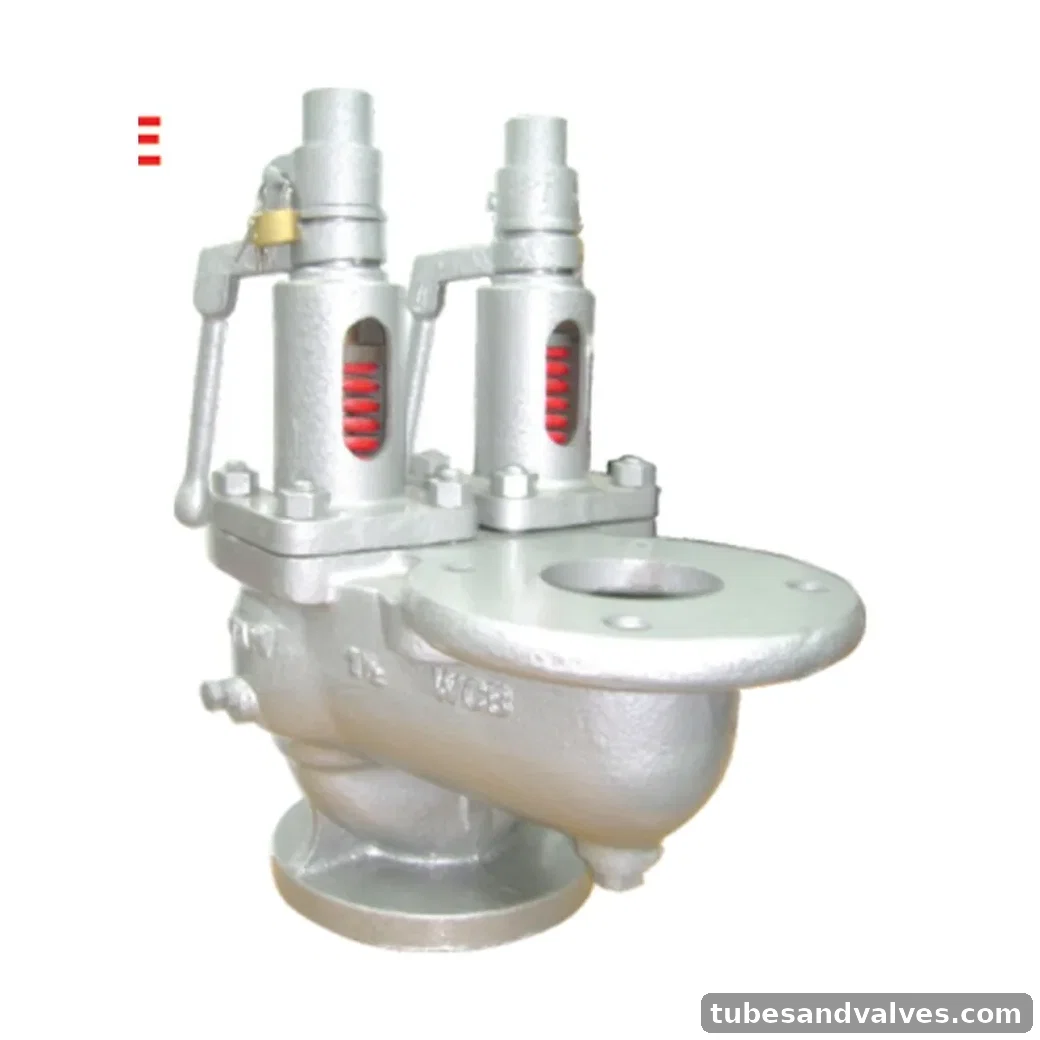

UTAM UV-275-S DOUBLE POST HIGH LIFT SAFETY VALVE
UTAM UV-275-S DOUBLE POST HIGH LIFT SAFETY VALVE. DOUBLE POST HIGH LIFT SAFETY VALVE. Spring Loaded, High lift. Rating: Max.BOP 17.24 bar at 425°C. Body/material: Cast Steel / WCB. End connection: Flanged.
Available Size / Variant
Confirm size with quotation
Brand / MakeUTAM
Catalogue ModelUV-275-S
Product FamilySafety / Relief Valve
MaterialCast Steel / WCB
Pressure / RatingMax.BOP 17.24 bar at 425°C
End ConnectionFlanged
UTAM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Body Material / StandardCast Carbon Steel (IBR Clause 73 to 80 Gr.B) (ASTM A 216 Gr.WCB)
Type of SeatRenewable Seat
Type of DiscRenewable Disc
TrimSeat: SS(ASTM A 276 Type 410) Stem: SS(ASTM A 276 Type 410)
FastenerCarbon Steel (BS:916)
GasketCompressed Asbestos
End DetailsFlanged as per BS:10 Table-F =
Working PressureMax.BOP 17.24 bar at 425°C
Test PressureShell Test Pressure 34.5 Bar Hyd.
CertificationIBR Certified
