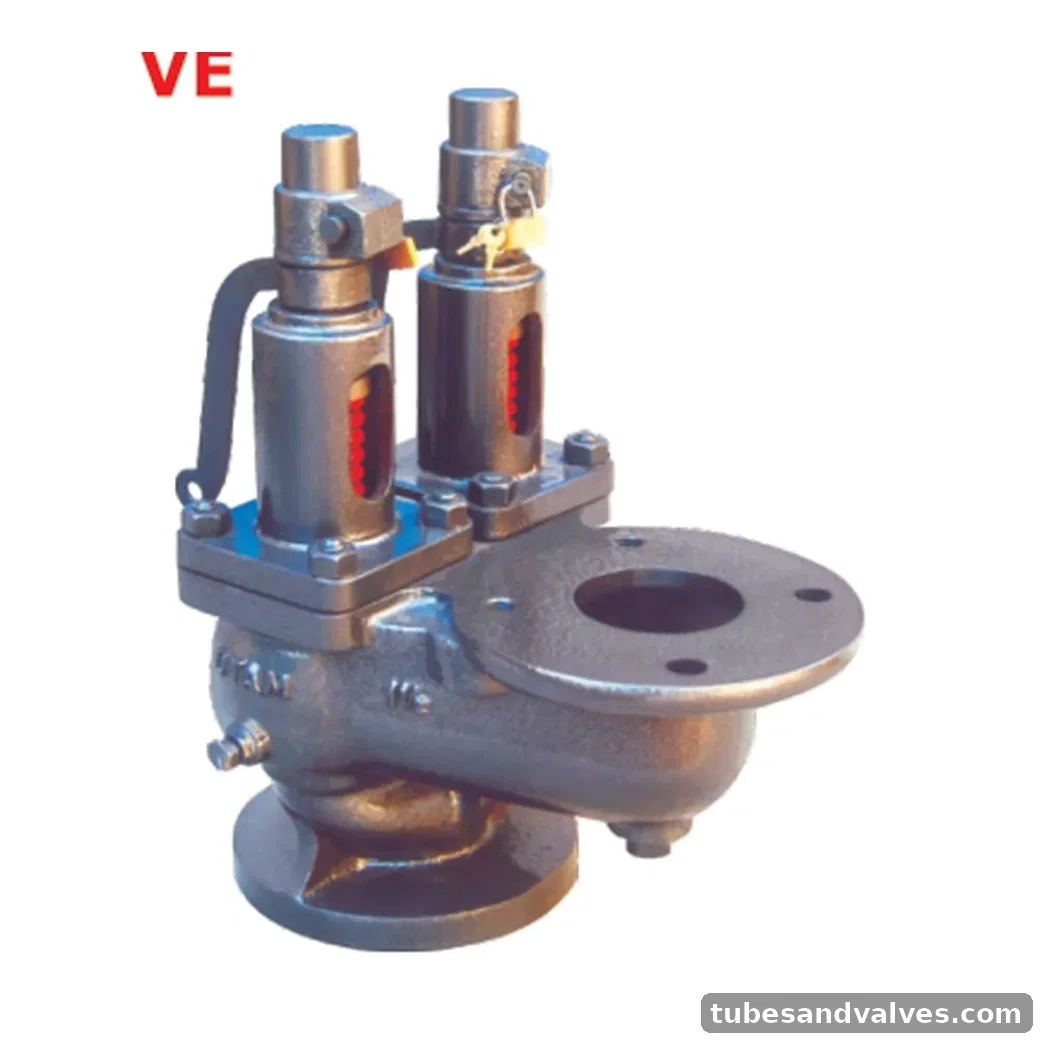

UTAM UV-213-S DOUBLE POST HIGH LIFT SAFETY VALVE
UTAM UV-213-S DOUBLE POST HIGH LIFT SAFETY VALVE. DOUBLE POST HIGH LIFT SAFETY VALVE. Spring Loaded, High Lift. Rating: Max. BOP10.34 Bar. Body/material: Ductile Iron. End connection: Flanged.
Available Size / Variant
Confirm size with quotation
Brand / MakeUTAM
Catalogue ModelUV-213-S
Product FamilySafety / Relief Valve
MaterialDuctile Iron
Pressure / RatingMax. BOP10.34 Bar
End ConnectionFlanged
UTAM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Body Material / StandardS.G. Iron (ASTM A536-1980)
Type of SeatRenewable Seat
Type of DiscRenewable Disc
TrimSeat SS (ASTM A276 Type 410) Stem SS (ASTM A276 Type 410)
FastenerCarbon Steel (BS:916)
GasketCompressed Asbestos
End DetailsInlet Flanges to BS:10 Table-F (Undrilled)
Working PressureMax. BOP10.34 Bar
Test PressureShell Test Pressure 20.7 Bar Hyd.
Maximum Working Temperature225° C
CertificationIBR Certified
