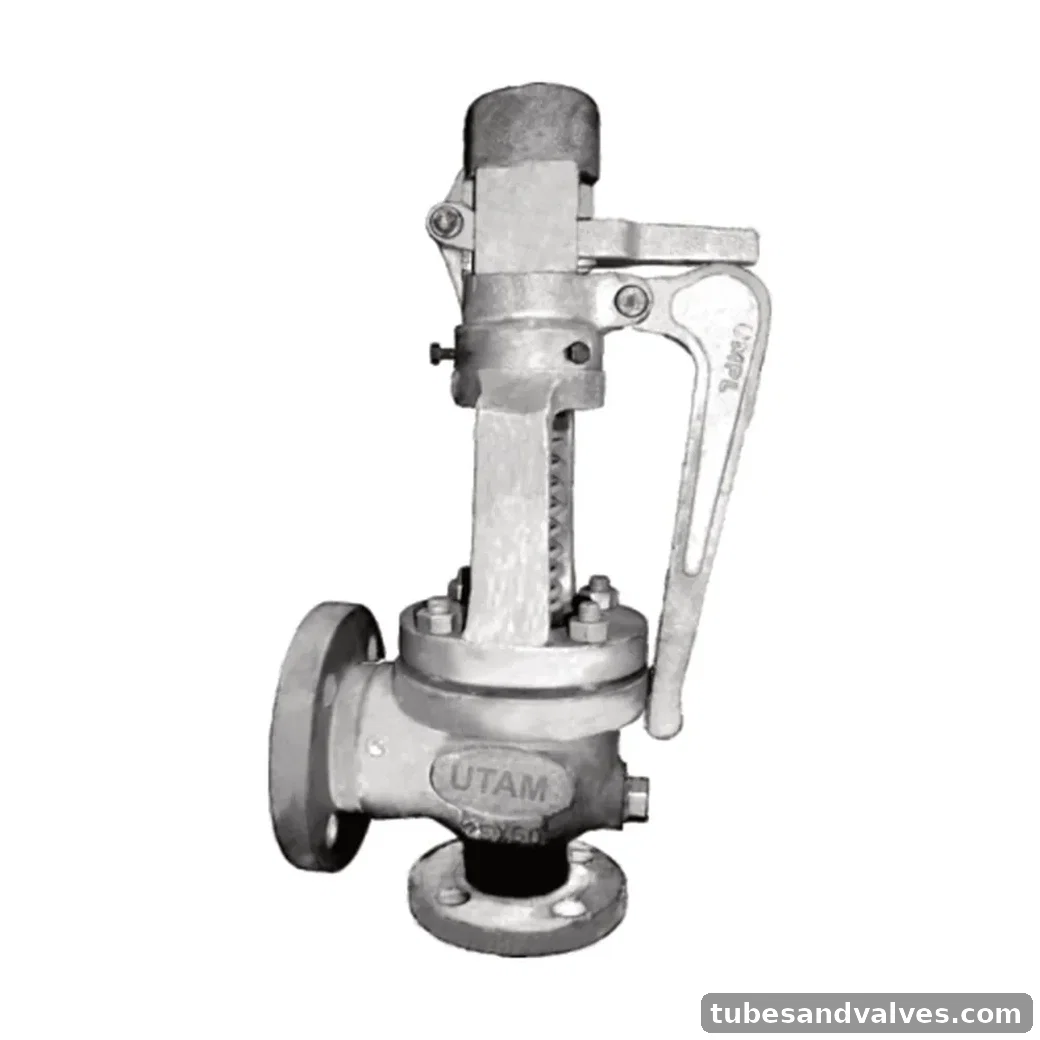

UTAM UV-218-S FULL LIFT SAFETY VALVE
UTAM UV-218-S FULL LIFT SAFETY VALVE. FULL LIFT SAFETY VALVE. Spring Loaded, Full lift. Rating: Max. BOP 10.34 Bar at 225°C. Body/material: Ductile Iron. End connection: Flanged.
Available Size / Variant
Confirm size with quotation
Brand / MakeUTAM
Catalogue ModelUV-218-S
Product FamilySafety / Relief Valve
MaterialDuctile Iron
Pressure / RatingMax. BOP 10.34 Bar at 225°C
End ConnectionFlanged
UTAM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Body Material / StandardS.G. Iron (ASTM A536-1982)
Type of SeatRenewable Seat
Type of DiscRenewable Disc
TrimSeat :SS(ASTM A276 Type420) Spindle:SS(ASTM A276 Type 410)
FastenerCarbon Steel (BS:916)
GasketCompressed Asbestos
End DetailsInlet: Flanged as per ANSI CL-300 Outlet: Flanged as per ANSI CL-150
Working PressureMax. BOP 10.34 Bar at 225°C
Test PressureShell Test 20.7 Bar Hyd.
CertificationIBR Certified
