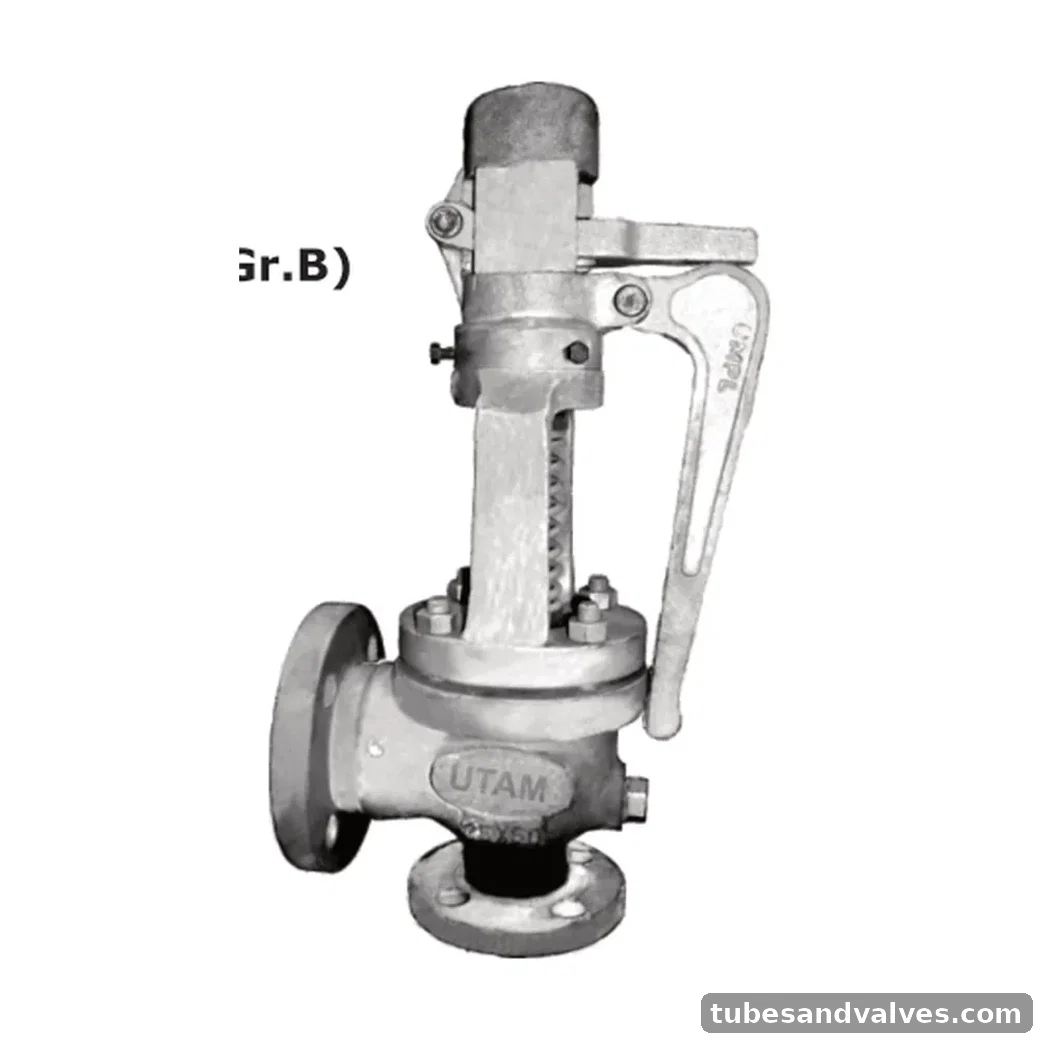

UTAM UV-280-S FULL LIFT SAFETY VALVE
UTAM UV-280-S FULL LIFT SAFETY VALVE. FULL LIFT SAFETY VALVE. Spring Loaded, Full lift Bolted Cover. Rating: Class-150. Body/material: Cast Steel / WCB. End connection: Flanged.
Available Size / Variant
Confirm size with quotation
Brand / MakeUTAM
Catalogue ModelUV-280-S
Product FamilySafety / Relief Valve
MaterialCast Steel / WCB
Pressure / RatingClass-150
StandardBS:1873
End ConnectionFlanged
UTAM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Body Material / StandardCast Carbon Steel (IBR Clause 73 to 80 Gr.B) (ASTM A 216 Gr.WCB) / Cast Carbon Steel (IBR Clause 73 to 80 Gr.B) (ASTM A:216 Gr. WCB)
Type of SeatRenewable Seat
Type of DiscRenewable Disc
TrimSeat: SS(ASTM A 276 Type420) Spindle: SS(ASTM A 276 Type 410) / SS (ASTM A216 Type 410)
FastenerCarbon Steel (BS:916)
GasketSpiral wound graphite filled
End DetailsInlet: Flanged as per ANSI CL-300 Outlet: Flanged as per ANSI CL-150 / Flanges as per ASME B16.5 CL-150 R.F. (Undrilled)
Working PressureMax.BOP 17.24 bar at 425°C
Test PressureShell Test Pressure 34.5 Bar Hyd. / B.T.P. 30 Bar Hyd. S.1.P. 22 Bar Hyd.
Additional catalogue detailaf bar Air
roductWY Type of Pattern. Straight Pattern
Product StandardBS:1873
Pressure/Class RatingClass-150
Maximum Working Temperature425°C
CertificationIBR Certified
