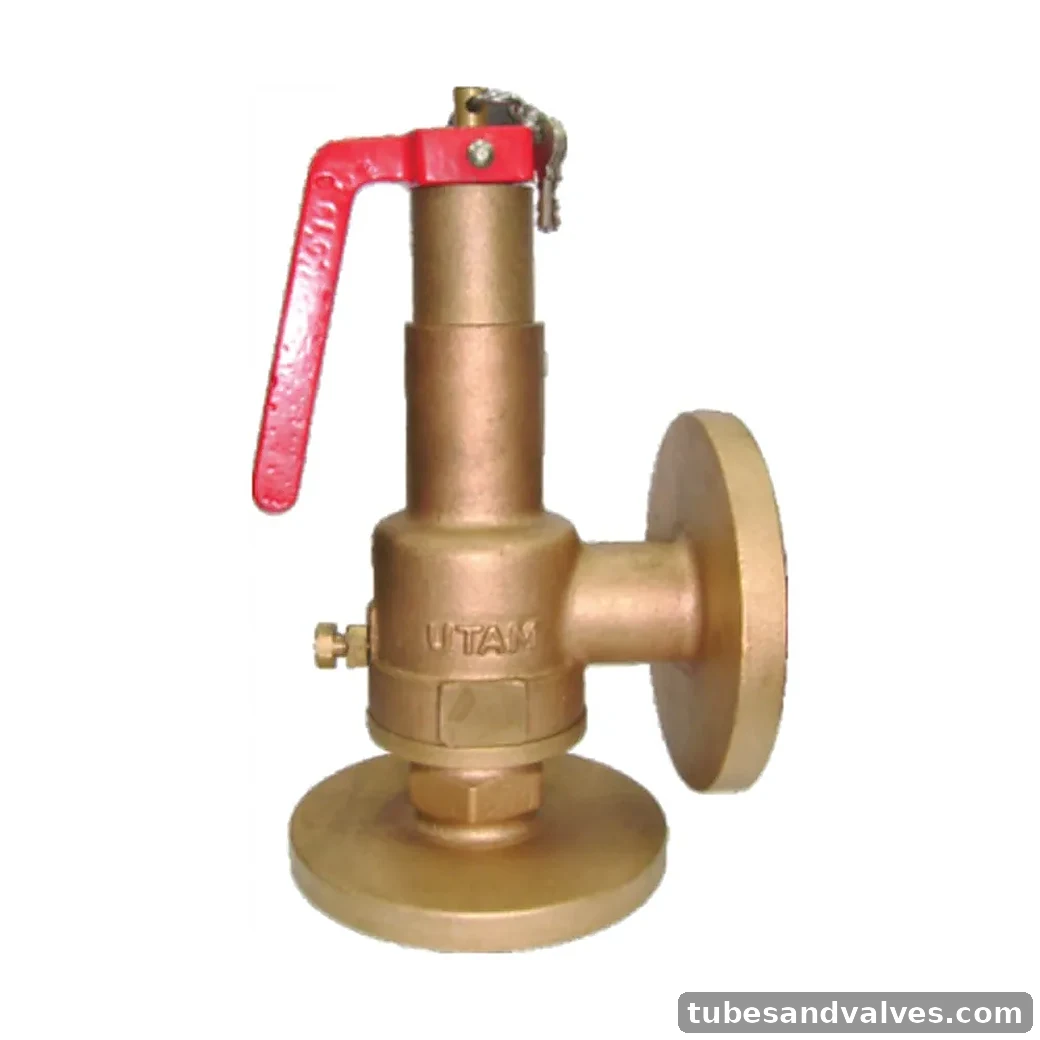

UTAM UV-148-S SAFETY VALVE
UTAM UV-148-S SAFETY VALVE. SAFETY VALVE. Spring Loaded, Enclosed Discharge. Rating: Max. 10.34 Bar at 225°C.. Body/material: Bronze. End connection: Flanged.
Available Size / Variant
Confirm size with quotation
Brand / MakeUTAM
Catalogue ModelUV-148-S
Product FamilySafety / Relief Valve
MaterialBronze
Pressure / RatingMax. 10.34 Bar at 225°C.
End ConnectionFlanged
UTAM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Type of PatternRight Angle Type
Body Material / StandardBronze (IBR Clause 282 (a) (IV) Gr.B)
Type of SeatIntegral Seat
Type of DiscRenewable Disc
TrimCu-Alloy
End DetailsInlet & Outlet End: Flanges as per BS:10 Table-F (Undrilled)
Working PressureMax. 10.34 Bar at 225°C.
Test PressureShell Test Pressure 20.7 Bar Hyd.
CertificationIBR Certified
