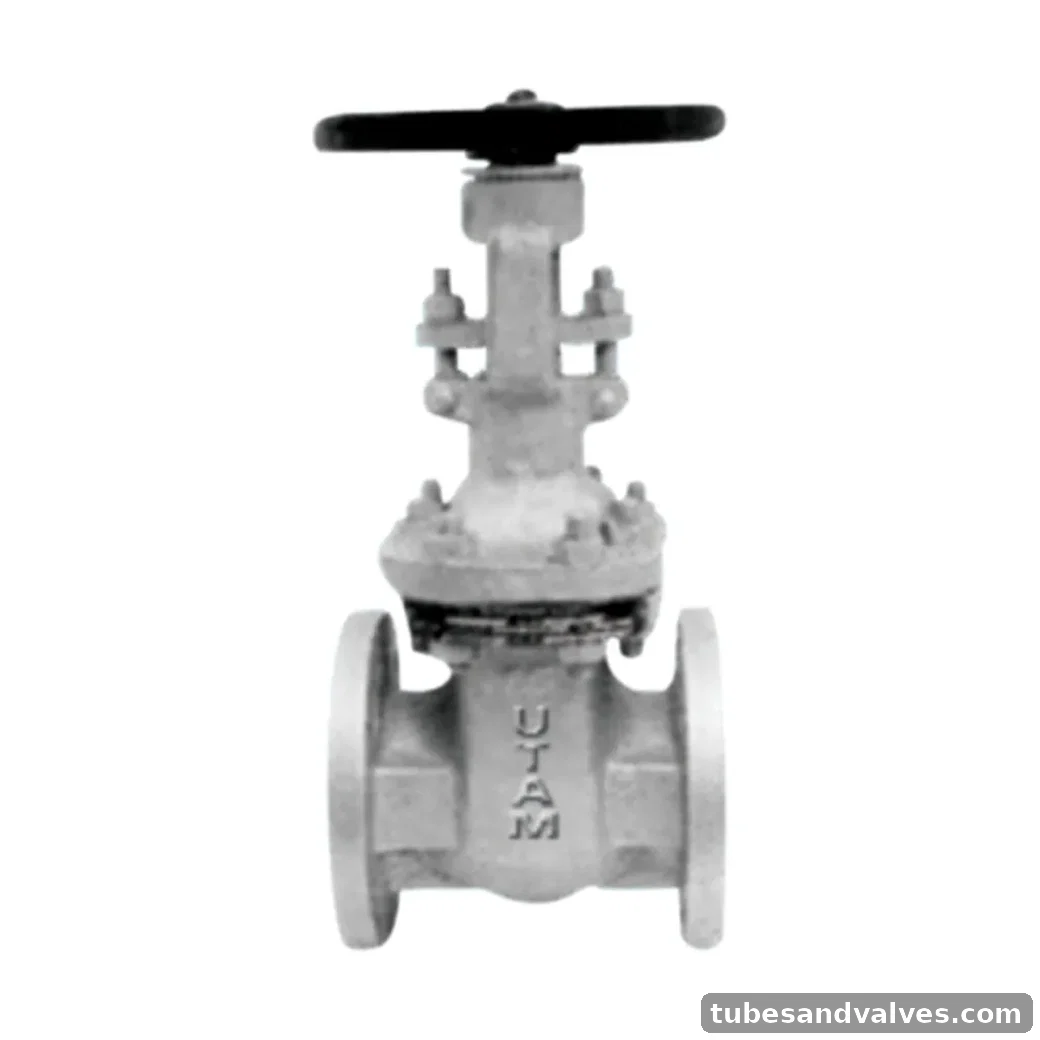

UTAM UV-255-S GATE VALVE
UTAM UV-255-S GATE VALVE. GATE VALVE. Bolted Bonnet, O/S & Yoke Type, Rising Stem. Rating: Class-150 4. Body/material: Cast Steel / WCB. End connection: Flanged.
Available Size / Variant
Confirm size with quotation
Brand / MakeUTAM
Catalogue ModelUV-255-S
Product FamilyGate Valve
MaterialCast Steel / WCB
Pressure / RatingClass-150 4
StandardBS:1414:75/API:600:97/API 6D:2002 7
End ConnectionFlanged
UTAM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Product StandardBS:1414:75/API:600:97/API 6D:2002 7
Pressure/Class RatingClass-150 4
Body Material / StandardCast Steel (ASTM A216 Gr.WCB) z
Type of SeatRenewable Seat A
Type of WedgeSolid or Flexible Wedge oft
TrimSS (ASTM A276 Type 410 or its Equivalant)
End DetailsFlanges as per ASME B16.5:96 Class-150 RF (Undrilled)
Test PressureB.T.Pu30.Bar Hyd. Se ll ha
Maximum Working Temperature425°C.
CertificationIBR Certified
