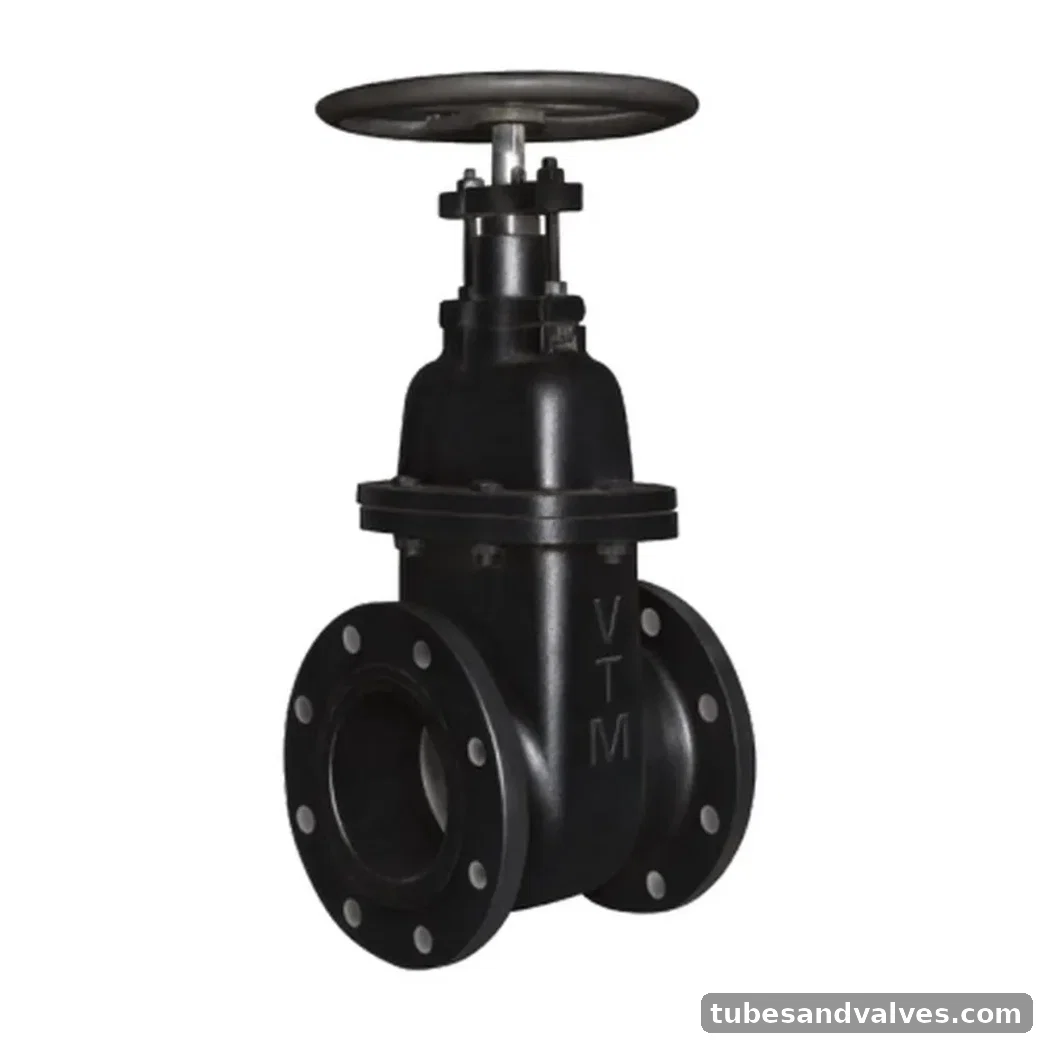

VTM VA-15 C.I. SLUICE VALVE F/E
VTM VA-15 C.I. SLUICE VALVE F/E. C.I. SLUICE VALVE F/E. Rating: PN16. Body/material: Cast Iron. End connection: Flanged.
Available Size / Variant
Confirm size with quotation
Brand / MakeVTM
Catalogue ModelVA-15
Product FamilyGate Valve
MaterialCast Iron
Pressure / RatingPN16
StandardIS 14846 PD Type (Short Body)
End ConnectionFlanged
VTM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Product StandardIS 14846 PD Type (Short Body)
Pressure/Class RatingPN16
Body Material / StandardCast Iron (IS 210 Gr. FG220)
TrimStainless Steel (ASTM A276 Gr. 410) Body Seat Facing Cast Bronze (BS: 1400 Gr. LG2) Wedge Seat Facing Cast Bronze (BS: 1400 Gr. LG2)
End DetailsFlanges Drilled as per ASME B16.5 #150 BS 10 Table D/E, BS 1092 PN10/16 & IS 1538
Test PressureShell: 24.5 Kg/cm² Hyd.
Seat18 Kg/cm² Hyd.
