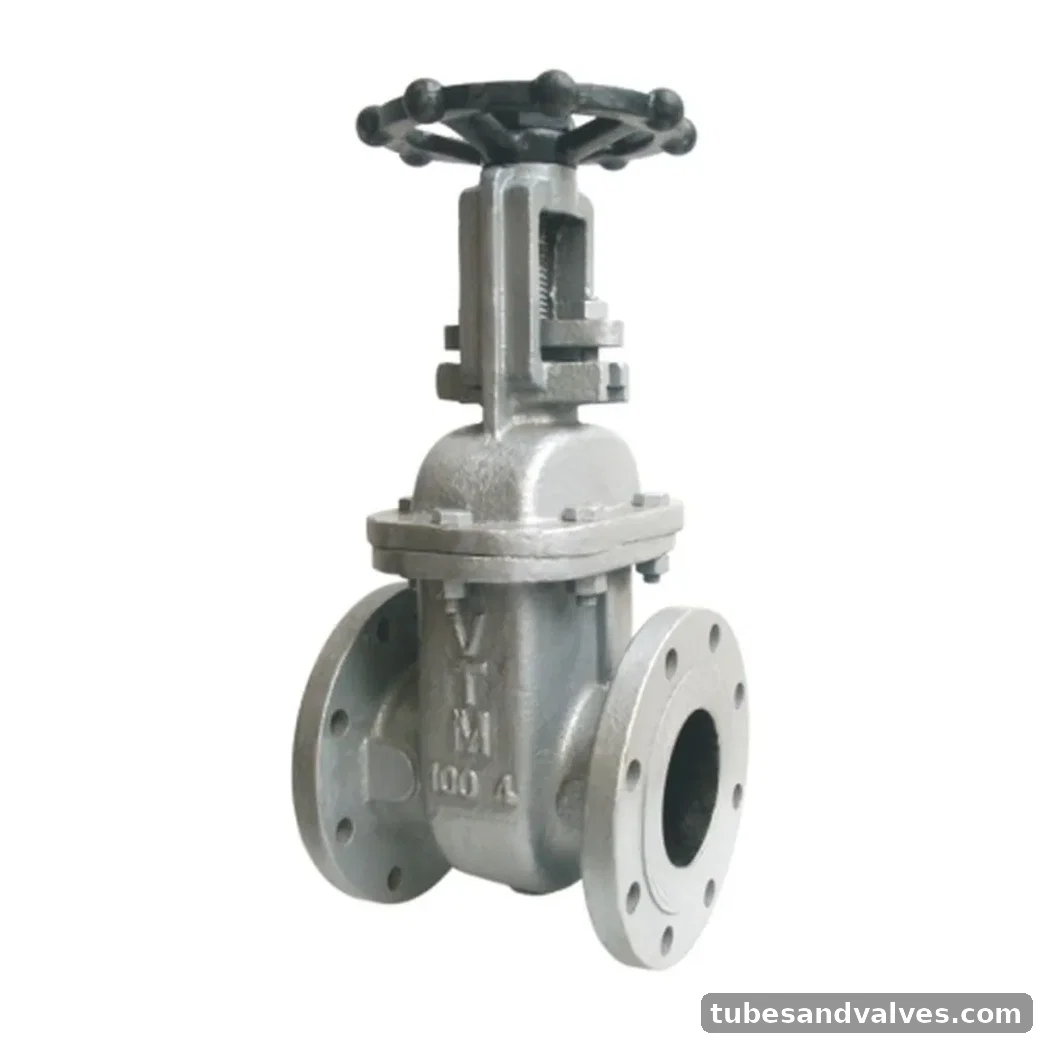

VTM VA-16 C.I. GATE VALVE
VTM VA-16 C.I. GATE VALVE. C.I. GATE VALVE. Rating: PN16. Body/material: Cast Iron. End connection: Flanged.
Available Size / Variant
Confirm size with quotation
Brand / MakeVTM
Catalogue ModelVA-16
Product FamilyGate Valve
MaterialCast Iron
Pressure / RatingPN16
StandardBS EN 1171/ 1S 14846
End ConnectionFlanged
VTM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Product StandardBS EN 1171/ 1S 14846
Pressure/Class RatingPN16
Body Material / StandardCast Iron (1S 210 Gr. FG220)
TrimStainless Steel (ASTM A276 Gr. 410) Body Seat Facing Cast Bronze (BS: 1400 Gr. LG2) Wedge Seat Facing Cast Bronze (BS: 1400 Gr. LG2)
Gland PackingGraphite Asbestos
End DetailsFlanges Drilled as per ASME B16.5 #150 BS 10 Table D/E & BS 1092 PN10/16
Test PressureShell: 24.5 Kg/cm² Hyd.
Seat18 Kg/cm² Hyd.
