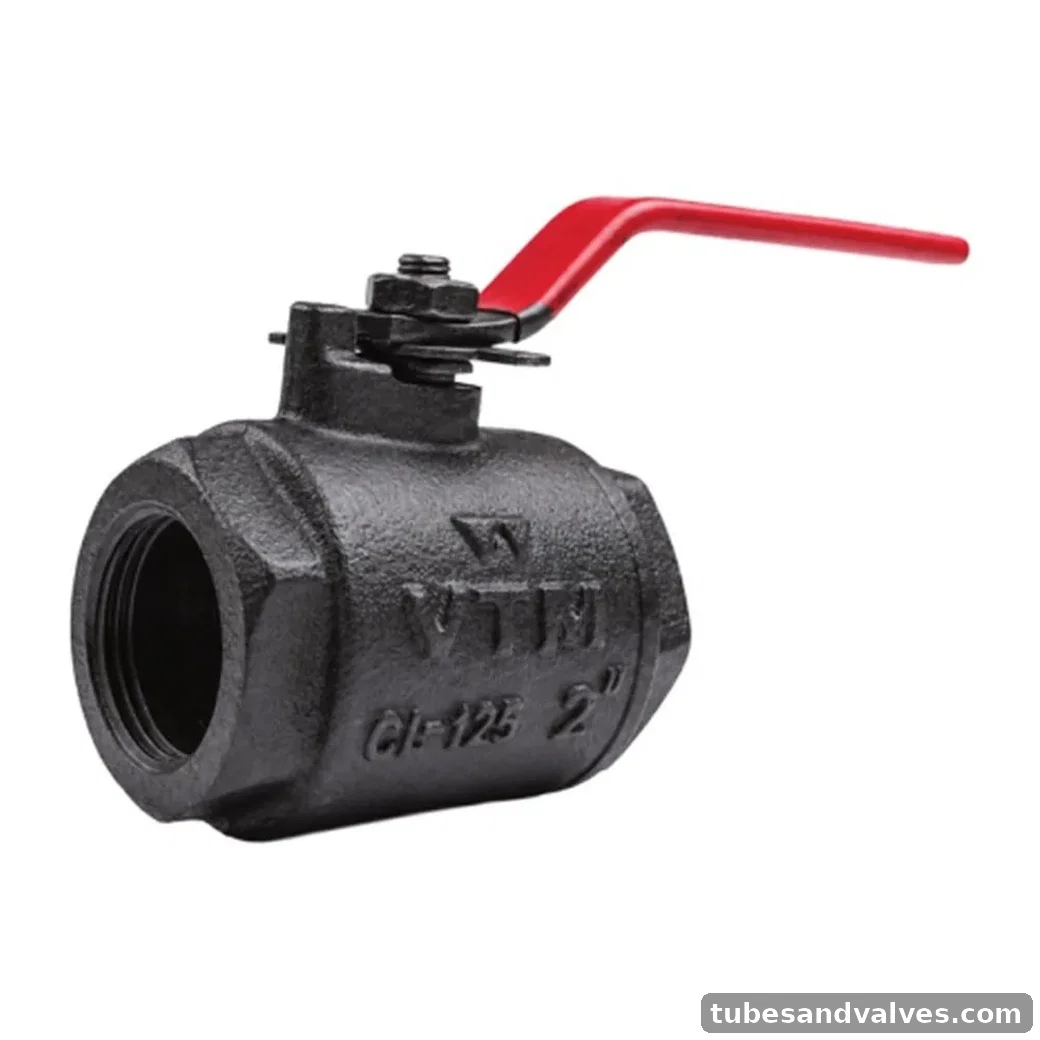

VTM VA-2 C.I. BALL VALVE 2PC. DESIGN S/E
VTM VA-2 C.I. BALL VALVE 2PC. DESIGN S/E. C.I. BALL VALVE 2PC. DESIGN S/E. Rating: PN16/Class 125. Body/material: Cast Iron. End connection: Screwed.
Available Size / Variant
Confirm size with quotation
Brand / MakeVTM
Catalogue ModelVA-2
Product FamilyBall Valve
MaterialCast Iron
Pressure / RatingPN16/Class 125
StandardIs: 9890
End ConnectionScrewed
VTM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Product StandardIs: 9890
Pressure/Class RatingPN16/Class 125
Port OpeningFull Bore
Body Material / StandardCast Iron (|S 210 Gr. FG220)
BallStainless Steel (AISI-202)
StemStainless Steel (ASTM A276 Gr. 410)
Seat Ring & Gland PackingVirgin PTFE
End Details‘Screwed Female BSP Parallel Threads to BS: 21
Test PressureShell: 24.5 Kg/cm² Hyd.
Seat18.0 Kg/cm² Hyd. 7.0 Kg/em? Air
