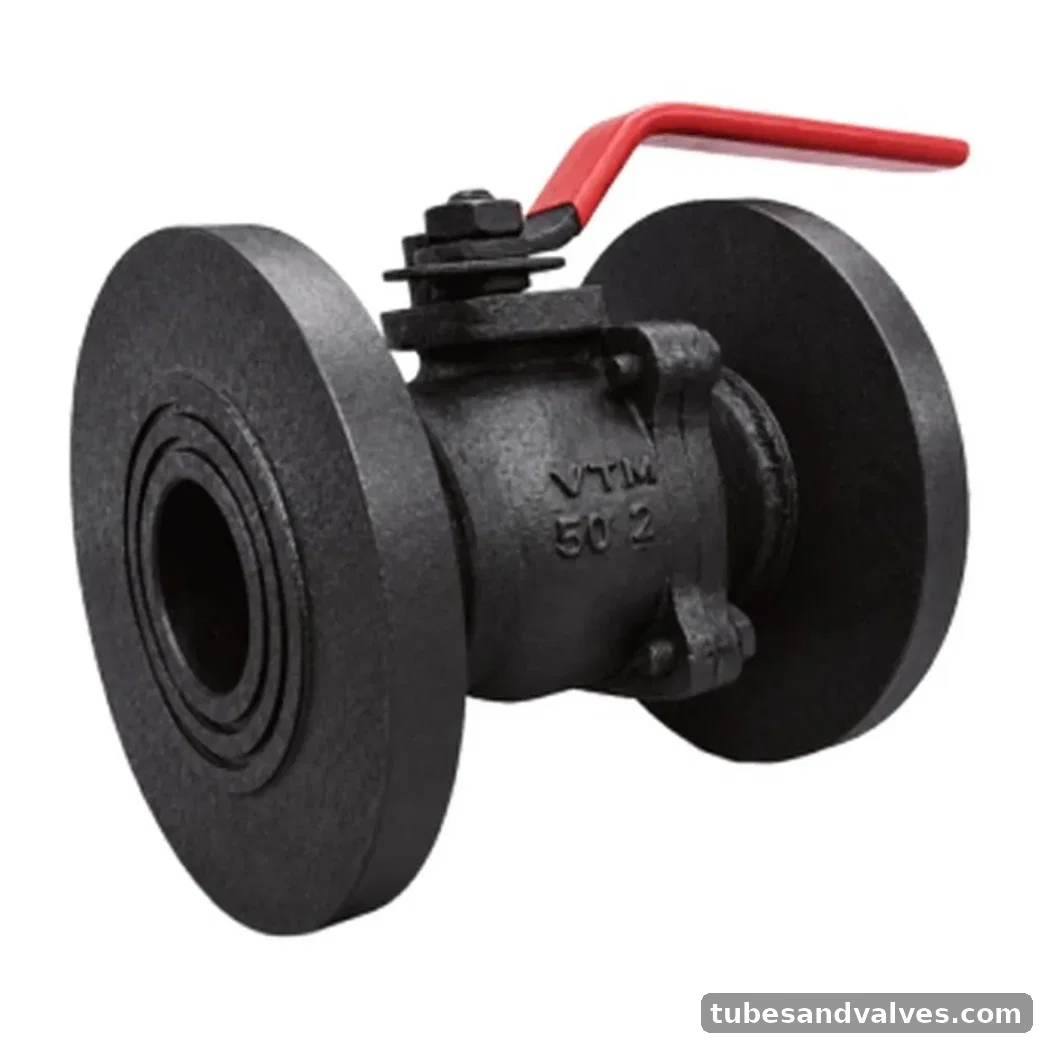

VTM VA-24 C.I. BALL VALVE 2 PC DESIGN F/E
VTM VA-24 C.I. BALL VALVE 2 PC DESIGN F/E. C.I. BALL VALVE 2 PC DESIGN F/E. Rating: PN1G. Body/material: Cast Iron. End connection: Flanged.
Available Size / Variant
Confirm size with quotation
Brand / MakeVTM
Catalogue ModelVA-24
Product FamilyBall Valve
MaterialCast Iron
Pressure / RatingPN1G
StandardBS EN ISO 17292
End ConnectionFlanged
VTM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Product StandardBS EN ISO 17292
Pressure/Class RatingPN1G
Port OpeningFull Bore
Body Material / StandardCast Iron (IS 210 Gr. FG220)
BallStainless Steel (AISI-202)
StemStainless Steel (ASTM A276 Gr. 410)
Seat Ring & Gland PackingVirgin PTFE
End DetailsFlanges Drilled to ASME B16.5 #150 BS 10 Table D/E & BS 1092 PN10/16
Test PressureShell: 24.5 Kg/cm² Hyd.
Seat18.0 Kg/cm² Hyd. 7 Kg/cm² Air.
