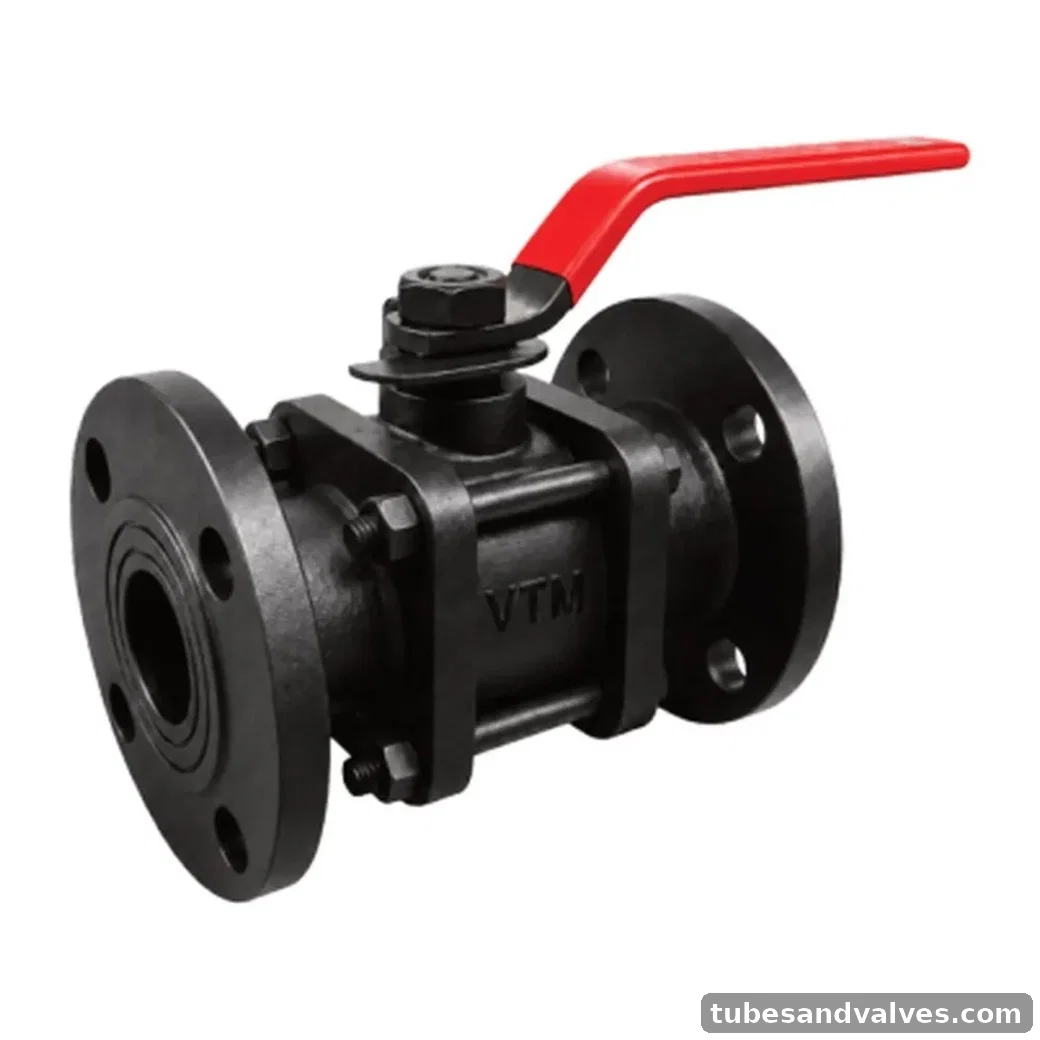

VTM VA-4 C.I. BALL VALVE 3PC. DESIGN F/E
VTM VA-4 C.I. BALL VALVE 3PC. DESIGN F/E. C.I. BALL VALVE 3PC. DESIGN F/E. Rating: Class 125. Body/material: Cast Iron. End connection: Flanged.
Available Size / Variant
Confirm size with quotation
Brand / MakeVTM
Catalogue ModelVA-4
Product FamilyBall Valve
MaterialCast Iron
Pressure / RatingClass 125
StandardIs: 9890
End ConnectionFlanged
VTM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Product StandardIs: 9890
Pressure/Class RatingClass 125
Port OpeningFull Bore
Body Material / StandardCast Iron (IS 210 Gr. FG220)
BallStainless Steel (AISI-202)
Stem13% Cr. SS (ASTM A276 Gr. 410)
Seat Ring & Gland PackingVirgin PTFE
End DetailsFlanged Drilling as per ASME B16.5 #150 BS 1092 PN10/16 & BS 10 Table D/E/F
Test PressureShell: 24.5 Kg/cm² Hyd.
Seat18.0 Kg/cm² Hyd. 7.0 Kg/cm² Air
